SIPOS

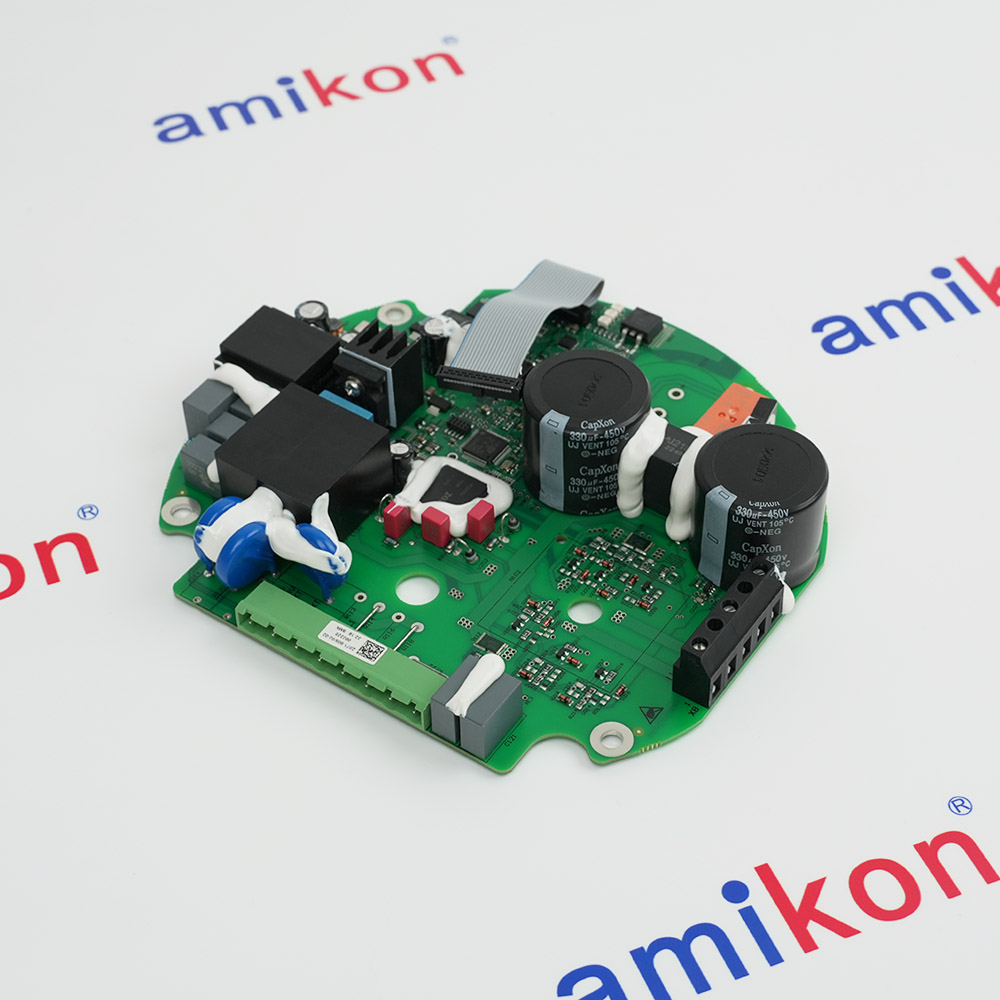

Electric actuator power board

3-Phase AC: 380V–690V AC
Current Rating: 10A peak
DC Bus Voltage: 540V–930V DC
Switching Frequency: 8kHz PWM
Logic Voltage: 24V DC

Electronic card

3-Phase AC: 380V–690V AC
Current Rating: 10A peak
DC Bus Voltage: 540V–930V DC
Switching Frequency: 8kHz PWM
Logic Voltage: 24V DC

Power board

Voltage Range: 50/60Hz
Single-Phase Option: 230V AC
Current Rating: Up to 5A continuous
Inrush Current: ≤20A
Frequency: 0–400Hz
Logic Voltage: 24V DC

Electric actuator power board

Standard: 24V AC/DC ±10%
Optional: 110V AC
Power Consumption: ≤25W
Digital Inputs:24V DC
Analog Inputs:4-20mA / 0-10V
Relays Outputs:5A, 250V AC
Analog Outputs:4-20mA

Electric Actuator Control Panel

Standard: 24V AC/DC ±10%
Optional: 110V AC
Power Consumption: ≤25W
Digital: 24V DC

Electric actuator Economic motherboard

Supply Voltage: 24V AC/DC ±10%
Power Consumption: <15W typical
Digital inputs:24V DC
Analog inputs:4-20mA/0-10V optional

Relay control board

Operating Voltage: 24V DC
Operating Temperature: -20°C to +70°C
torage Temperature: -40°C to +85°C
Relay Type: Multi channel relay, supporting control of multiple devices
Contact Rating: Typically ranging from 5A to 10A, suitable for various industrial current loads
Contact Voltage: Supports 24V DC or 110-230V AC operating voltage
Supported Signal Voltage: Typically 24V DC

Electric Actuator Control Panel

Voltage: 24V AC/DC ±10%
Frequency: 50/60Hz
Power Consumption: ≤20W
Analog:4-20mA
Digital: 24V DC
