Allen-Bradley PLC-5

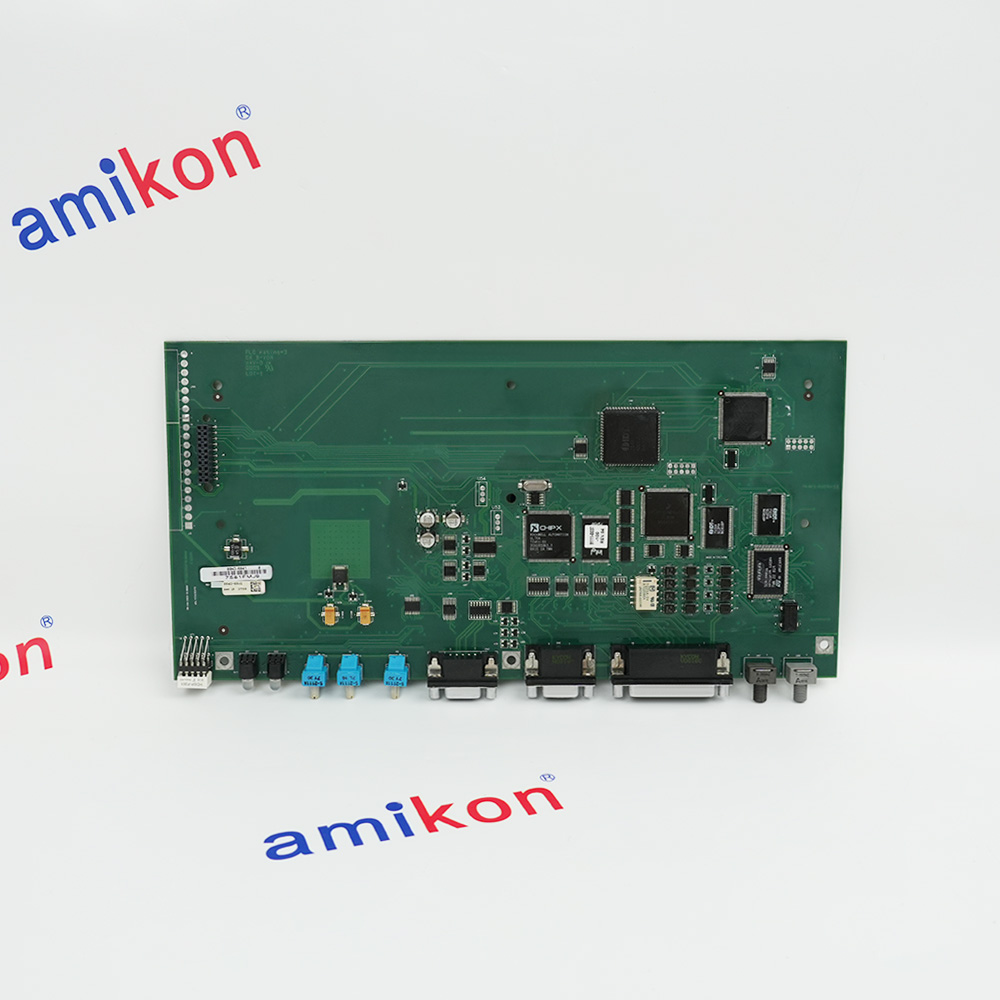

Control board

Control board
PC BOARD
WITH MULTIPORT

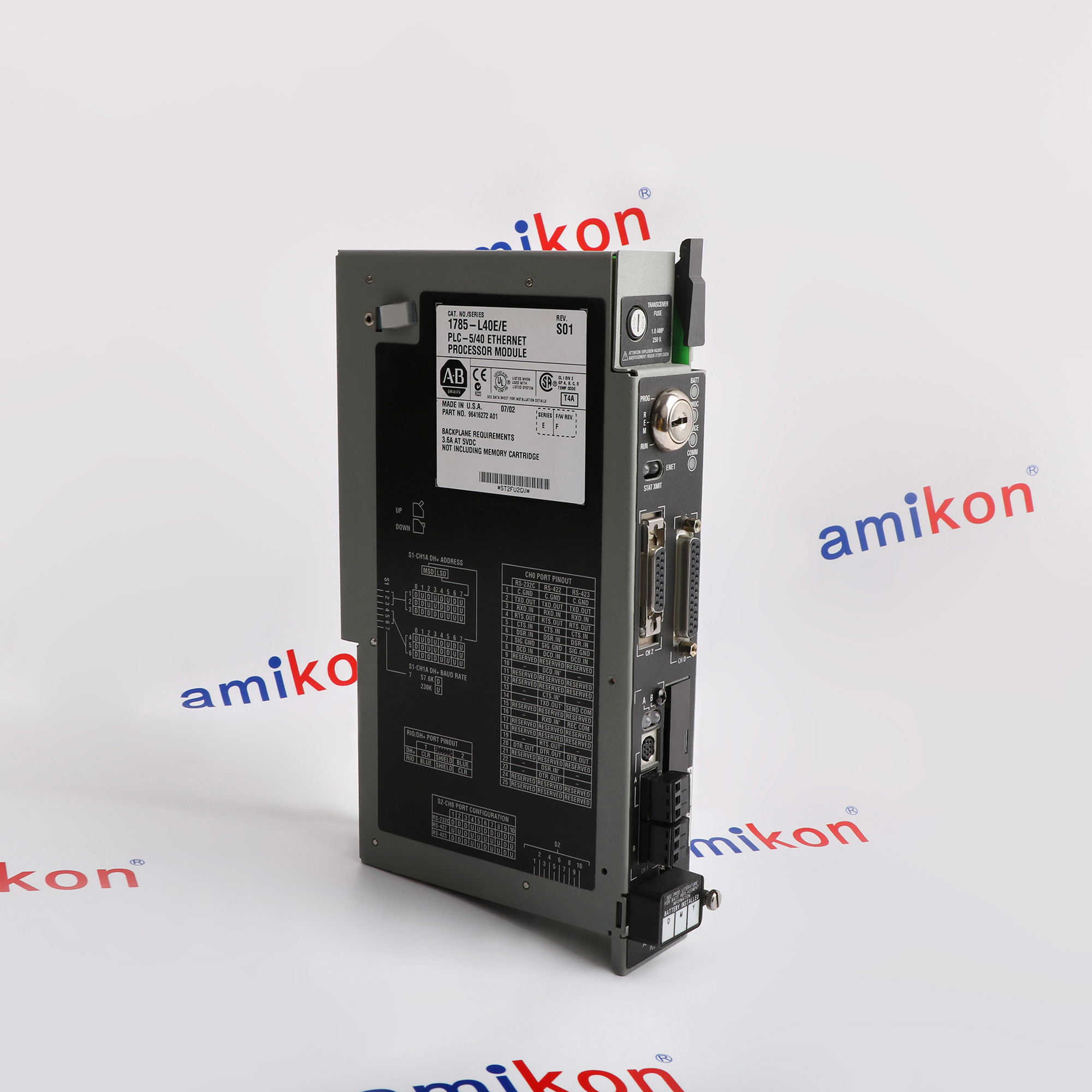

PROCESSOR MODULE

PROCESSOR MODULE
PLC-5/40 CPU
48 K WORD SRAM
ETHERNET
DH+ / REMOTE I/O
RS-232-C / 422A / 423A

Inverter Control Board

Inverter Control Board
Input Control Signals:0–10 V or 4–20 mA
Power Regulation: 600–1200 V DC link
Current Handling:50–100 A
Switching frequency range: 1–6 kHz
Operating Temperature: 0–60°C

Circuit Board

Power Input: 24V DC internal
Input Ranges:0–10 V DC / 4–20 mA
Resolution: 12-bit or 16-bit
Digital I/O: 120V AC
Temperature Range: 0–60°C

COMMUNICATIONS MODULE

Product Type:Gas & Liquid Flow Computer
Slot(s):1
Rack Type:Local or Remote
Data Transfer Type:Ladder Logic
RAM:128 MB min
Hard Drive Space:100 MB min
Pentium PC:100 mHz or faster
Backplane Current Load:800 mA @ 5V DC

ControlNet adapter module

Module Type:I/O Adaptor Module
Power Dissipation:5 Watts
Backplane Current (at 5 Volts):1.0 Amperes
Thermal Dissipation:17.06 BTU/hr
Upper Connector Keying:54-56
Lower Connector Keying:16-18
Operating Temperature:32-140 F (0-60 C)
Storage Temperature:-40-185 F (-40-85 C)

Digital input module

Series:POINT I/O
Module Type:DC Configurable I/O Module
Input/Outputs:8
Input Voltage (min):11 Volts DC
Input Current:2-5 milliamps
Mounting:DIN rail
Enclosure:Open
Operating Temperature:-20 to 55 Celsius

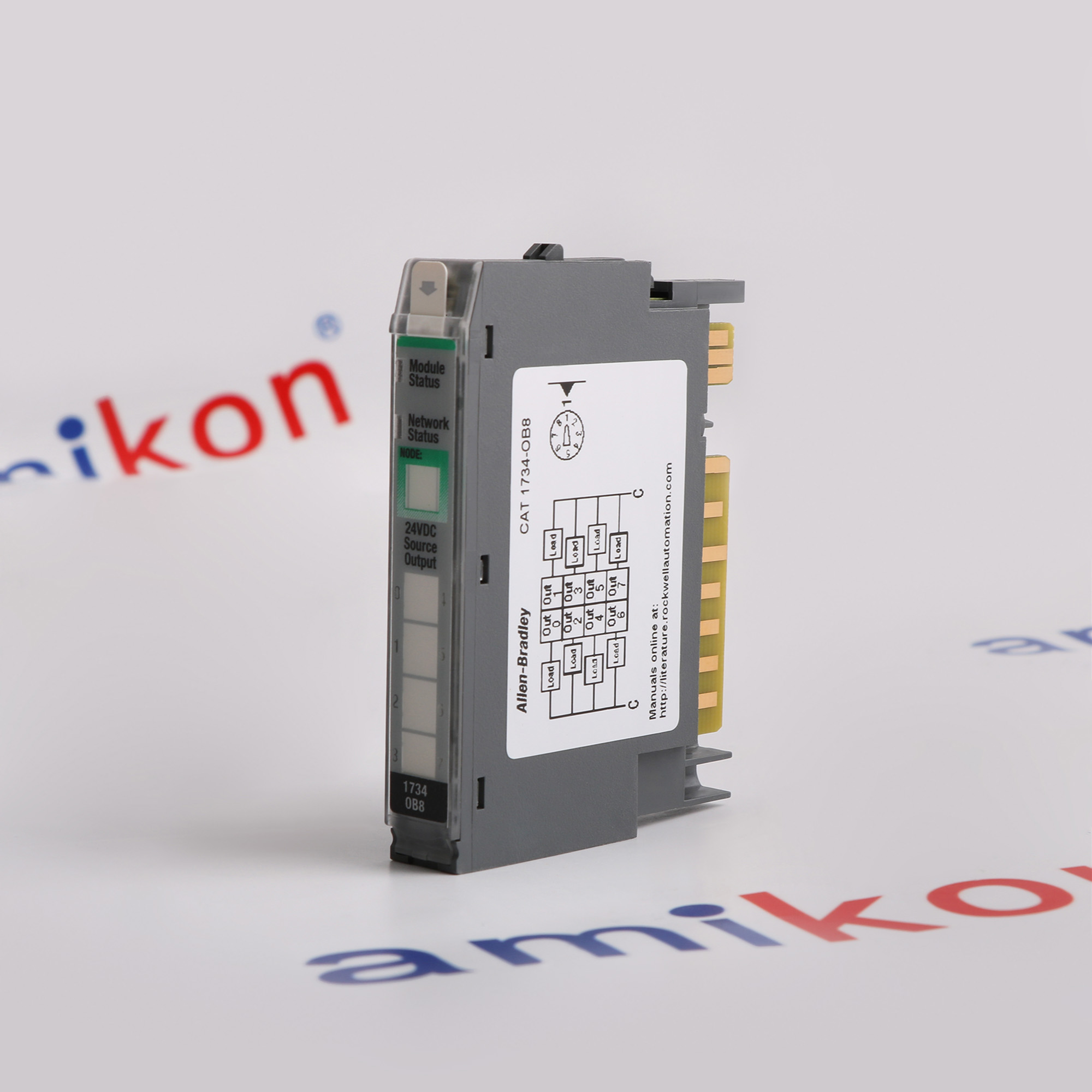

POINT I/O module

Power Dissipation:2.0 Watt/6.8 BTU/hour
POINTBus Current:75 mA
Output Voltage:24 Volts DC
Module Type:Digital DC Sourcing Output
Series:POINT I/O
Part Number/Catalog No.:1734-OB8
No. of outputs:8; Sourcing output
Output Voltage range:10-28.8VDC

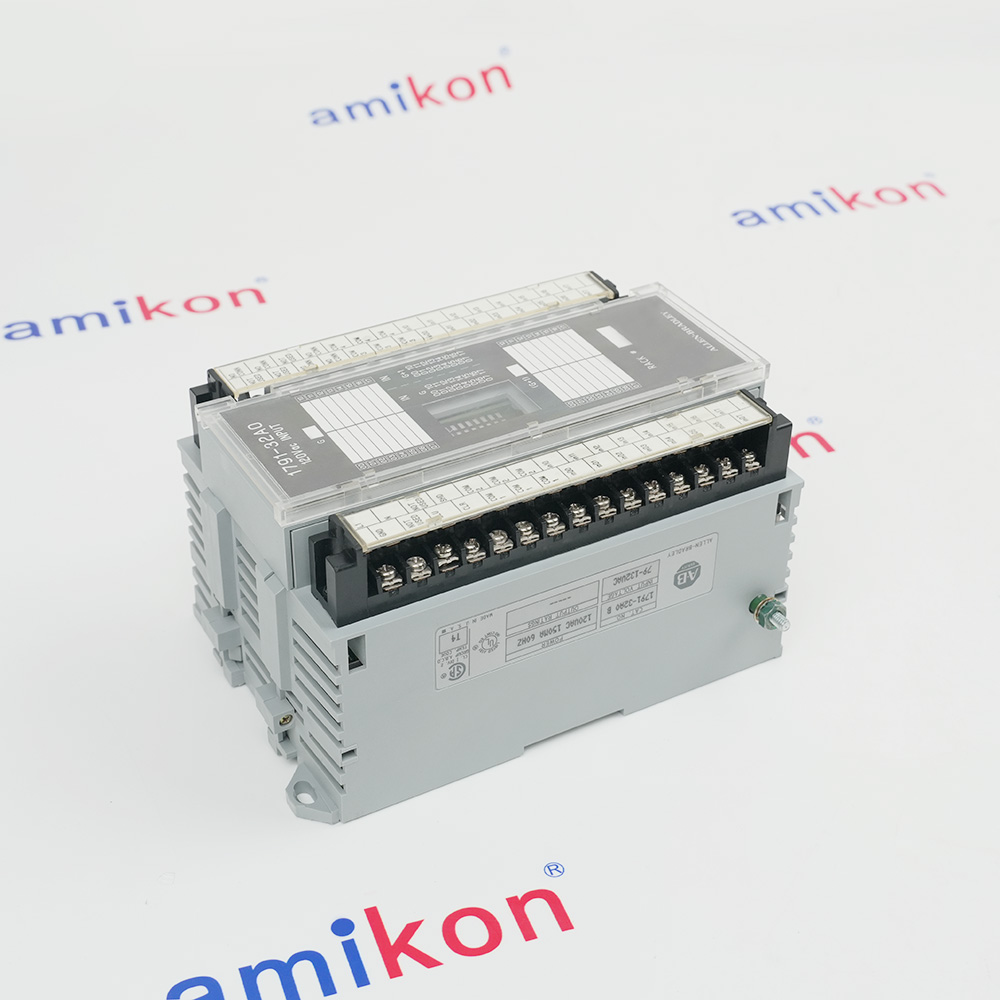

Discrete Input module

Module Type:Digital AC/DC Input Module
Number of Inputs:8 Inputs
Voltage Category:120 Volts AC/DC
Compatible Chassis:1771-AB thru 1771-A4B
AC Operating Voltage:87-138 Volts
DC Operating Voltage:97-138 Volts
Backplane Current:75 Miliamperes

Remote Access Dial-In Data/Fax Modem

REMOTE ACCESS DIAL-IN DATA/FAX MODEM
V.90 COMPATIBLE
EXTERNAL
WITH 1 X RS-232 INTERFACE
24 VDC POWER

Distance Fiber Module

Fiber Type:200/ 230 micron HCS (hard-clad silica) fiber
Fiber Operating Wavelength:650 nm (red)
Attenuation Levels:4.2 dB
Input Power:5V DC
Typical Repeater Distance:0-300m
Backplane Current Draw:300 mA
Product Line:ControlNet Repeater
Repeater Type:Repeater Short-Distance Fiber Module

Point I/O module

Series:POINT I/O
Module Type:Serial Interface Module
Key Switch Position:2
Voltage Range:10-28.8 volts DC
Supply Voltage:24 volts DC nominal
Supply Current:15mA at 24 volts DC

POINT I/O Terminal Module

Part Number/Catalog No.:1734-CTM
Series:POINT I/O
Module Type:Terminal Module
Isolation Voltage:250 Volts Continuous
Field Power Supply:1-28.8 Volts DC or 12/240 Volts AC
Field Power Supply Current:4 amps/module

Guard Locking Proximity Inputs Safety Relay

Product Type: Safety Relay
Model Number: 440R-GL2S2P
Series: Guardmaster
Input Voltage: 24V DC
Voltage Tolerance: -15% to +10%
Current Consumption: Approx. 200mA
Power Consumption: Typically 4.8W
Relay Output Type:
Safety Outputs: 2 NO
Auxiliary Outputs: 1 NC

Analog output module

Series:PLC series
Data Format:BDC or Natural Binary
No. of channels:Four (4) isolated channels
Output signal:+/- 10 VDC
Voltage Range:1-5 V dc, 0-10 V dc, +/- 10 V dc
Output signal ranges:+1 to +5 VDC; -10 to +10 VDC and 0 to +10 VDC
Current Range:N/A
Module resolution:12 bits
Backplane Current:1.5 Miliamperes

power supply module

Nom Input Voltage:220 Volts AC
Input Voltage Range:194-264 Volts AC
Max Real Input Power:56 Watts
Max Apparent Input Power:89 VA
Max Xformer Load:140 VA
User Output Current:N/A
Backplane Output Current:8 Amperes (at 5 Volts DC)
Frequency:47-63 Hertz

DeviceNet Scanner Module

Module Width:Single Slot
Compatible controllers:SLC 5/02 or later
Pass through:Supported
Communication Port:One (1) DeviceNet
Data Transfer speed:125Kbps
Storage Temperature:-40 to 85 C (-40 to 185 F)
Vibration:Tested 5 g @ 10-500Hz per IEC 68-2-6
Operating Shock:30 g peak acceleration, 11(+1)ms pulse width
Series:SLC 500
Module Type:DeviceNet Scanner Module
Scan I/O:Yes
Backplane Current (5 Volts):500 milliamps

POINT I/O Analog Input Module

Series:POINT I/O
Module Type:Analog Input Module
Inputs:2 single-ended, non-isolated, voltage
Signal Type:Voltage
Conversion Type:Delta Sigma
Absolute Accuracy:0.1% Full Scale @ 25 °C (77 °F)
Data format:Signed Integer
Key Switch Position:3
Enclosure Type Rating:Open

DC-powered sink output module

Module Type:Digital DC Output Module
Number of Outputs:32 (4 sets of 8) Outputs
Voltage Category:10-32 Volts DC, Sink
DC Operating Voltage:10-30 Volts
Backplane Current:330 Miliamperes
Max Continuous Current Per Output:0.5 Amperes
Max Continuous Current Per Module:8 Amperes
Wiring Arm:1771-WH
Coating:Conformal Coat
Typical AC Signal Delay (Off):45 (+/- 15) ms

POINT I/O Safety I/O Module

Series:POINT I/O 1734
Module Type:Safety I/O Module
Outputs:8-Point
Supply Voltage:24 Volts DC
Enclosure:Open
Output Current:8A
Power Dissipation:4.5 Watts

POINT I/O Terminal Base

Part Number/Catalog No:1734-TB
Series:POINT I/O
Module Type:Terminal Base
Positions:8
Clamp Type:Cage-Clamp RTB

Enhanced Information Processor CPU Module

1771-P4R Cable

Connector Module

Interface Module - Intelligent Panel System
