3500 System

Vibration Transmitter

05 0-5 mils pp (0-125 μm pp)
50 5.0 meters (16.4 feet)
01 35 mm DIN rail clips
01 CSA Division 2

Thrust Transmitter

25 25-0-25 mils
50 5.0 meters (16.4 feet)
01 35 mm DIN-rail clips
01 CSA Division 2

Proximity ProbeHousing Assemblies

16 3300 XL 8mm probe
05 0.5 m (20 in)
15 Minimum length 1.5 in (38 mm)
03One 3/4-14 NPT plug
One 3/4-14 to 1/2-14 NPT reducer
One cable seal grip with grommets for
the following cable sizes:
1/8 to 3/16 inches
1/4 to 5/16 inches
5/16 to 3/8 inches
02 3/4-14 NPT

Transient Data Interface

01 Standard (use for standard monitoringapplications)
01 10Base-T/100Base-TX Ethernet
Consumption 10.5 Watts
Front Panel USB-B
MaximumCurrent<1 mAdc
Dry Contact toCommon
OperatingTemperature-30°C to +65°C (-22°F to+149°F)
StorageTemperature-40°C to +85°C (-40°F to+185°F)
Humidity 95%, non-condensing

Gas Detection Monitor

Power Consumption: 7.0 Watts, typical
External transducerPower+24 Vdc +4
-2 Vdc @ 1.8 AMinimum
Voltage +5 Vdc typica
Current 0.4 mA typical, 4 mA peak
OperatingTemperature:-30°C to +65°C

Process Variable Monitor

Inputs Signal -10 Vdc to +10 Vdc
Barrier I/O:4-20 mA DC
 Isolated I/O:4-20 mA DC
Voltage Compliance:13.66 V
Isolation:500 Volts
Power Consumption: 7.0 Watts, typica
External transducerPower:+24 Vdc. +/- 5% @ 250mA max. Fused

Process Variable Monitor

Inputs Signal -10 Vdc to +10 Vdc
Barrier I/O:4-20 mA DC
 Isolated I/O:4-20 mA DC
Voltage Compliance:13.66 V
Isolation:500 Volts
Power Consumption: 7.0 Watts, typica
External transducerPower:+24 Vdc. +/- 5% @ 250mA max. Fused.

General Purpose Equipment Monitor

01 110 to 220 Vac @ 50 to 60 Hz (externalsupply)
00 No display
03 Fiberglass NEMA 4X/IP66 WP housingwith window in door
00 None
00 None
EQUIPMENT MONITOR
GENERAL PURPOSE
1900/65A SERIES

DC Power Supplies

Input voltage 20 to 30 Vdc
Low Voltage DC Power Supply
Legacy Low Voltage DC PowerSupply Module
SupplyOK LEDIndicates when
the power supply isoperating properly
Operatingtemperature -30 °C to +65 °C-22 °F to +150 °F
Storagetemperature -40 °C to +85 °C-40 °F to +185 °F
Humidity 95%, non-condensing

DC Power Supplies

Universal AC Power
High Voltage DC Power Supply
Low Voltage DC Power Supply
Inputvoltage 20 to 30 Vdc
Highvoltage DC 2.5 A (maximum)
Operatingtemperature-30 °C to +65 °C-22 °F to +150 °F
Storagetemperature-40 °C to +85 °C-40 °F to +185 °F
Humidity 95%, non-condensing

System Rack

01 19-inch Rack (14 module slots)
02 Rack Mount Option, Full-Size Rack
(mounts to19-inch EIA Rack)
01 CSA/NRTL/C (Class 1, Division 2)
00 None
01 CE
The 3500/05 mini-rack is not available
in theBulkhead Mount option.

Temperature Monitor

Accepts from 1 to 16 signals
Input impedance: Greater than 1 MΩ
Power consumption: 3 watts
Front panel LEDs: OK, TX/RX, Bypass
Type E, J, K, T thermocouples
100 Ω 3-wire and 4-wire platinum RTD

4-Channel Relay Module

PowerConsumption 5.8 Watts typical
EnvironmentalSealing Epoxy-sealed
Arc Suppressor 250 Vrms, installed asstandard
Contact Life 100,000 cycles @ 5 A, 24 Vdcor 240 Vac
OperatingTemperature-30°C to +65°C(-22°F to +150°F)
StorageTemperature-40°C to +85°C(-40°F to +185°F)
Humidity 95%, non-condensing
Minimum switchedcurrent 100 mA @ 12 Vdc

System Display

Local or Remote Visual Indication
of 3500 Machinery Protection System
(4) Display Mounting Types
Up to (2) Displays per 3500 Rack
Input Signal: -10 Vdc to +10 Vdc
Power Consumption: 10.5 watts
Product Type: System Display Interface I/O Module
Ethernet: 100Base-FX Fiber-Optic
Operating Temperature -30°C to +65°C (-22°F to+150°F)

Rack Interface Module

PowerConsumption 4.75 watts, typical
Standard RS232 serial communications
Data Rate 38.4 k baud.
RS232 30 metres (100 feet) maximum
RS422 1200 metres
Communications Hayes AT-compatible
Baud Rate 14.4 k baud maximum
OperatingTemperature -30°C to +65°C

Proximitor Monitor

Signal Accepts from
1 to 4 proximitytransducer signals
Powerconsumption 7.7 Watts, typical
Standard I/O10 kΩ
Gap filter -3 dB at 0.09 Hz
Smax 0.125 to 15.8 times runningspeed
Direct filterUser-programmable
Single-pole4 Hz to 4000 Hz or1 Hz to 600 Hz

VGA Display Monitor

Powerconsumption 4.6 watts max.
High-speednetworkMonitor status, data andvalues
RS232 port(I/0) Touch controller data
OK LED Indicates proper operation ofthe module
TX/RX LEDIndicates
communicationsbetween other systemmodules
VGA port(I/O)Analog red, green,
blue andsync signals to the display
Front Port 24 Vdc Power out,
VGA signalout, Touch commands in.

Proximitor Monitoris

Signal Accepts from
1 to 4 proximitytransducer signals
Powerconsumption 7.7 Watts, typical
Standard I/O10 kΩ
Impedance 550 Ω
TransducerPowerSupply-24 Vdc
Gap filter -3 dB at 0.09 Hz
Direct filter -3 dB at 1.2 Hz

Velomitor CT

Sensitivity 3.94 mV/mm/s (100 mV/in/s)±5%.
TemperatureSensitivity-8% to +5%
AmplitudeLinearity±2% to 63.5 mm/s pk
MountedResonantFrequency9 kHz, minimum
DynamicOutputImpedance<400 Ω typical
BroadbandNoise Floor 0.229 mm/s (0.009 in/s) pk.
OperatingTemperature-40 °C to +85 °C
StorageTemperature-40 °C to +100 °C
Shock Limit 5000 g pk, maximum.
HumidityLimit100% condensing

Vibration Transmitter

10 0-10 mils pp (0-250 μm pp)
70 7.0 meters (23.0 feet)
01 35 mm DIN rail clips
00 Not required
Operating temperature
-35°C to +85°C(-31°F to +185°F)
Storage temperature
-52°C to +100°C(-62°F to +212°F).
Probe Cable 75Ω coaxial,
fluoroethylenepropylene (FEP) insulated

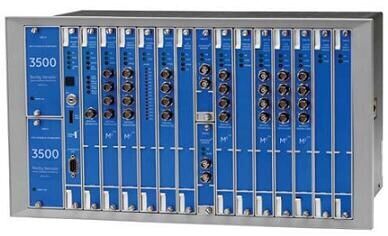

System Rack

Holds All 3500 Monitor Modules
Rack Power Supplies
Manufactured in (2) Sizes:
Full-Size Rack and Mini-Rack
Manufactured in (3) Formats:
Panel Mount, Rack Mount, and Bulkhead Mount
7 or 14 Rack Postitions

VIBRATION MONITOR

VIBRATION MONITOR
SINGLE CHANNEL
ADJUSTABLE TIME DELAY ALARM
60MA
110VAC
50/60HZ

Standard Interconnect Cables

Model: 9571 - Interconnect Cables
Cable length option in feet: -32 - 32 ft
Input : Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
Requires +12 to +35 Vdc input at the transmitter terminal.
Maximum Loop Resistance : 1,000 Ω including cable at 35 Vdc.

Vibration Transmitter

0 4 - 0-4 mils pp (0-100 μm pp)
5 0 - 5.0 metres (16.4 feet)
0 1 - 35 mm DIN rail clips
0 0 - Not required
Input : Accepts 1 non-contacting 3300 NSv Proximity Probe and extension cable.
Requires +12 to +35 Vdc input at the transmitter terminal.
Maximum Loop Resistance : 1,000 Ω including cable at 35 Vdc.

Tachometer Module

350050
DISCONTINUED BY MANUFACTURER
TACHOMETER MONITOR MODULE
4 CHANNEL
