Invensys

Digital Output Baseplate

I/O Baseplate
I/O Interconnect Assembly
Slot Cover
Terminal Cover
Muber of Chanels: 24
Output Current: 2A
Output Voltage: 24VE
CA per channel
Power Consumption:20w

Digital Input Module

Points:4, commoned-return, DC-coupled
Output current range:
4–20 mA output, controlled
0–22 mA over-range
0 mA output capability (step function <2 mA)
Type:TMR
Resolution:12 bits
Diagnostic:Forced-switch diagnostic (FSD)
Over-range protection:36 V DC, continuous

Digital Input Module

Points:32, commoned
Nominal input voltage:24 V DC
Operational voltage range:15–30 V DC
Absolute maximum input voltage:33 V DC
Absolute maximum reverse input voltage:–0.6 V DC
Input delay:<10 ms, On to Off or Off to On
ADC scan time:<1 ms for all 32 points

Digital Output Module

Points:16, commoned
Nominal output voltage:24 V DC
Operational voltage range:15–30 V DC
Absolute maximum output voltage:33 V DC
Absolute maximum reverse input voltage:–0.6 V DC
Leakage to load (Off-state):<1 mA
On-state voltage drop:<1 V DC @ 1.5 A
Loop-back scan time:<1 ms for all 16 points

ANALOG INPUT MODULE

Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)
Scan time:<1 ms for all 32 points

Analog Input Module

Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum reverse field voltage:– 0.6 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)

Digital Input Module

Points:32, commoned
Nominal input voltage:24 V DC
Operational voltage range:15–30 V DC
Absolute maximum input voltage:33 V DC
Absolute maximum reverse input voltage:–0.6 V DC
Input delay:<10 ms, On to Off or Off to On
ADC scan time:<1 ms for all 32 points

Analog Output Module

Type:TMR
Resolution:12 bits
Diagnostic:Forced-switch diagnostic (FSD)
Points:4, commoned-return
Output current range:4–20 mA output, controlled
External loop power:32 V DC, maximum24 V DC, nominal

Digital Output Module

Points:16, commoned
Nominal output voltage:24 VDC
Specified operational voltage range:15 to 30 VDC
Absolute maximum output voltage:33 VDC
Absolute maximum reverse input voltage:– 0.6 VDC
Leakage to load (Off state):<1 mA
Diagnostic glitch duration <2 ms, maximum:500 Ps, typical
On state voltage drop:<1.0 VDC @ 1.5 A

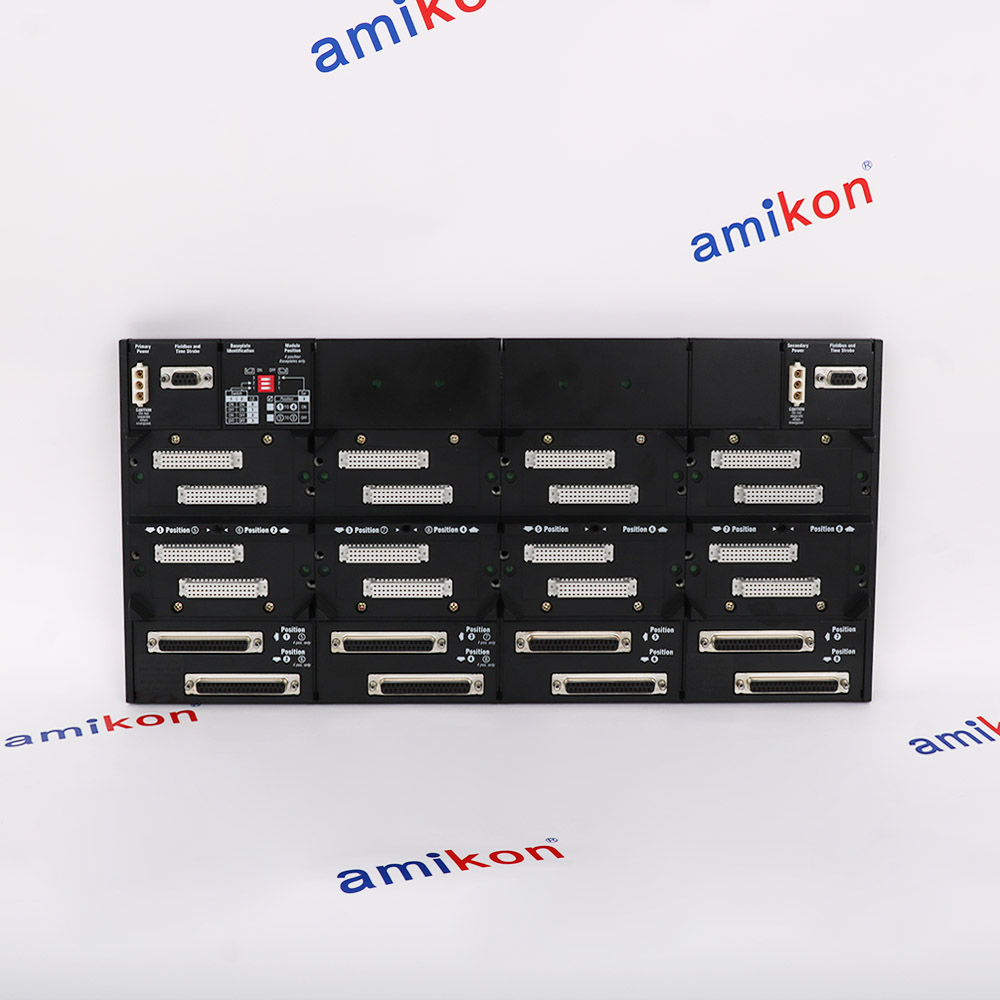

BASEPLATE

BASEPLATE
ANALOG I/0 MODULE
W/HEAT SINK
Supports 8/16-channel analog I/O modules

Communication Module

Communication Protocol:Modbus TCP/IP, DeviceNet
Data Rate:Up to 1 Mbps
Power Consumption:L ess than 4W
Operating Temperature:-40C to +70°C
Mounting Type:Panel Mount

COMMUNICATION MODULE

Input Voltage: 24 V DC
Range: 18–32 V DC
Power Consumption: Typically ≤ 10 W
Isolation Voltage: 1500 V AC
Serial Ports: RS-232/RS-485 (configurable).
Ethernet: 10/100 Mbps RJ45 (TCP/IP)
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Storage Temperature: -50°C to +85°C (-58°F to +185°F)

Digital input module

Input Type:24V DC
Number of Channels:16 channels per module
Input Voltage Range:ON State: 15–35V DC
OFF State: 0–5V DC
Input Current: Typical: 3–7 mA
Update Rate: ≤ 10 ms
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Storage Temperature: -40°C to +85°C (-40°F to +185°F)

4 Channel Relay Output Module

Channel-to-Channel: 1500 VAC
Field-to-System: Reinforced isolation :2500 VAC
Per Channel: 1–2 W
Total: ≤ 8 W
Operating Temperature: -40°C to +70°C (industrial-grade)
Storage Temperature: -50°C to +85°C
Humidity: 0–95% (non-condensing)

Pulse Input Module

8 pulse input channels
Voltage Range: 5–30 V DC
Standard: 0–10 kHz
Frequency Measurement: ±0.01% of reading
Channel-to-Channel Isolation: ≥ 1500 V AC/DC
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Storage Temperature:
-40°C to +85°C (-40°F to +185°F)
Humidity:
0–95% non-condensing

Pulse Input Baseplate

Frequency/Rate: Up to 10 kHz
Voltage Range: 5–30 V DC
Counting Resolution: 24-bit
Frequency Accuracy: ±0.01%
Channel-to-channel isolation: ≥ 1500 V AC/DC
Field-side Power: 24 V DC
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Storage Temperature:
-40°C to +85°C (-40°F to +185°F)

USB annunciator/numeric keyboard

Power Requirements 5 VDC, ± 5% a
USB Annunciator Keyboard: 300 mA (max)
Output Impedance: 1200 Ohms Nominal
Nominal Level: 0.437 to 0.133
Peak to Peak Amplitude, Vpp: 0.872
Operating Temperature 0 to 40°C (32 to 104°F)
Storage Temperature -40 to +70°C (-40 to 158°F)
Humidity range, storageand operating:
20% to 80%, non-condensing

Communication module

Serial ports : 4
Network ports : 2
Port isolation : 500 VDC
Copper Ethernet ports : 10/100 Mbps
(Model 4353 supports only 100 Mbps)
Fiber Ethernet ports : 100 Mbps
Serial ports : up to 115.2 Kbps per port

DNBT Dual Nodebus Module

Series: Foxboro I/A Series
Power Supply: Typically 24V DC
Operating Temperature:  0°C and 60°C
Storage Temperature:  -20°C and 70°C
Humidity: 5% and 95%  (non-condensing)

NODE BUS INTERFACE MODULE

Highly Intuitive Design Environment
Graphical Configuration
Live Updating Loop Drawings
One-Spot Engineering Environment
Common Database Integrating System,
Control, Display and Field Device
Configuration in One Tool

POWER CABLE

24 VDC
POWER CABLE
28" - LAMBDA
P/N - P0916GX

I/O Bus Cable

4000056002
I/O Bus Cable
Operating Temperature Range:  -40°C to +70°C
Insulation Material: PVC
CABLE ASSEMBLY 6FEET

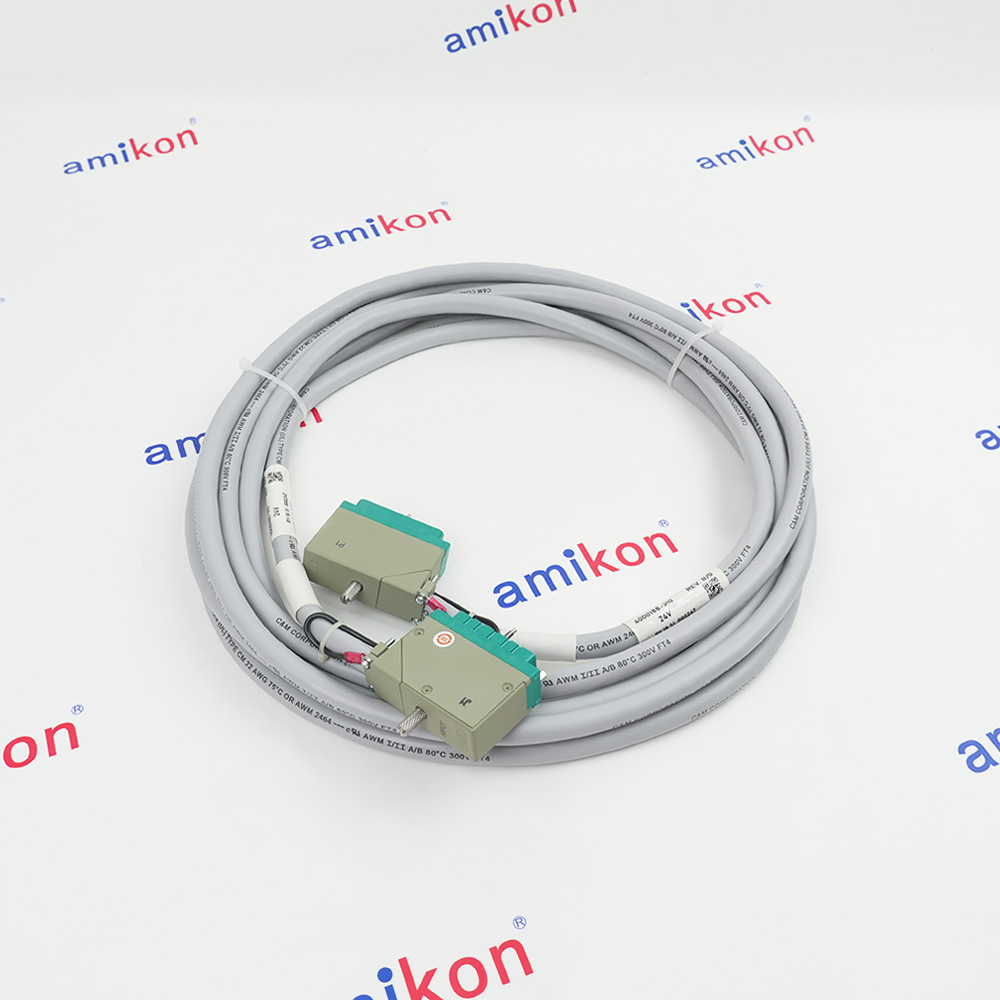

TERMINAL CABLE

TERMINAL CABLE
CABLE ASSEMBLY
FBM2XX
TYPE 4
3M LENGTH

Term Cable

FBM 2xx
TYPE 1
TERM CABLE
3 METERS
P/N - P0916DC

I/O ALARM MODULE

I/O ALARM MODULE
TRISEN TURBOSENTRY
16 DIGITAL OUTPUTS
OPERATING VOLTAGE: 24V DC
OPERATING TEMPERATURE RANGE: -40C TO 70C
DIMENSIONS: 12.5 X 4.5 X 5.5 INCHES
