Allen-Bradley ControlLogix

ControlLogix Integrated Motion module

Gain Resolution:32- bit floating point
Servo output Type:Analog Voltage
Voltage Range:±10V dc
Analog output resolution 16 bits
Discrete outputs:Solid-state isolated relay contacts
Discrete output operating voltage:24VDC, Nominal.
Axes per Module:2
Axes per Controller:32
Backplane Current (5Volts):700 milliamps
Backplane Current (24Volts):2.5 milliamps

ControlLogix Discrete output module

Outputs:8
Module Type:Digital AC Output Module
Voltage:120-240 Volts AC
Voltage Category:120 / 240 Volts AC
Operating Voltage Range:74-265 Volts AC
Current per point:0.5 A @ 60 °C (140 °F)
Current per group, max:2 A @ 60 °C (140 °F)
Backplane Current at 5 Volts:200 mA
Isolation Voltage:50 Volts Continuous
Power Dissipation:(Max) 5.1 W @ 60 °C (140 °F)
Backplane Current at 24 Volts:2 mA

SIL 3 PLe Safety Partner

PLC CONTROLLER
GUARDLOGIX
SAFETY PARTNER
EXTREME ENVIRONMENT
CHASSIS MOUNT
-25 TO 70 DEGREES C

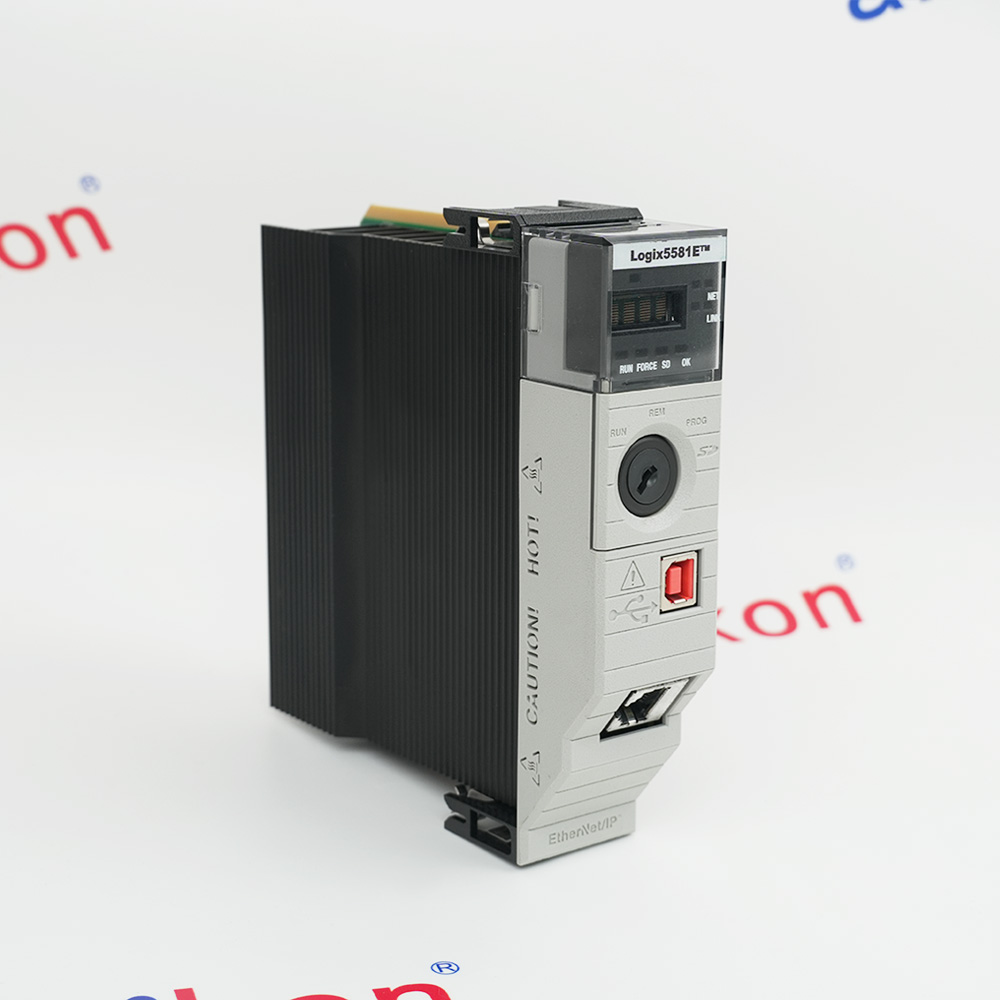

ControlLogix Processor Module

Series:ControlLogix
Module Type:Processor Module
I-O Memory:0.98 MB
User Memory:8 MB
Maximum I-O:128,000
Maximum Analog I-O:4,000
Maximum Digital I-O:128,000
Current Draw (1.2 Volts DC):5 milliamps
Current Draw (5.1 Volts DC):800 milliamps
Power Dissipation:2.5 Watts
Thermal Dissipation:8.5 BTU per hour
Isolation Voltage:30 Volts Continuous

GuardLogix Controller

Series:ControlLogix
Module Type:GuardLogix Controller
I-O Memory:0.98 MB
User Memory:4 MB
Maximum I-O:128,000
Maximum Analog I-O:4,000
Maximum Digital I-O:128,000
Current Draw (1.2 Volts DC):5 Miliamperes

ControlLogix Processor Module

Series:ControlLogix
Module Type:Processor Module
I-O Memory:0.98 MB
User Memory:2 MB
Maximum I-O:128,000
Maximum Analog I-O:4,000
Maximum Digital I-O:128,000
Current Draw (1.2 Volts DC):5 Miliamperes

GuardLogix Controller

Series:ControlLogix
Module Type:GuardLogix Controller
Current Draw (1.2 Volts DC):5 milliamps
Current Draw (5.1 Volts):802 milliamps
Power Dissipation:2.5 Watts
Thermal Dissipation:8.5 BTU per hour
Isolation Voltage:30 Volts Continuous

Armor ControlLogix Controller

Standard Memory:4 Megabytes
I/O Memory:0.98 Megabytes
Max Total I/O:128,000
Max Analog I/O:4000
Max Digital I/O:128,000
Ethernet Ports:4 Ethernet M12 Category 5E
USB Ports:USB 1.1 Full Speed (12 Mbps)
Nom Input Voltage:24 Volts DC
Input Voltage Range:18-32 Volts DC
Enclosure Type:UL Type 4/4x

ControlLogix Jumper Bars

BAR JUMPER
CONTROLLOGIX
FOR 36 PIN TERMINAL WIRING BLOCKS
25 PER PACKAGE

Digital Isolated Input Module

Series:ControlLogix
Inputs:16 Individually Isolated; SOE
Input Voltage:125 Volts DC Sink-Source
Operating Voltage Range:90-140 Volts DC
Maximum Input Current, Off-State:0.3 milliamps
Power Dissipation (Max):5.5 Watts at 60 degrees Celsius
Module Type:Digital Isolated Input Module Series of Events

Diagnostic Input Module

Series:ControlLogix
Module Type：Diagnostic Input Module
Inputs:8 Diagnostic
Input Voltage:120 Volts AC
Operating Voltage Range:79-132 Volts AC
Input Delay Time:Programmable 9 or 18 milliseconds
Minimum Operating Current:5 milliamperes at 79 Volts AC
Maximum Operating Current:16 milliamperes at 132 Volts AC
Maximum Input Current, Off-State 2.5 milliamperes

ControlLogix Discrete output module

Outputs:16-Points
Module Type:Digital AC Output Module
Voltage:120-140 Volts AC
No. of Outputs Sixteen (16) mechanically fused
Voltage Category:120 / 240 Volts AC
Operating Voltage Range:74-265 Volts AC
Backplane Current at 5 Volts:400 mA

Generic Servo Interface Module

Series:ControlLogix
Module Type:Generic Servo Interface Module
Axes per Module:8
Axes per Controller:32
Backplane Current (5Volts):760 milliamps
Backplane Current (24Volts):2.5 milliamps
Power Dissipation:6.2 Watts
SERCOS Data Rate:4 or 8 Megabits-Second
Current Draw (5.1 Volts):1.2 amps
Thermal Dissipation:21.2 BTU-hour
Isolation Voltage:50 Volts Continuous

Armor ControlLogix Controller

Series:ControlLogix
Module Type:Armor ControlLogix Controller
Standard Memory:4 Megabytes
I/O Memory:0.98 Megabytes
Max Total I/O:128,000
Max Analog I/O:4000
Max Digital I/O:128,000
Ethernet Ports:4 Ethernet M12 Category 5E
USB Ports:USB 1.1 Full Speed (12 Mbps)
Nom Input Voltage:24 Volts DC
Input Voltage Range:18-32 Volts DC

Digital Input Module

Series:ControlLogix
Module Type:Isolated Digital Input Module
Inputs:16 Individually Isolated Inputs
Input Voltage:240 Volts AC
Operating Voltage Range:159-265 Volts AC
Input Delay Time:Programmable 9 or 18 milliseconds

ControlLogix Lithium Battery Assembly

Series:ControlLogix
Battery Type:Externally Mounted
Power Dissipation (Max):4.5 Watts
Mounting:Horizontal
Enclosure:Open
Backplane Current (5 Volts DC):10 amps
Backplane Current (24 Volts DC):2.8 Amps

ControlLogix Processor Module

Series:ControlLogix
Module Type:Processor Module
I-O Memory:0.98 MB
User Memory:8 MB
Maximum I-O:128,000
Maximum Analog I-O:4,000
Maximum Digital I-O:128,000

ControlLogix Processor Module

Series:ControlLogix
Module Type:Processor Module
I-O Memory:0.98 MB
User Memory:4 MB
Maximum I-O:128,000
Maximum Analog I-O:4,000
Maximum Digital I-O:128,000
Current Draw (1.2 Volts DC):5 Miliamperes
Current Draw (5.1 Volts DC):800 milliamps
Power Dissipation:2.5 Watts
Thermal Dissipation:8.5 BTU per hour
Isolation Voltage:30 Volts Continuous

ControlLogix Analog module

Series:ControlLogix
Part Number:1756-IT16
Application:Enhanced I/O for advanced control
Module type:Analog input, thermocouple mode
Number of channels:16, non-isolated
Data resolution:24-bit
Enclosure type:None (Open-style)
Mounting:Chassis

ControlLogix analog input module

Series:ControlLogix
Channels:8 Isolated Channels
Module Type:Analog Input
I-O Ranges:0-10 Volts
Inputs:8-Points, Isolated ,
Any combination of Voltage or Current mode
Conversion Method:Sigma-Delta
Current Draw (5.1 Volts):200 milliamps

CompactLogix packaged controller

Product Line:CompactLogix
Product Type:Programmable Automation Controller
Module Type:Processor Module
Communication:Ethernet
Communication ports:(1) USB; (2) Ethernet I/P; 1 RS232
Supported Protocols:ASCII; DH485; DF1; Ethernet
No. Of Axes over Ethernet:2 axes
No. of Task:32 Task
Shipping Dimensions:11X8X6 inches

Configurable flowmeter module

Series:ControlLogix
Inputs:2 Flowmeter Inputs, 2 Gate Inputs
Operation Mode:Totalizer Fill and Prover
Backplane Current (5Volts):300 milliamps
Backplane Current (24Volts):6 milliamps
Power Dissipation (Max):6 Watts at 60 Celsius
Removeable Terminal Blocks:1756-TBNH, 1756-TBSH
Enclosure;Open
Backplane Current (5 Volts DC):10 amps

Historic Machine Edition module

Series:ControlLogix
Power Consumption:5 Watts (7 Watts Max)
Ports:1 Ethernet 10/100T IEEE 802.3
Battery:Rechargable Lithium (Non-Removable)
Clock:Precision Real-Time Clock
Indicators:Status LEDs and 4-Character Alphanumeric Display
System Memory:AMD LX800 500 MHz x86
Battery-Backed Memory:512 Kbytes SRAM
Cache Memory:128 K L1/128 K L2

Historic Machine Edition module

Power Consumption:5 Watts (7 Watts Max)
Ports:1 Ethernet 10/100T IEEE 802.3
Battery:Rechargable Lithium (Non-Removable)
Clock:Precision Real-Time Clock
Indicators:Status LEDs and 4-Character Alphanumeric Display
System Memory:AMD LX800 500 MHz x86
Battery-Backed Memory:512 Kbytes SRAM
Cache Memory:128 K L1/128 K L2
Compact Flash Memory:Compact Flash Type 2 w/ DMA

Analog Input Module

Series:ControlLogix
Module Type:Hart Isolated Analog Input Module
Channels:8 Isolated Differential
Input Range:0-20 or 4-20 milliamps
Resolution:16-21 bits
Enclosure:Open
Overvoltage Protection:(+/-) 24 Volts
