C-plug
C-plug
removable data storage medium
For simple device replacement in case offault,
for recording configuration or engineering and application data
can be usedin the following
SIMATIC NET products with C-plug
slot: SCALANCE XC-200,
XP200, XM-400, XR-500,
M-800, W-700, SC-600 and S615
MICROMASTER 440 without filter
MICROMASTER 440 without filter
380-480 V 3 AC +10/-10% 47-63 Hz
constant torque 0.37 kW overload 150% 60 s
200% 3 s square-law torque 0.37 kW
protection IP20 ambient
temperature -10+50 °C without AOP/BOP
Bus module
Bus module for ET 200PA SMART
for holding two 40 mm wide I/Omodules
for insertion and removal function
Analog input module
SIMATIC S7-1500
Analog input module AI 8xU/I HS
16 bit resolution,
Accuracy 0.3% 8 channels in groups of 8
Common mode voltage 10 V
Diagnostics; Hardware interrupts 8 channels in 0.0625 ms Oversampling;
Delivery including infeed element
Analog HART output module
SIMATIC ET 200SP
analog HART output module
AQ 4xI HARTHigh Feature
suitable for BU type A0, A1
Color code CC00
channeldiagnostics
16 bit, +/-0.3%

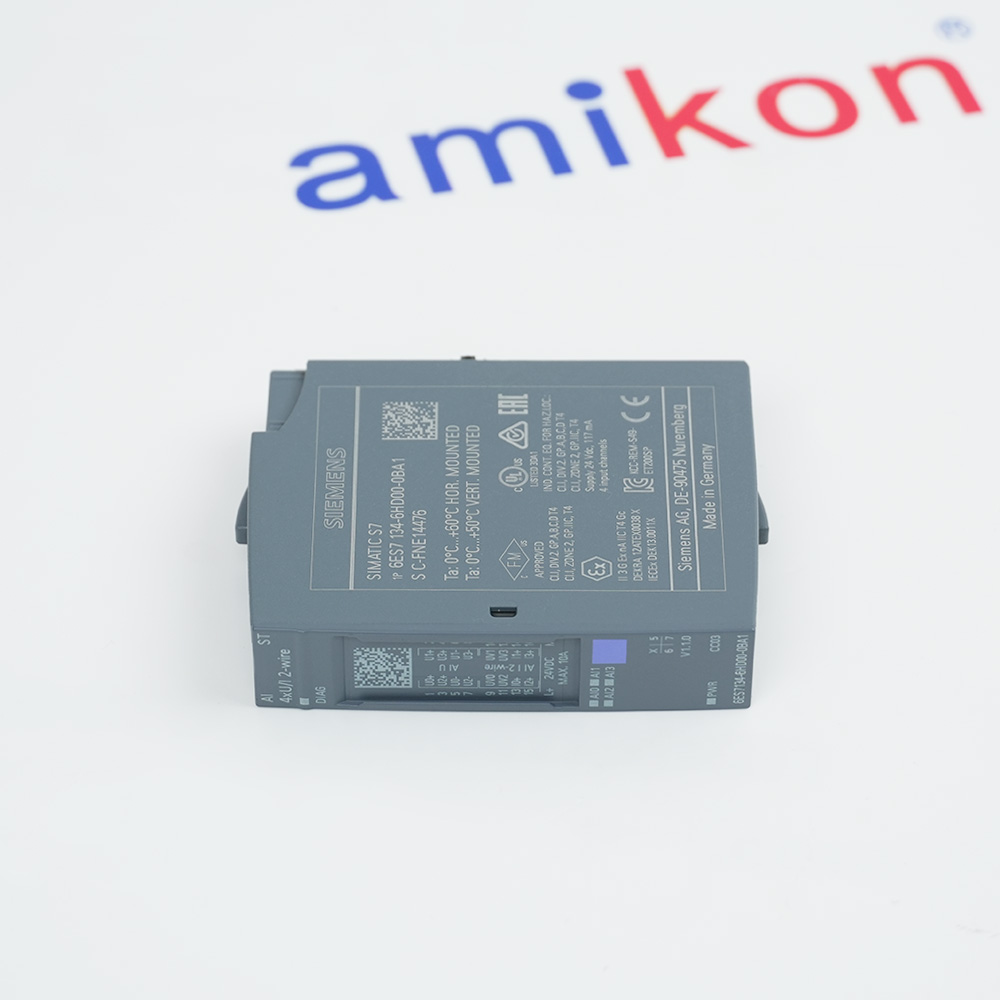

Analog HART input module
SIMATIC ET 200SP
analog HART input module
AI 4XI 2-wire HART High Featuresuitable
for BU type A0, A1
color code CC03
channel diagnostics
16-bit, +/-0.3%
COMPACT ROOM AUTOMATION STATION
DXR2.M09-101A
Compact room automation station
BACnet/MSTP, 230 V
flat housing, 1 DI, 2 UI
3 relay, 3 AO
Digital output module
SIMATIC ET 200SP
Digital output module
DQ 8x 24V DC/0,5A Basic
Sourceoutput (PNP,P-switching)
fits to BU-type A0, Colour CodeCC02
substitute value output
module diagnostics for: supply voltage
S7-400 rack
SIMATIC PCS 7-400
UR2-H XTR S7-400 rack
central and distributed with 2 x 9 slots,
2 x 2 redundant PS can be plugged in
for extended temperature range
and with conformal coating
COMMUNICATION MODULE
COMMUNICATION MODULE
SIMADYN D CS12
FRAME COUPLING VIA LWL
1 RECIEVER/TRANSMITTER
MEMORY MODULE
Input Type: Digital (24 V DC)
Signal Voltage Range: 0-30 V DC
Input Logic: TTL/CMOS-compatible
Isolation: Optocoupler isolation (≤500 V)
Output Type: Transistor (24 V DC)
Switching Capacity: Up to 2 A per channe
CENTRAL PROCESSING UNIT
CENTRAL PROCESSING UNIT
SIMADYN D PM5
32 BIT
WITH BINARY / ABSOLUTE AND INCREMENT INPUTS
L AND C BUS
S120 SERIES CIRCUIT BOARD
Voltage: 24 V DC (±10%)
Current Consumption: ≤500 mA
Digital I/O: 24 V DC
Analog Inputs: +/-10 V or 4–20 mA
Operating Temperature: 0°C to +55°C (32°F to 131°F).
Storage Temperature: -40°C to +70°C (-40°F to 158°F).
Humidity: ≤95% RH (non-condensing).
Vibration Resistance: 5–150 Hz, ≤1.5 g
Inverter Triggering Board
Control Circuit: 24 V DC (±10%)
Isolation Voltage: ≥2500 V AC
Output Pulse Voltage: 12–24 V DC
I/O Channels: Digitat inputs (24 V DC)
Power Consumption: ≤15 W
Vibration Resistance: ≤2.5 g (5–150 Hz)
CPU module
SIMATIC S7-200 SMART
CPU SR20, CPU
AC/DC/relay
onboard I/O: 12DI 24 V DC; 8 DQ relay 2A
power supply: AC 85 - 264 V AC at 47-63 Hz
77 to 138 V DC
program/data memory 20 KB
Inverter Drive
SINAMICS V20
380-480 V 3AC -15%/+10% 47-6
Rated power 0.75 kW with 150% overload for 60 sec
unfiltered I/O interface: 4 DI, 2 DQ, 2 AI, 1 AO
Fieldbus: USS/Modbus
RTU with built-in BOP Degree of protectionIP20/UL
open Size: Size A 90x150x146
SINGLE MOTOR MODULE
SINAMICS S120
SINGLE MOTOR MODULES
INPUT: 600 V DC
OUTPUT: 3-PH 400 V,
210 A FRAME SIZE: CHASSIS
INTERNAL AIR COOLING SUPPORT
OF THE EXTENDED SAFETY
INTEGRATED FUNCTIONS
INCL. DRIVE-CLIQ CABLE
power block
SINAMICS
replacement power block
for 510-750 V DC
380 A Motor Module
3 phases painted modules
and nickel-plated busbars
ACTIVE LINE MODULE
SINAMICS S120
ACTIVE LINE MODULE
INPUT: 3-PH380-480V, 50/60HZ
OUTPUT: 600 V DC, 549 A,
300KW
INTERNAL AIR COOLING INCL
DRIVE-CLIQCABLE
