DeltaV 8-Port Ethernet Switch
Copper Ports: 6 × 10/100/1000Base-T RJ45
Fiber Ports: 2 × 100/1000Base-X SFP
Total Ports: 8 ports
Input Voltage: 24 VDC
Power Consumption: Typically <15W
Switching Capacity: 16 Gbps
Packet Forwarding Rate: 11.9 Mpps.
MAC Address Table: 8K entries.
Jumbo Frames: Support up to 9.6 kB

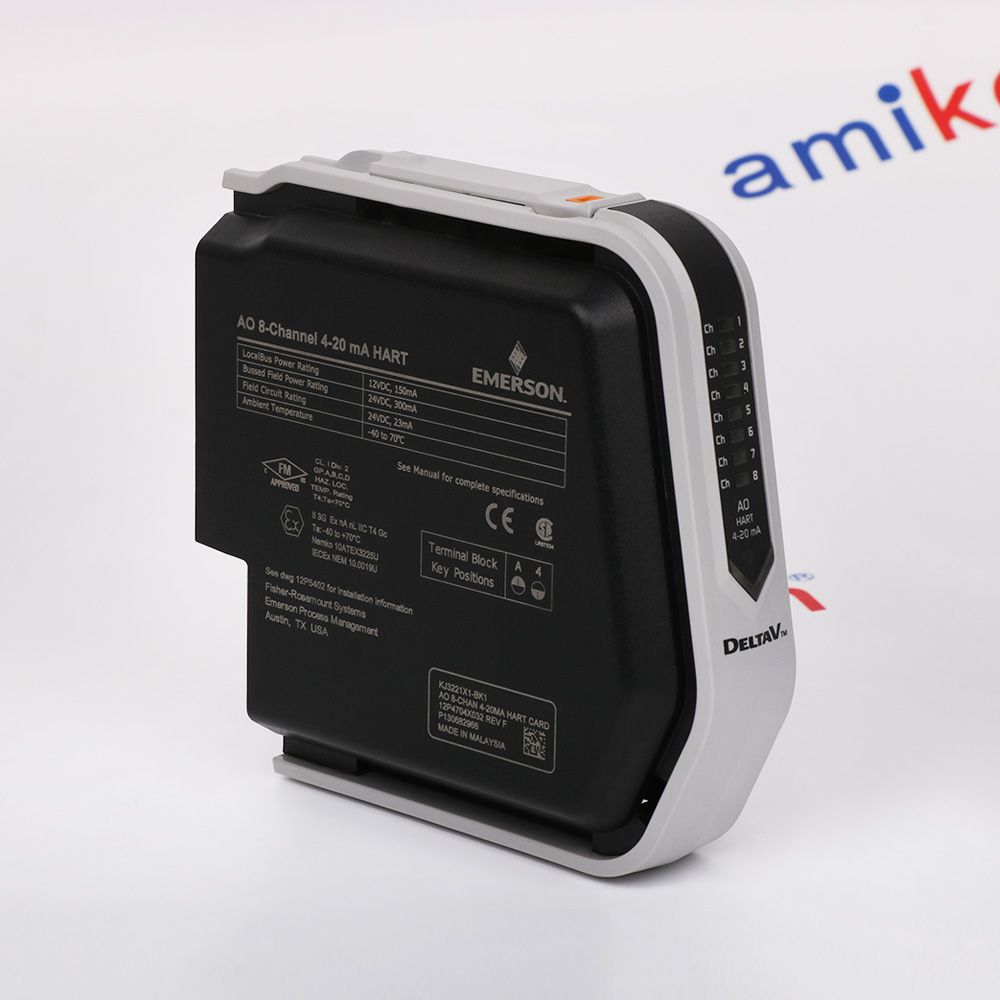

Analog Output Module
S-Series AO 4-20 mA HART 8-Channel
Local Bus Power 12 VDC at 150 mA
Bussed Field Power 24 VDC at 300 mA
Field Circuit24 VDC at 23 mA/Channel
Ambient Temperature -40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985 Airborne
Contaminants Class G3
Analog Output Module
S-Series AO 4-20 mA HART 8-Channel
Local Bus Power 12 VDC at 150 mA
Bussed Field Power 24 VDC at 300 mA
Field Circuit24 VDC at 23 mA/Channel
Ambient Temperature -40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985 Airborne
Contaminants Class G3

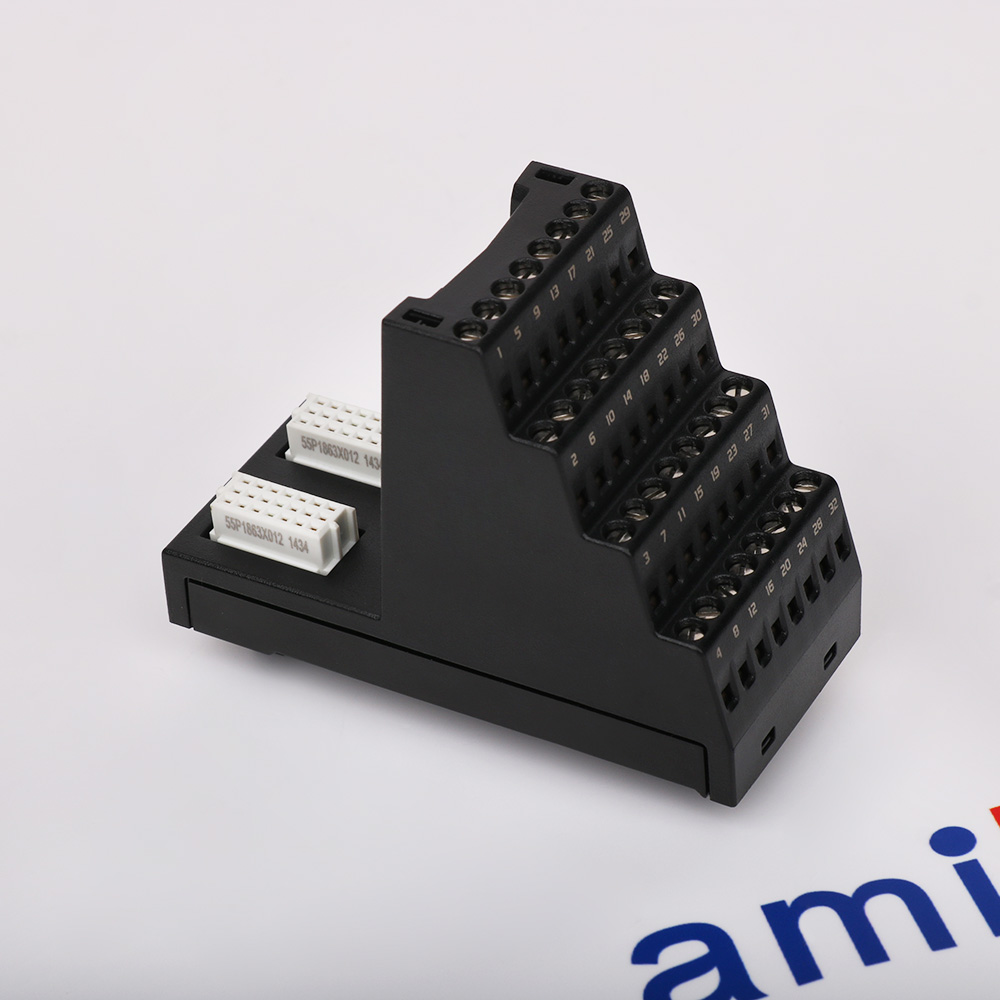

32 Channel Terminal Block
Input Power Rating 30 VDC @ 1 A
AmbientTemperature-40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration 1 mm peak to peak from 2 to 13.2 Hz
0.7 g from 13.2 to 150 Hz
AirborneContaminantsISA-S71.04 –1985 Airborne
Contaminants Class G3
Relative Humidity 5 to 95% non-condensing
Analog Input Module
ANALOG MODULE
2 WIRE/16CHANNEL
4-20MA
SERIES 2
LOCALBUS POWER RATING: 12VDC AT 150MA
BUSSED FIELD POWER RATING: 24VDC AT 600MA
FIELD CIRCUIT RATING: 240VDC AT 30MA
RACK MOUNTED
Redundant H1 Terminal Block
Input Power Rating 35 VDC @ 500m A
AmbientTemperature-40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration 1 mm peak to peak from 2 to 13.2 Hz
0.7 g from 13.2 to 150 Hz
AirborneContaminantsISA-S71.04 –1985 Airborne
Contaminants Class G3
Relative Humidity 5 to 95% non-condensing

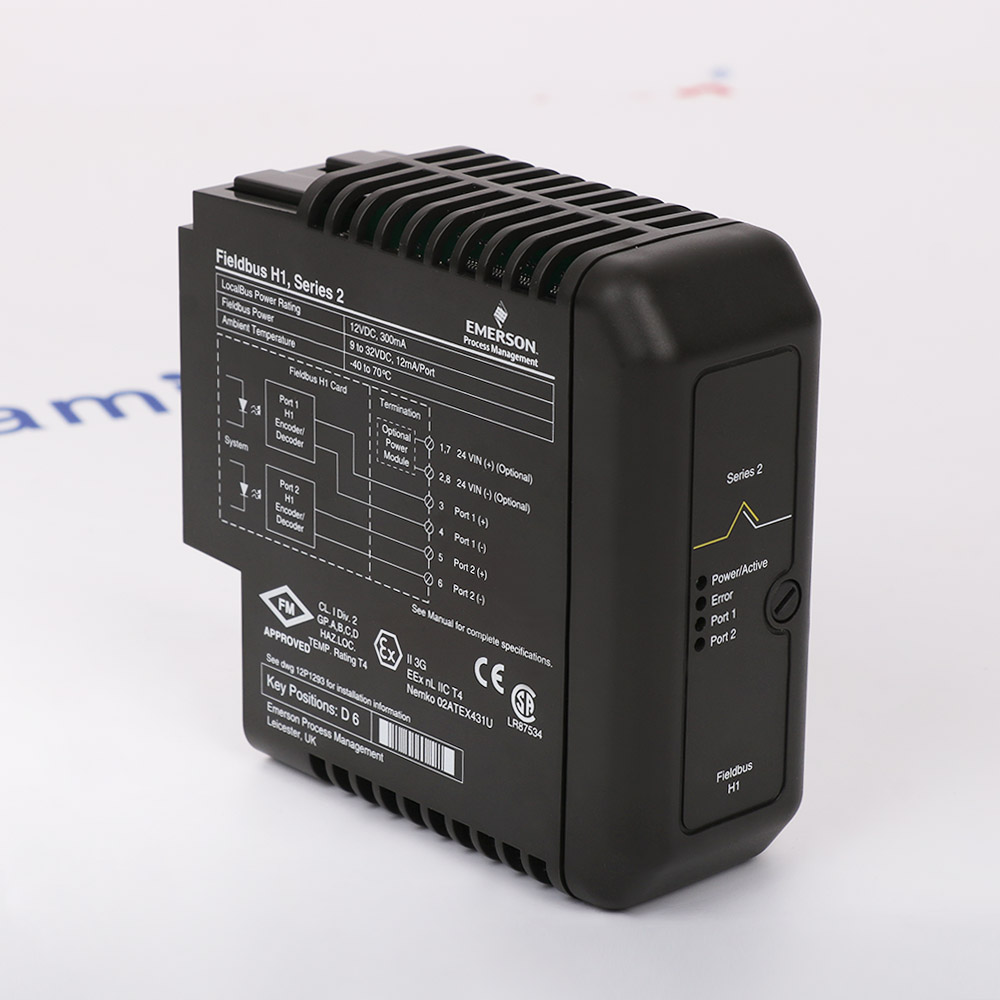

Fieldbus H1 Card
Local Bus Power 12 VDC at 300 mA
Fieldbus Power 9 to 32 VDC at 12 mA/Port
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz;0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985 AirborneContaminants Class G3
Relative Humidity 5 to 95% Non-Condensing IP 20 Rating
Terminal Block keyPosition D6
Interface Terminal Block
Field Power 35 VDC at 1 A
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz;0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985 AirborneContaminants Class G3
Relative Humidity 5 to 95% Non-Condensing
Terminal Block Key Position Set according to I/O card installed

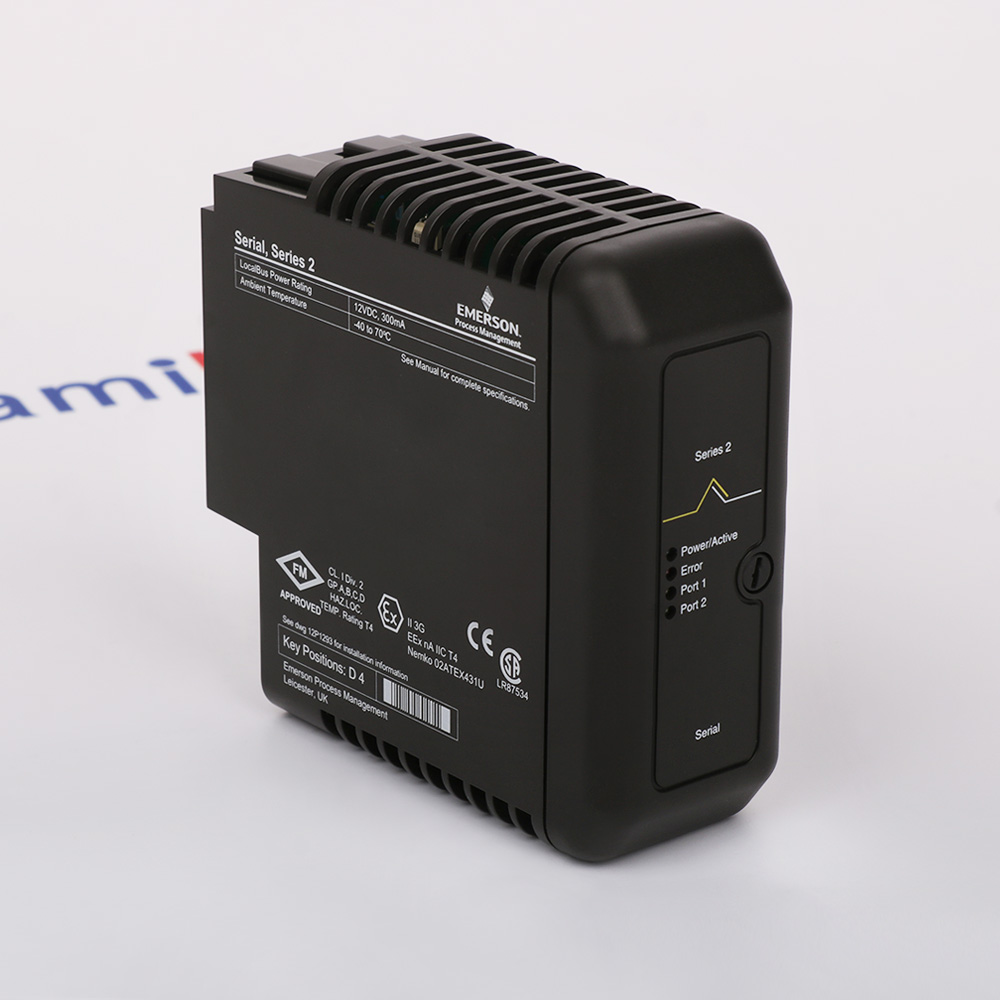

Serial Interface Module
SERIAL INTERFACE CARD
12 VDC
300 MA
2 PORT
D4 TERMINAL BLOCK KEY POSITION
Simplex SIC (Serial Interface Card),
LocalBus Power Rating 12 VDC 300mA
Ambient Temperature -40 to 70 degrees C
Power Controller 2 Wide Carrier
Input :30 VDC at 8 A (max)
Ambient Temperature :-40 to 70o C
Shock 10g ½ Sinewave for 11 msec
Vibration 1mm Peak to Peak from 5 to 16Hz
0.5g from 16 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity 5 to 95% Non-Condensing IP 20Rating
SYSTEM DC POWER SUPPLY M-SERIES
Input Rating :12 VDC at 13.8 A 24 VDC at 4.5 A
Output Rating:5.1 VDC at 2.0 A 3.4 VDC at 2.0 A
(40°C to +60°C):12 VDC at 13 A (12 VDC input)
Output Power:10.2 W (total from +5.1 VDC and+3.4 VDC)
Alarm ContactRating:30 VDC at 2.0 A
AmbientTemperature:-40°C to +60°C...+70°C
Shock :10g ½ Sinewave for 11msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz;
0.7g from 13.2 to 150Hz
AI 8 CH 4-20mA HART CARDSERIES 2
Local Bus Power:12 VDC at 150 mA
Bussed Field Power:24 VDC at 300 mA
Field Circuit: 24 VDC at 30 mA/Ch.
Ambient Temperature -40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration 1 mm peak to peak from 2 to 13.2Hz
0.7 g from 13.2 to 150 Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity:5 to 95% Non-Condensing
DI CARD 24V DRY CONTACT SERIES 2
Local Bus Power:12 VDC at 150 mA
Bussed Field Power:24 VDC at 100 mA
Field Circuit:24 VDC at 5 mA/Ch
Ambient Temperature -40 °C to +70 °C
Shock 10 g half-sine wave for 11 ms
Vibration 1 mm peak to peak from 2 to 13.2Hz
0.7 g from 13.2 to 150 Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity:5 to 95% Non-Condensing
Serial Interface Card
PROFIBUS DP CARD
SERIES 2 PLUS M-SERIES
Local Bus Power 12 VDC at 300 mA
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz;
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity Position5 to 95% Non-Condensing
Terminal Block key D4
Profibus DP Interface Card
PROFIBUS DP CARD
SERIES 2 PLUS M-SERIES
Local Bus Power 12 VDC at 600 mA
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz;
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Relative Humidity:5 to 95% Non-Condensing
SQ Controller
Local Bus Power +5 VDC at 1.4 A
AmbientTemperature-40°C to +70°C
Shock 10g ½ Sinewave for 11msec
Vibration 1mm Peak to Peak from 2 to 13.2Hz
0.7g from 13.2 to 150Hz
AirborneContaminantsISA-S71.04 –1985
AirborneContaminants Class G3
Extender Cable
8-Wide I/O
Interface Carrier
with Carrier Shield Bar
Operating temperature-40 to 70°C (-40 to 158°F)
Storage temperature-40 to 85°C (-40 to 185°F)
Relative humidity5 to 95%, non-condensing
Extender Cable
8-Wide I/O
Interface Carrier with
Carrier Shield Bar
Single Enhanced
Carrier Extender Cable
and Redundant SISNet Coax Cables
Cables are 1.2m
Extender Cable
8-Wide I/O
Interface Carrier
with Carrier Shield Bar and Single
EnhancedCarrier Extender Cable.
Cable is 1.2m
Fused I/O Termination Block
Redundant Standard I/O
Termination Block
8 Channels
24Vdc
Dry Contact
