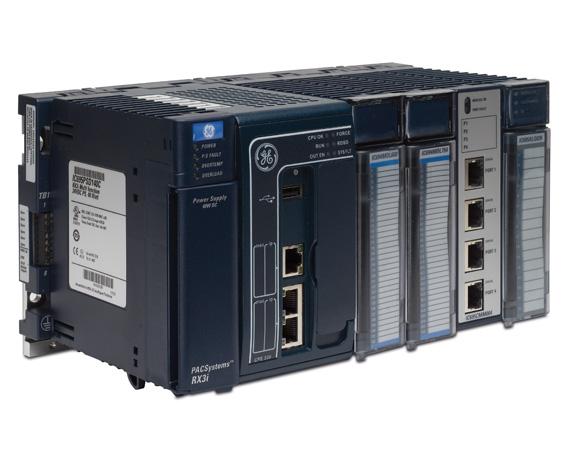

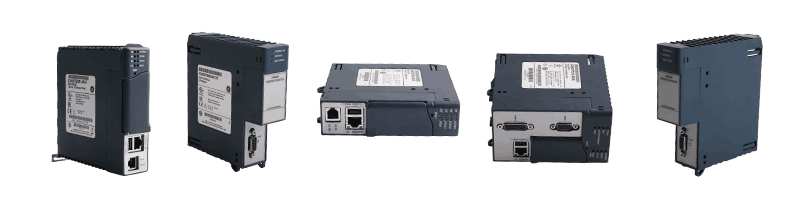

GE PACSystems RX3i

Power Supply module

Power Supply:40 Watts
Nominal Rated Voltage:120/240 VAC or 125 VDC
Input Voltage Range:18 to 30 VDC
Input Power:60 Watts maximum at full load
Outputs:3
Ripple:150 mV
Output Current:5.1 VDC
Noise:150 mV
Isolation None
Number of Daisy-Chained PSD140:Up to 4
Terminal Current:6 Amps

Analog input module

Series:PACSystem RX3i
Manufacturer:GE Intelligent Platform (GE IP); Emerson Automation (Current)
Part Number:IC694ALG221A
No of Channels:Four (4) input channels
Product Type:Input Module
Nominal Input signal:0-20 mA; 4-20 mA
Module Type:Analog
Channel update rate:2 ms
Product Description:Analog input module
Digital Resolution:12 bit
LED:1 Green "Module OK" LED
Common Mode Voltage:200 volts
Input Filter Response:325 Hz
Product Lifecycle Status:Active
Hot-Swapping:Not Supported
Accuracy:0.1 % full scale
Input filter response:325 Hz
Input impedance:250 ohms
Linearity:< 1 Least Significant Bit

CPU module

Series:RX3i PacSystem
Part Number:IC695CPE330-AFAT
Product Type:CPU module
Processor Clock Speed:1.0 Ghz
RAM:64 MB
NVRAM:64MB
I/O Points:up to 32 K I/O
Controller Redundancy:Supported
Maximum Program Blocks:512
Maximum Block Size:128 kilobytes

DeviceNet Master Module

Series:PACSystem RX3i
Product Description:DeviceNet Master Module
Part Number:IC694DNM200
Communication protocol:DeviceNet
Maximum Number of Slave Devices Supported:63
No. of supported DeviceNet slave:63
Slave Operation:Supported
Input data:255 Bytes
Communication Rates:125k, 250k, or 500k bauds
Output data:255 Bytes

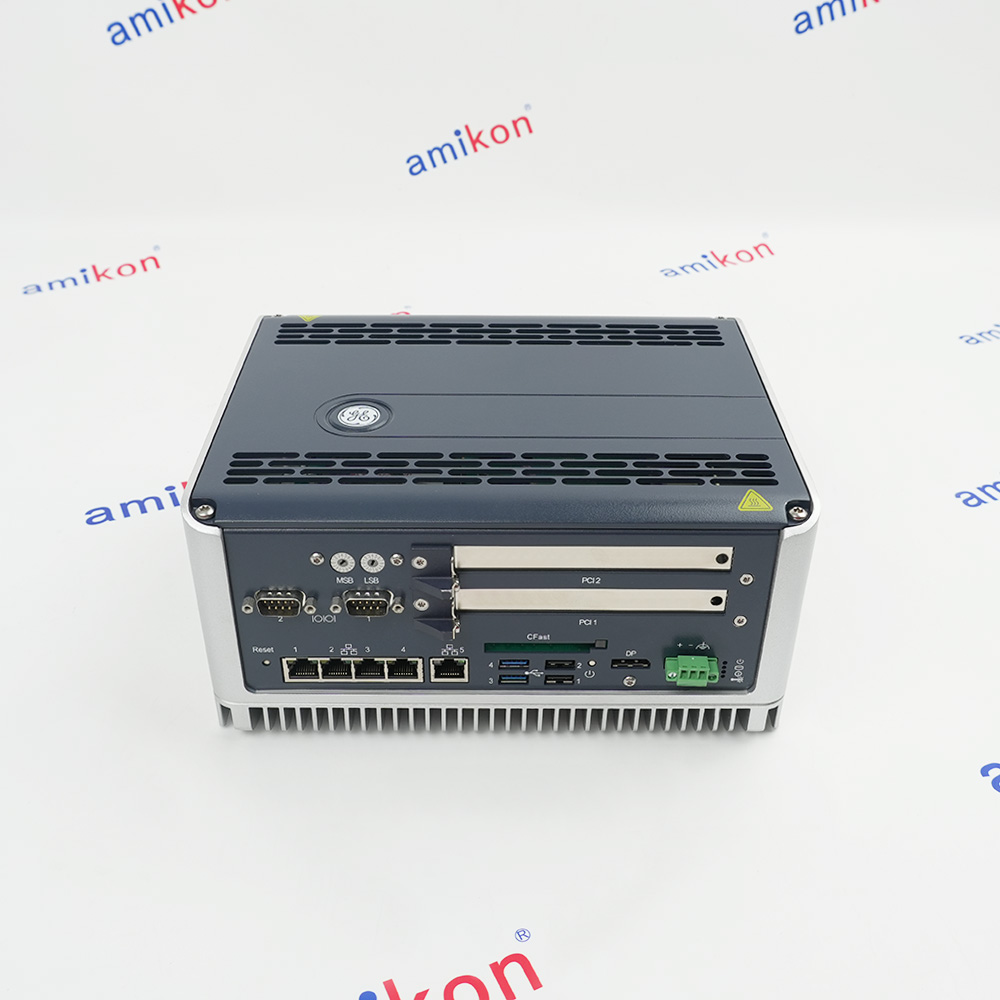

Abaco Systems RXI Box IPC

Dual Core COM Express CPU Module
Fanless Design
(2) Gigabit Ethernet Connectors
Operating Temperature Range of -25°C to +65°C

RX3i CPL410 Controller

Processor1.2 GHz AMD G Series Quad Core
Operating SystemVxWorks
Power requirements
Input Power (Max) - 20 Watts
Input Voltage (Min) - 18 VDC
Input Voltage (Max) - 30 VDC
DisplayOLED
SecuritySecure Boot and Trusted Platform Module (TPM)
MarineABS, DNV-GL, BV, LR

RX3i CPE400 Controller

Processor1.2 GHz AMD G Series Quad Core
Operating SystemVxWorks
Power requirements
Input Power (Max) - 20 Watts
Input Voltage (Min) - 18 VDC
Input Voltage (Max) - 30 VDC
DisplayOLED
SecuritySecure Boot and Trusted Platform Module (TPM)
MarineABS, DNV-GL, BV, LR

RX3i CPL410 Controller CPU

Processor1.2 GHz AMD G Series Quad Core
Operating SystemVxWorks
Power requirementsInput Power (Max) - 20 Watts,
Input Voltage (Min) - 18 VDC
Input Voltage (Max) - 30 VDC
DisplayOLED
SecuritySecure Boot and Trusted Platform Module (TPM)
MarineABS, DNV-GL, BV, LR

RX3i CPL410 Controller CPU

Processor1.2 GHz AMD G Series Quad Core
Operating SystemVxWorks
Power requirementsInput Power (Max) - 20 Watts,
Input Voltage (Min) - 18 VDC
Input Voltage (Max) - 30 VDC
DisplayOLED
SecuritySecure Boot and Trusted Platform Module (TPM)
MarineABS, DNV-GL, BV, LR

Central Processing Units

Series:PACSystem RX3i
Product Description Rackless: CPU
RAM:64 MB
Operating System:VxWorks
Flash Memory:64 MB
Operating system:VxWorks
No. of Program blocks:768 Program block
Input Power Requirement:20 Watts
Maximum Program block size 128 KB
Display:OLED
Local display:OLED display

Part Number IC695ETM001
Specialty ModuleRX3i Ethernet module
10/100 Mbits 2 RJ45 connections one IP
address occupies one slot on system base
Current Consumption
840 mA @ 3.3 VDC; 614 mA @ 5 VDC
Operational NotesUniversal Backplane Only.
Uses PCI Bus. Client/Server

RX3i power supply

Rated Voltage:120/240 VAC or 125 VDC
Input Voltage Range:
85 to 264 VAC or 100 to 300 VDC
Number of Slots:2
Output Power: 40 Watts max
Output Voltage:24 VDC, 5.1 VDC or 3.3 VDC
Output Current:0-1.6 A,  0-6 A, or  0-9 Amps

INPUT MODULE

INPUT MODULE
32POINT
LOGIC
SERIES 90-30
POSITIVE/NEGATIVE
7 AMP MAX
24 VDC

POWER SUPPLY

IC694PWR321
POWER SUPPLY
120/240 VAC
125 VDC STANDARD

OUTPUT MODULE

IC694MDL741
OUTPUT MODULE
12/24 VDC
0.5 AMP
16 POINTS
NEGATIVE LOGIC

POWER SUPPLY

IC694PWR331
POWER SUPPLY
24 VDC
HIGH CAPACITY
FOR RX3I

OUTPUT MODULE

OUTPUT MODULE
12/24 VDC
POSITIVE LOGIC
32 POINTS
INTERFACE USES FUJITSU CONNECTOR

CENTRAL PROCESSING UNIT

CENTRAL PROCESSING UNIT
300 MHZ
10 MB MEMORY
2 SERIAL PORTS
2 SLOT

RX3i High Speed Counter, 4 channels. 8 configurable inputs and 7 configurable ESCP outputs. Module supports high speed counting, input interrupts and programmable limit switch.

Relay Output module

Series:PACSystem RX3i
Part Number:IC694MDL930
No of Channels:Sixteen (16), individually isolated
Description:AC/DC Voltage Output Module
No. of channels:Eight (8), individually isolated
Operating Voltage:5 to 30 Volts DC or 5 to 250 Volts AC
Contact form:Normally Open (N.O.) Form A contacts
Output voltage range:5-250VAC / 5-30 VDC
Nominal output voltage:120-240 VAC; 24 VDC
Max. Backplane Draw:6.0 Milliamps
Minimum load:10 mA
Inrush Rating:5.0 Amps
Maximum inrush:5:00 AM
Relay contact life:150,000 -1,000,000 operations

Motion Controller Module

Series:RX3i PacSystem
Part Number:IC695PMM335
Catalog:IC695
No. of Axes:4
No of Master axes:1
Backplane Support:Universal Support
Motion Path Planning:1ms
Number of Slots:1 (single slot)
Position Loop Update Rate:500μs
Controlled Axes/Module:4
FSSB Velocity Loop Update Rate:125μs
Motion Path Planning:1 ms
FSSB Torque Loop Update Rate:62.5μs
Power Consumption at 5 V:0.45 A
Servo Command Interface:Fiber Optic
Power Consumption at 3.3 V:1.1 A
Floating Point:Yes

Analog input module

Manufacturer:Emerson Automation
Series:PACSystem RX3i
Product Description:Analog input module
Part Number:IC694ALG221
No of Channels:Four (4) input channels
Product Type:Input Module
Nominal Input signal:0-20 mA; 4-20 mA
Module Type:Analog
Channel update rate:2 ms
Number of inputs:4
Digital Resolution:12 bit
Input filter response:325 Hz
Input impedance:250 ohms
Input Filter Response:325 Hz
Common Mode Voltage:200 volts

PROFIBUS Slave Module

Series:RX3i PacSystem
Part Number:IC695PBS301
Product Line:RX3i
Catalog:IC695
Product Type:PROFIBUS Slave Module
Backplane Support:Universal
Number of Slots:1 (single slot)
Ports:9-pin connector
Backplane Compatibility:RX3i PCI

Serial Communications Module

Series:PACSystem RX3i
Manufacturer:Emerson Automation
Part Number:IC695CMM004
Product Type:Communications module
No of ports:Two (2) RS232 / RS422 / RS485
Serial Ports:4
Physical Interface:RJ-45
Connectors:RJ45
Supported Configurations:RS-232, RS-422/485
No. of installations per rack:Up to Six (6) modules
Baud Rates:1200 baud to 115.2 kilobaud
Status LED indicators:Module OK, Port Fault, Port Status
Current rating:0.7 mA at 3.3 VDC, 0.150 mA at 5 VDC
Operating Temperature:0 to 60 degrees Celsius
Parity:Even, odd, none
Data bits:7, 8
Stop bits:1, 2

CABLE

Series:RX3i PacSystem
Part Number:IC695CBL001
Compatibility:PACSystems RX3i
Cable Type:Energy pack cable
Type of Input/Output:Analog
Termination Resistor:Yes
