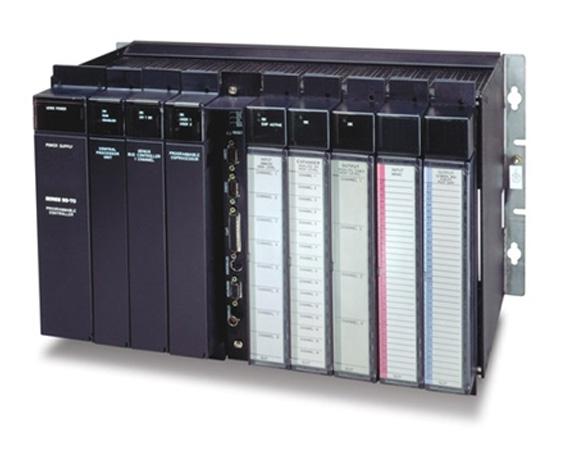

GE 90-70 Series PLC

Vibration Monitor I/O Pack

Ambient Temperature Range:-30 to 65 °C
Board Compatibility:Vibration Terminal Board (TVBA)
Channels Thirteen for Proximity and Vibration
Common Mode Voltage Min:5 VDC
Frame Rates:3.125, 6.25, 12.5, 25, 50, and 100 Hz
Functional Acronym/Abbreviation:PVIB
LED Indicators:4
Probe Power:-24 VDC, 12 mA load per transducer
Status LEDs:Attn, Pwr, Link, TxRx

Power Supply Module

Product Type: Power Supply Module
Nominal Rated Voltage: 24 volts DC
Input Voltage Range: 18 to 32 VDC
Input Power: 160 watts at full load
Output power: 90 watts
Location on Baseplates: Leftmost slot
DC Output: +5VDC, +12 VDC, -12 VDC

CENTRAL PROCESSING UNIT

Module Type:Central Processing Unit
Number of Slots:1 (Single slot)
Battery-backed memory: 1 Mbyte
Number of Points:12K discrete inputs and outputs
Serial Ports:1 (RS422/485 compatible)
Current Required:3.3 Amps nominal

CENTRAL PROCESSING UNIT

CENTRAL PROCESSING UNIT
64MHZ
32-BIT FLOATING
1MBYTE MEMORY
SERIES 90-70

Eight Port Serial Controller

Form Factor
PMCPCI  PMC-422
Signaling: 3.3V and 5V
Specification 2.2
33 MHz/32-bit
3 watts total
0.3A @ 3.3V
0.4A @5V
Eight rear RS485/RS422/RS232 serial ports
Four RS232 ports on front; RJ45 connectors
(frontports are not available for RS485 and RS422)

CPU module

Product type CPU module
Compatibility GE Fanuc 90-70 PLCs
RAM 1 MB
NV-RAM 256 KB
Microprocessor 80486DX4
Clock speed 96 megahertz

Memory Expansion Module

Power Supply Module

Nominal rated voltage:120/240 VAC
Input Power:160 watts maximum at full load
Product Type:Power Supply Module
Load Capacity:100 Watts
No. of Outputs Three (3)
AC Input:90 to 264 VAC
Frequency:47 to 63 Hz
DC Input:100 to 150 VDC
Voltage regulation:5, 12, and -12 VDC

Power Supply Module

discrete output module

Series:Series 90-70
Part Number:IC697MDL740
Required current:0.15 Amps
Number of outputs:16
Isolation voltage:1500 Volts
Rated voltage:24 to 48 Volts DC

discrete output module

Series:Series 90-70
Part Number:IC697MDL350
Outputs:32
Output Current/Point:0.5 A
Output Current/Group:2 A
Current Required:0.5 A
Frequency:47-63 Hz

Input Module

Series:Series 90-70
Part Number:IC697MDL250
Number of Inputs:32
Input Current:10 mA
Required Current:0.35 A
Frequency:60 Hz

discrete input module

Series:Series 90-70
Part Number:IC697MDL240
Inputs:16 Isolated Inputs
Input Current:10 mA
Current Required:0.25 A
Frequency:60 Hz

CPU module

Series:Series 90-70
Manufacturer:Emerson Automation
Part Number:IC697CPX772
Product type:CPU module
RAM:512 kilobytes
Current input:3.1 Amps
Voltage input:5 Volts DC
NV-RAM:256 kilobytes
Clock speed:96 megahertz
Current draw:3.1 Amps
Voltage input:5 Volts DC
Analog I/O:8 K max
Serial ports:3
Maximum RAM:512 kilobytes

CPU, 16 MHz, 12K Discrete I/O, Expandable Memory

IC697CPU781
DISCONTINUED BY MANUFACTURER
CPU
16 MHZ
32-BIT
EXPANDABLE CENTRAL PROCESSING UNIT IS A SINGLE SLOT CPU
90-70 IC697CPU781 IS PROGRAMMED AND CONFIGURED BY MSDOS OR WINDOWS BASED PROGRAMMING TO PERFORM REAL TIME CONTROL OF MACHINES

CPU Module

Series:Series 90-70
Part Number:IC697CPU772
Product type:CPU module
Voltage input:5 Volts DC
Current draw:1.2 Amps
Microprocessor:80C186
Serial port:1

5-Slot Rack Rear Mount

Series:Series 90-70
Part Number:IC697CHS750
Current:20 Amperes
Voltage:5 Volts DC
Slots:5

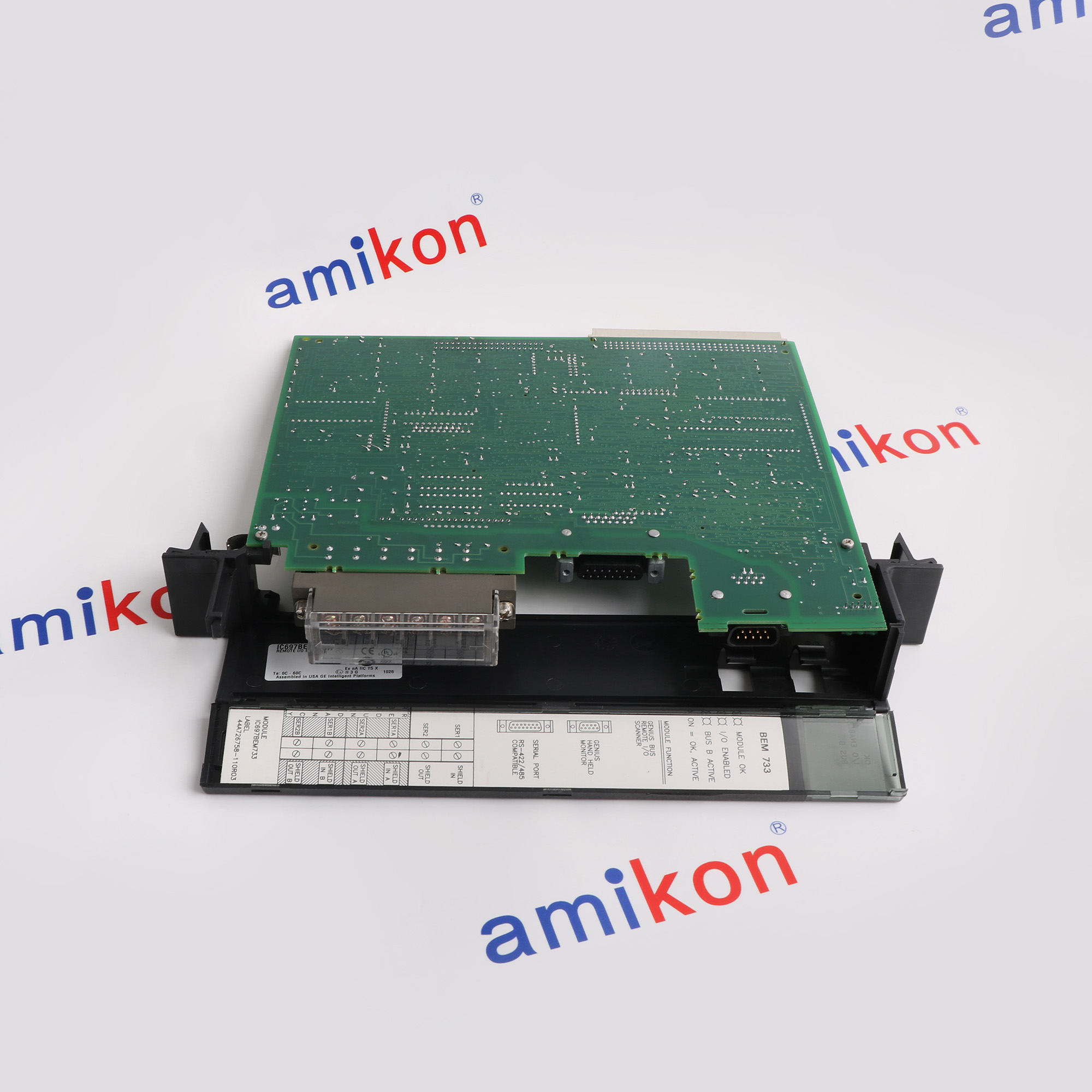

Remote I/O scanner module

Series:Series 90-70
Manufacturer:Manufacturer
Slot width:Single slot
Product Description:Remote I/O scanner
Part Number:IC697BEM733
Application:GE fanuc IC66 Bus
Current draw:0.8 A
Location:IC697 PLC rack
Terminating Resistor values:75, 100, 120 or 150 Ohms
Description:Genius Remote I/O Scanner
Backplane Current:1.3 Amps
Operating Voltage:5.0 Volts DC

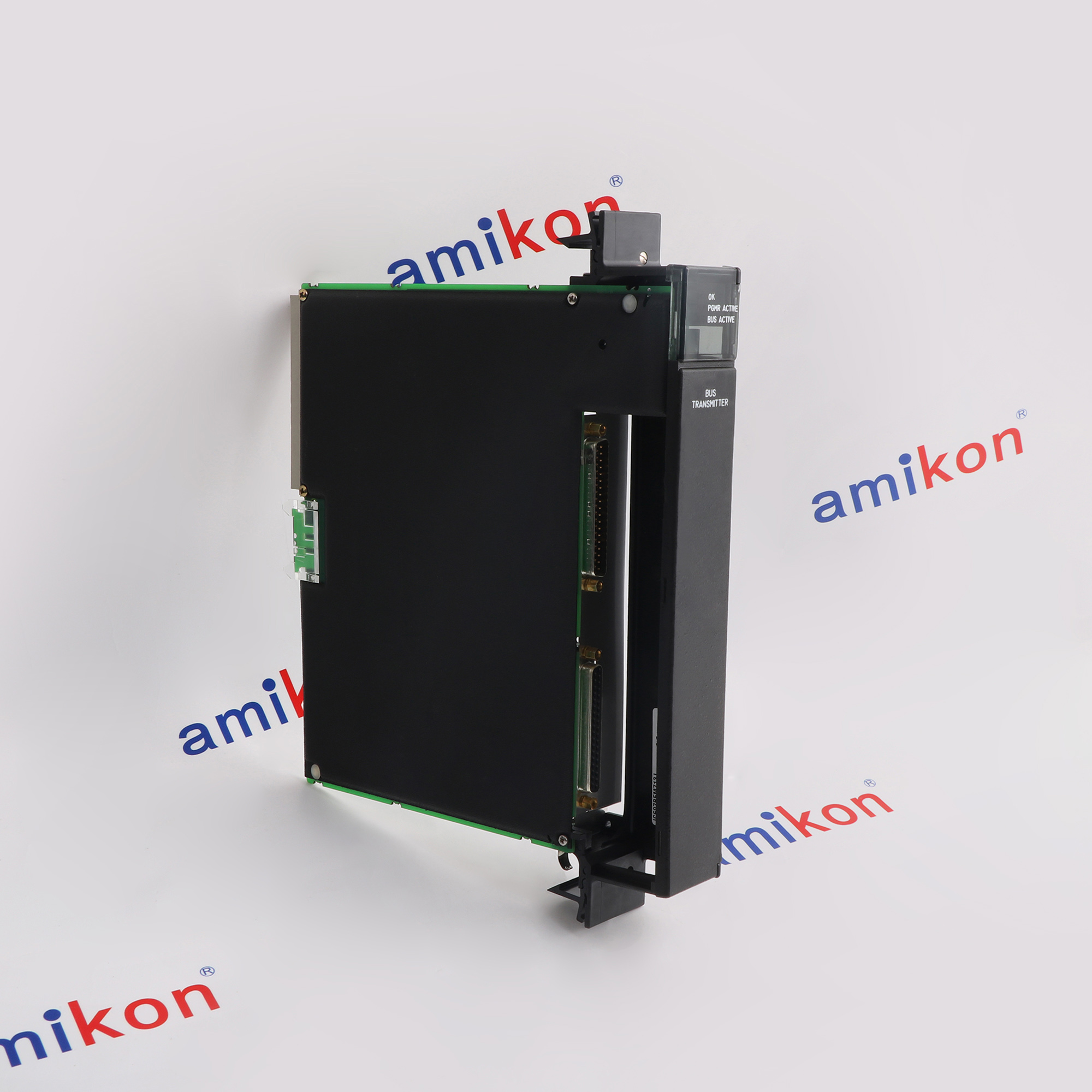

Bus Transmitter module

Series:Series 90-70
Manufacturer:Emerson Automation
Part Number:IC697BEM713
Slot required:1
Voltage input:5 Volts DC
Compatibility:IC697 PLC
Current draw:1.4 Amps
Programmer interface:1
Voltage input:5 Volts DC
Expansion interface:1
Current input:1.4 Amps

Discrete Input module

Series:Series 90-70
Part Number:IC697ALG321
No. of Inputs:4 Inputs
Conversion Rate:2 ms
Input Impedance:250 Ohms
Weight (approx.):4 Pounds

REDUNDANCY COMMUNICATIONS MODULE

Series:Series 90-70
Part Number:IC697RCM711
Type:Communication Module
Product Description:Redundancy Communication Module (RCM)
Purpose:Redundancy system
Maximum cable length:50 feet (15 meters)
Current required from 5V Bus:1.2 A
Backplane Current draw:1.2 Amperes
Maximum cable length:15 m
VME:Supported
Status indicators:Yes
Pushbutton:Yes
Terminating plug:IC697ACC702
Product Lifecycle:Discontinued

Analog Input Module

Series:Series 90-70
No of Channels:Eight (8) analog input
Part Number:IC697ALG230
Update Rate:2.4 ms to 2.8 ms
Current Input Range:4 to 20 milliamps
Calibration:Factory set at 10 Volts +/- 2 mV
No. of terminals:40 pins
Analog input signal:4-20 mA; -10VDC / +10 VDC
Product Description:Base converter module
No. of Inputs:8
Maximum no. of inputs:120
Analog output resolution:16 bits
Voltage Input Range:-10 to +10 Volts
