Allen-Bradley PowerFlex

SMART MOTOR CONTROLLER

SOFT STARTER
SMART MOTOR CONTROLLER
SOLID-STATE
135 AMP
100 HP
OPEN ENCLOSURE
200-460 VAC INPUT LINE VOLTAGE
3 PHASE
50/60 HZ
100-240 VAC CONTROL VOLTAGE
PUMP CONTROL

SWITCHING POWER SUPPLY

SWITCHING POWER SUPPLY
POWERFLEX 7000 MEDIUM VOLTAGE
AC/DC
3.4 AMP
300 WATT
56 VDC
47/63HZ
(80026-088-01)

DC/DC POWER SUPPLY

8002617323
POWER SUPPLY
SWITCHING 5/-15/15/12/24/-24VDC OUT
METAL ENCLOSURE

FLEXEX I/O OUTPUT MODULE

1797OB4
FLEXEX I/O OUTPUT MODULE
24 VDC
4 OUTPUT
NON-ISOLATED SOURCING
16 PIN

POWER SUPPLY

POWER SUPPLY
FOR POWERFLEX 7000 AC DRIVES
1500 WATT
SINGLE PHASE
100-240 V AC
50/60HZ
23 AMP

DC SWITCHING POWER SUPPLY

DC SWITCHING POWER SUPPLY
56 VDC INPUT
7 OUTPUTS
5/15/24 VDC
5/2/1 AMPS
MOX720-P4668E
80026-518-01-R

OPERATOR INTERFACE

OPERATOR INTERFACE
PANELVIEW PLUS 6 COMPACT
TOUCH SCREEN
PANELVIEW PLUS 600
5.7 INCH DISPLAY
320 X 240 PIXELS
COLOR DISPLAY
ETHERNET
RS-232 + USB
24 VDC INPUT
WINDOWS CE 6

AC DRIVE ADJUSTABLE FREQUENCY

AC DRIVE
ADJUSTABLE FREQUENCY
POWERFLEX 70
480 VAC
3 PHASE
1.1 AMP
0.37 KW
0.5 HP
PANEL MOUNT
INTERFACE MODULE - FULL NUMERIC LCD
MANUAL
WITH BRAKE

SILICON CONTROLLED RECTIFIER

SILICON CONTROLLED RECTIFIER
350AMP
6.5KV

POWER SUPPLY

POWER SUPPLY
POWERFLEX 700
DC/DC
W/CONFORMAL COATED BOARDS

POWER SUPPLY

POWER SUPPLY
50W
DC/DC CONVERTER
CLASSIC
24 VDC
PS4

ADJUSTABLE FREQUENCY

AC DRIVE
ADJUSTABLE FREQUENCY

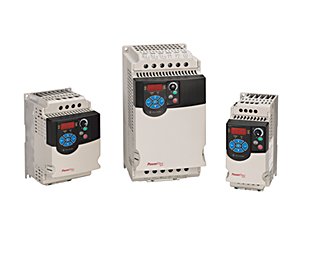

POWERFLEX 40,240 VAC
1 PHASE
8 AMP
1.5 KW
2 HP
PANEL MOUNT - IP 20 NEMA TYPE OPEN
FIXED KEYPAD
NOT FILTERED
STANDARD BRAKE

SMC Flex Interface Board

INTERFACE BOARD
SMC FLEX INTERFACE PCB BOARD
FOR SOFTSTART
Input Voltage:24V DC
Communication Ports:RS-485, EtherNet/IP
Current/Power Ratings:5A at 240V AC
Analog I/O: Standard 0-10V

GU-D15 / GUD15 THYRISTOR BOARD

Industrial heating systems
AC motor soft starters and speed controllers
Lighting control
Power factor correction systems
Input Voltage:100–480 V AC
Output Current:15–25 A
Gate Trigger Voltage:3–12 V DC
Gate Trigger Current:50–150 mA

1500 Amp SGCT Matched Set

Rated Blocking Voltage:4500–6500 V
Rated Average Current :1500 A
Surge Current:25–30 kA
Gate Trigger Voltage:3–5 V
Gate Trigger Current:200–500 mA
Turn-Off Time:10–30 µs
Max Junction Temperature:125–150°C
Case Temperature Range:-40°C to +80°C
Thermal Resistance:0.005–0.01°C/W.

VOLTAGE SENSING BOARD

AC Voltage:0–600 V AC
DC Voltage:0–1000 V DC
Isolation Voltage:2500 V AC
Output Signal:0–10 V DC or 4–20 mA
Accuracy:±1% full scale
Frequency Response:50/60 Hz

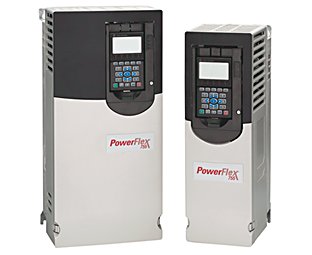

PowerFlex 755 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 755
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
400 VAC / 540 VDC
7.5 KW / 10 HP
15.4 AMP
FILTERING
JUMPER INSTALLED
INTERNAL TRANSISTOR

PowerFlex 753 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 755
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
400 VAC / 540 VDC
4 KW / 5 HP
8.7 AMP
FILTERING
JUMPER INSTALLED
INTERNAL TRANSISTOR
NO HIM

PowerFlex 753 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 755
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
400 VAC / 540 VDC
4 KW / 5 HP
8.7 AMP
FILTERING
JUMPER INSTALLED
INTERNAL TRANSISTOR
NO HIM

PowerFlex 753 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 755
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
400 VAC / 540 VDC
2.2 KW / 3 HP
5 AMP
FILTERING
JUMPER INSTALLED
INTERNAL TRANSISTOR
NO HIM

PowerFlex 753 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 755
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
400 VAC / 540 VDC
1.5 KW / 2 HP
3.5 AMP
FILTERING
JUMPER INSTALLED
INTERNAL TRANSISTOR
NO HIM

PowerFlex 753 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 755
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
400 VAC / 540 VDC
0.75 KW / 1.00 HP
2.1 AMP
FILTERING
JUMPER INSTALLED
INTERNAL TRANSISTOR
NO HIM

PowerFlex 753 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 753
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
690 VAC / 932 VDC
250 KW / 335 HP
263 AMP
FILTERING
JUMPER INSTALLED
NO INTERNAL TRANSISTOR

PowerFlex 753 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 753
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
600 VAC / 810 VDC
185 KW / 250 HP
242 AMP
FILTERING
JUMPER INSTALLED
NO INTERNAL TRANSISTOR
NO HIM

PowerFlex 753 AC DRIVE

AC DRIVE
AIR COOLED
POWERFLEX 753
AC INPUT WITH PRECHARGE
IP20/IP00
OPEN TYPE
600 VAC / 810 VDC
185 KW / 250 HP
242 AMP
FILTERING
JUMPER REMOVED
NO INTERNAL TRANSISTOR
