PRODUCT DESCRIPTION
Rear connections for Ethernet and serial communications

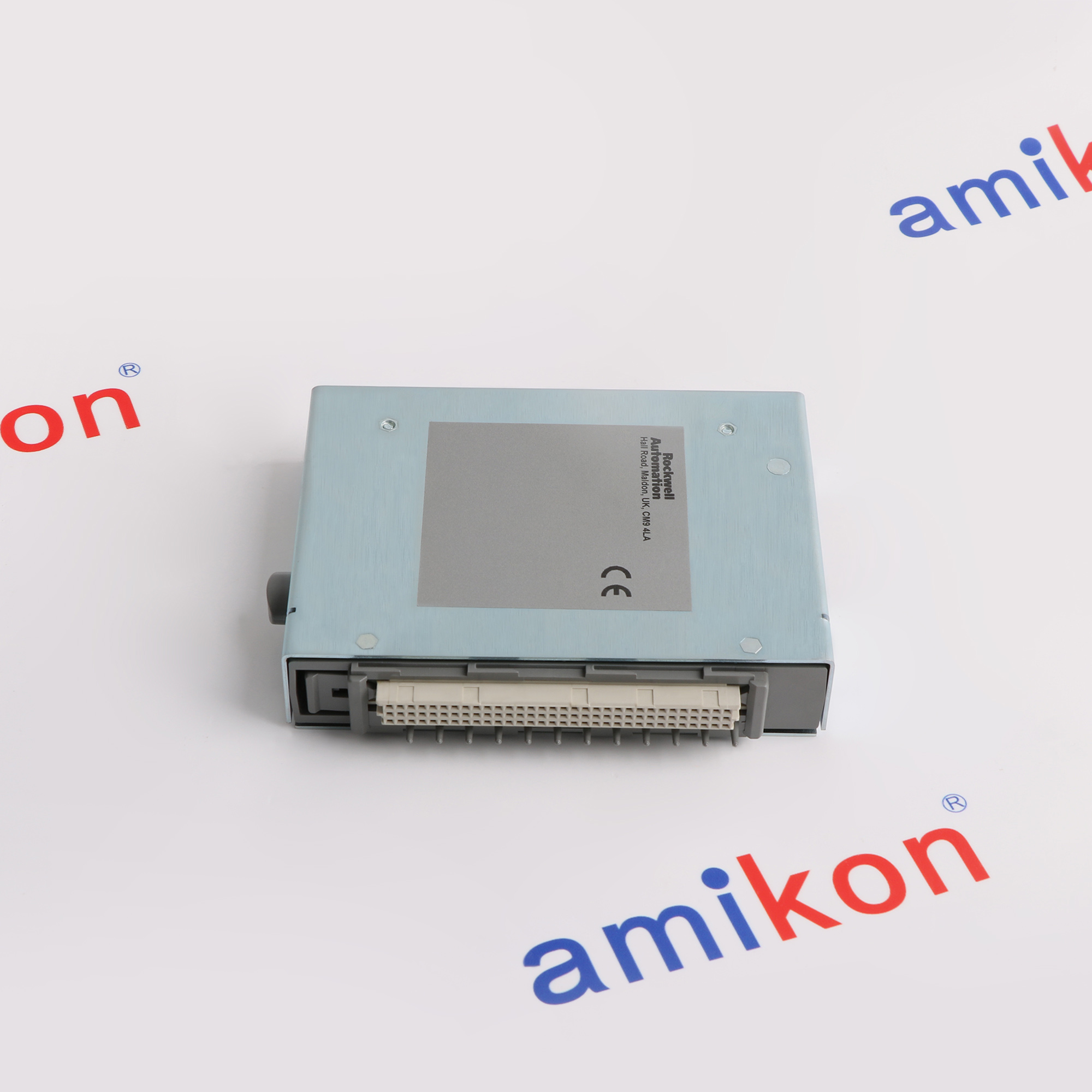

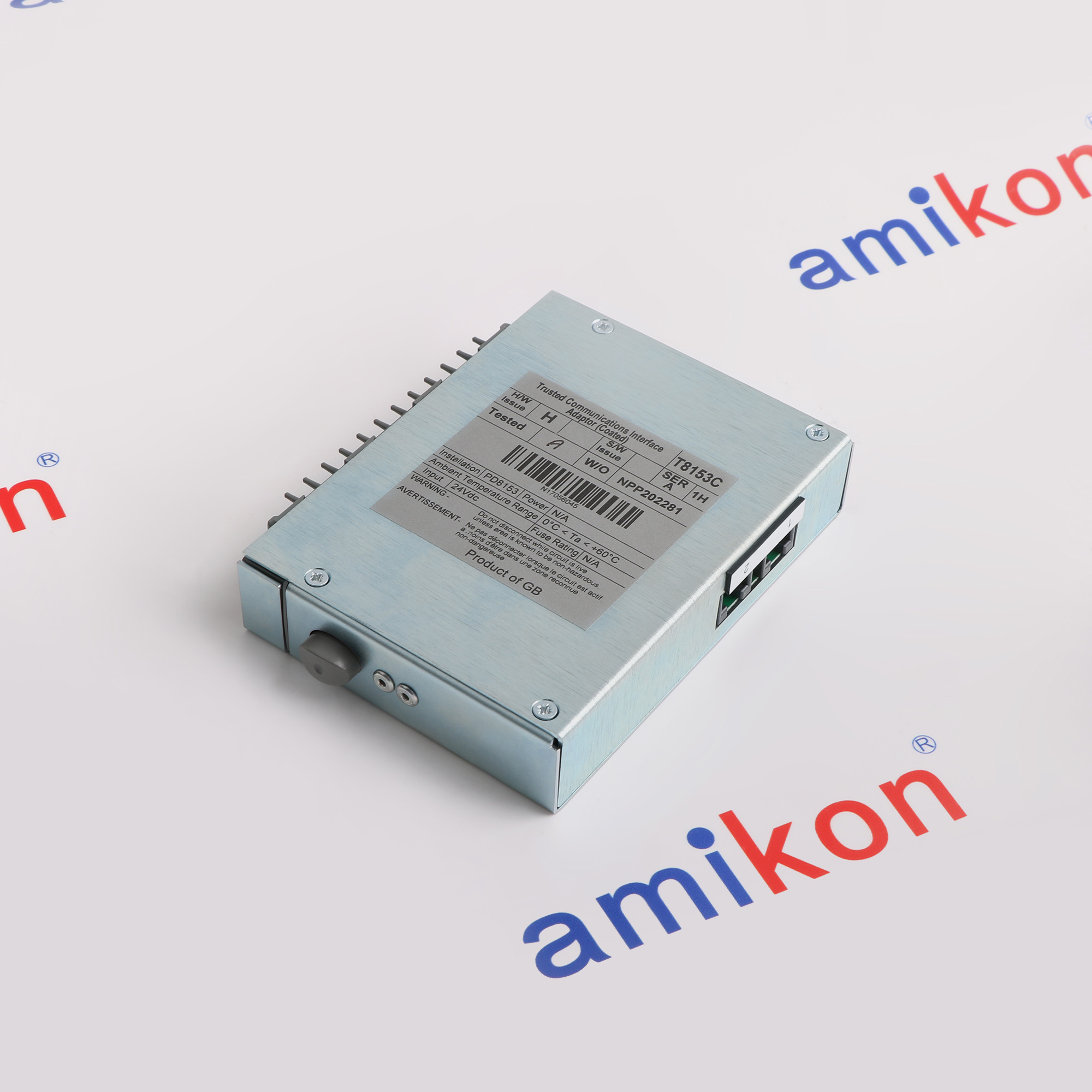

ICS Triplex T8153C is a conformal-coated communications interface adapter for the rear of a Trusted controller chassis. It connects to the communications interface module and provides accessible Ethernet and serial connectors for external equipment, including remote systems and networked computers.
The adapter presents two Ethernet connections, four RS-485 ports and two RS-232 connections. Serial modes must match the communications interface configuration. The manufacturer recommends a different adapter for the gateway module; connector similarity does not establish equivalent gateway suitability.
The adapter presents two Ethernet connections, four RS-485 ports and two RS-232 connections. Serial modes must match the communications interface configuration. The manufacturer recommends a different adapter for the gateway module; connector similarity does not establish equivalent gateway suitability.
BEFORE YOU BUY
Confirm the complete installed configuration
ACTUAL APPLICATIONS
Where T8153C Fits in Industrial Production Facilities
Use spans process industries and utility facilities, subject to the installed hardware, connections and approved configuration.
-
01 · OIL & GAS
Hydrocarbon Production Facilities and Petroleum Processing Plant Areas
Oil production plant equipment for gathering and hydrocarbon separation.Petroleum processing facilities with storage tanks and transfer machinery. -
02 · POWER GENERATION
Generating Station Facilities and Power Plant Auxiliary Machinery
Generating station facilities with turbine auxiliaries and fuel equipment.Power plant utility areas with feedwater and boiler equipment. -
03 · WATER & WASTEWATER
Municipal Water Works and Wastewater Plant Operating Equipment
Municipal water works with intake pumps and filtration equipment.Wastewater plant operating areas with aeration and sludge equipment.
Technical specifications for T8153C
-
Product ModelT8153C
-
Product ParametersTrusted communications interface adapter
-
ManufacturerICS Triplex
-
Associated communications interfaceT8151B; installed revision and configuration must match
-
Chassis locationRear of T8100 controller chassis, behind communications interface
-
Module connector78+2-way inverse DIN 41612 M-type, SK1
-
Ethernet ports2 x RJ45, 10BaseT or 100BaseT
-
RS-232 connections2: bank 1 full interface; bank 2 partial interface
-
RS-485 ports4, with direct and multi-drop facilities
-
RS-485 connector arrangementTwo connectors per port for incoming and outgoing wiring
-
TerminationLink-selectable 120 ohm AC termination on transmit and receive circuits
-
Serial mode restrictionBanks 1 and 2 cannot use RS-485 when configured for RS-232
-
External serial connectorsPhoenix Contact, 2.5 mm pitch; match the documented connector
-
RetentionClipped metal enclosure with release button
-
Operating temperature0 to +60 degrees C
-
Storage temperature-25 to +70 degrees C
-
Relative humidity10-95%, noncondensing
-
Coating optionC order suffix denotes conformal coating, not hardware Series C
View all additional
Alternative Names
T8153C Trusted communications interface adapter
ICS Triplex T8153C rear communications adapter
T8153C Trusted communications termination unit
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
TRUSTED EQUIPMENT
Match T8153C to the documented Trusted configuration
T8153C provides physical access to the communications interface ports. Serial protocols and operating modes depend on the connected interface and its configuration.
Match the rear T8100 connector behind the communications interface; remove that interface before fitting the adapter. Check Ethernet media, serial banks and the complete manufacturer pinout before connection.
Match RS-232 or RS-485 mode for banks 1 and 2 and the termination links required by the network topology.
Features:
- Two 10/100BaseT Ethernet connections
- Four RS-485 ports with direct and multi-drop access
- Two RS-232 connections: full and partial
The ICS Triplex T8153C trusted communications interface adapter requires the appropriate mounting, connections and configuration to be verified before system integration and commissioning.
INTERCHANGEABILITY
Verify the complete replacement identity before commissioning
Record the complete T8153C identity and compare its hardware revision with the installed item. Match the communications interface, chassis connector, serial mode and termination. This adapter is not the recommended T8170 gateway adapter; use the documented gateway-specific arrangement.
Match the rear T8100 connector behind the communications interface; remove that interface before fitting the adapter. Match RS-232 or RS-485 mode for banks 1 and 2 and the termination links required by the network topology.
Use the controlled manufacturer procedure and the approved maintenance plan. The manufacturer recommends T8173 for the gateway module. Do not treat this communications adapter as an unrestricted gateway substitute.
Features:
- Complete order identity retained
- Companion equipment and configuration checked
- No unconditional substitution claim
The ICS Triplex T8153C trusted communications interface adapter requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: Amikon-authored summaries and manufacturer-hosted manuals are listed here. Check the complete product identity and document scope before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the ICS Triplex T8153C trusted communications interface adapter must be checked for document applicability before installation or commissioning.
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed sizePacked dimensions unconfirmed
-
Shipping weightGross weight unconfirmed
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginMexico
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about T8153C
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What does T8153C connect?
It provides accessible rear Ethernet and serial connectors for the Trusted communications interface. It is an adapter, not the controller processor or a stand-alone communications interface. -
Which communications ports are available?
Two RJ45 10/100BaseT connections, four RS-485 ports and two RS-232 connections. RS-232 bank 1 is full; bank 2 is partial. Actual operation depends on the communications interface. -
Can banks 1 and 2 use both serial modes simultaneously?
No. The manufacturer says banks 1 and 2 cannot be used in RS-485 mode when the communications interface is configured for RS-232 on those ports. -
How is RS-485 termination selected?
Links provide 120 ohm AC termination on transmit and receive circuits. Use the original point-to-point or multi-drop example for the actual network; do not fit every link indiscriminately. -
Is signal ground the same as cable screening?
No. The manufacturer requires RS-485 signal ground to be connected and says not to connect it to the cable screen. Follow the original grounding and screening instructions. -
Can this adapter be used as the recommended gateway connection?
No. The manufacturer recommends T8173 for T8170 gateway use because it provides the appropriate Ethernet and keyboard, video and mouse connections. Do not infer gateway suitability from port appearance. -
Must the communications interface be removed for fitting?
Yes. The installation section requires removing the communications interface, then mating the rear adapter and sliding it upward until it clicks into place. Apply the approved isolation and maintenance procedure. -
Does the C suffix identify hardware Series C?
No. It identifies the conformal-coating order option. Verify the actual hardware series separately on the product label.
