PRODUCT DESCRIPTION
BAO21 369B1871G5003 Analog output terminal base
General Electric BAO21 369B1871G5003 is an eight-channel current/voltage analog-output base for compatible OC 6000e output electronics. It provides the module and field-connection interface for configured analog control circuits in industrial power and process-control equipment.

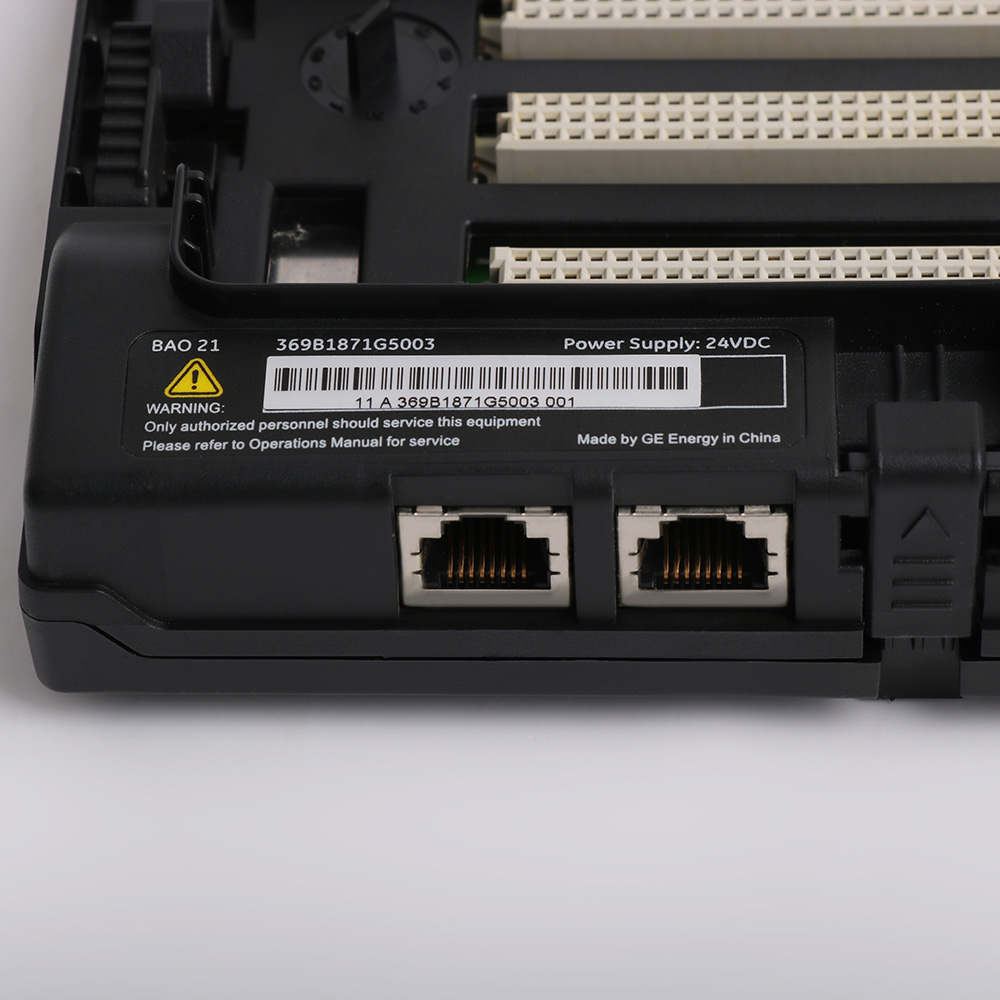

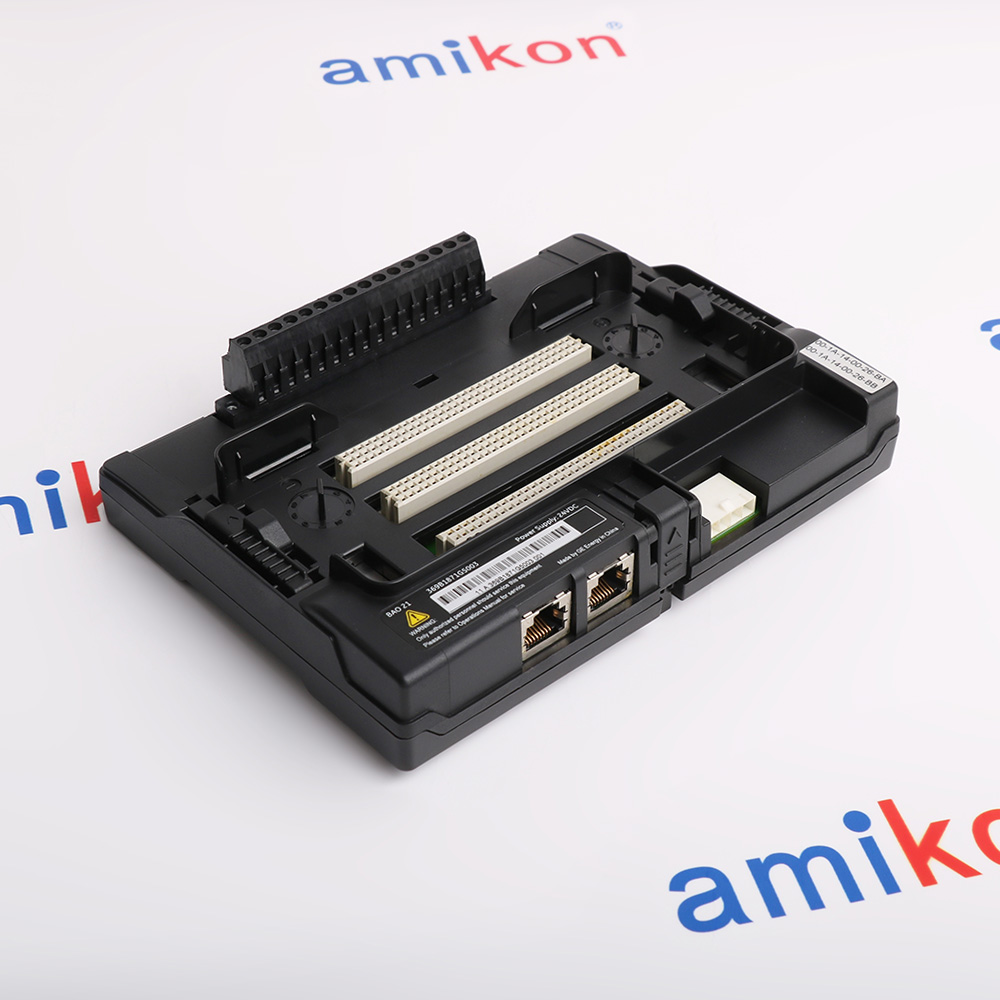

The photographed base carries a 24 V DC supply marking, two shielded RJ45 sockets, three multipole module receptacles and 24 removable field-terminal positions. Rotary cams secure the companion output module. The base connection arrangement must match the installed output hardware; signal range, conversion resolution and load capability are properties of the complete configured output assembly.
The photographed base carries a 24 V DC supply marking, two shielded RJ45 sockets, three multipole module receptacles and 24 removable field-terminal positions. Rotary cams secure the companion output module. The base connection arrangement must match the installed output hardware; signal range, conversion resolution and load capability are properties of the complete configured output assembly.
BEFORE YOU BUY
Confirm the complete analog output terminal base
ACTUAL APPLICATIONS
Application context for BAO21 369B1871G5003
BAO21 369B1871G5003 is an eight-channel analog-output base for compatible OC 6000e electronics. Its configured output assemblies serve electric power generation, chemical manufacturing and petroleum processing. The output module, selected signal mode and field load determine suitability.
-
01 · POWER GENERATION
Electricity Generation and Industrial Heat Supply
Electric Power GenerationIndustrial Heat and Power -
02 · CHEMICAL PROCESSING
Chemical Manufacturing and Petrochemical Production
Industrial Chemical ManufacturingPetrochemical Production and Refining -
03 · OIL & GAS
Petroleum Production and Natural Gas Processing
Oil Production and ProcessingNatural Gas Processing
Technical specifications for BAO21 369B1871G5003
-
Product ModelBAO21 369B1871G5003
-
Product ParametersAnalog output terminal base
-
In stock8 units
-
ManufacturerGeneral Electric
-
Marked supply voltage24 V DC
-
Network connection hardware2 shielded RJ45 sockets
-
Module mating interface3 multipole board receptacles
-
Analog output channels8 mA/V channels
-
Field termination capacity24 removable terminal positions
-
Chassis fixing points4 panel mounting holes
-
Module retention2 rotary locking cams
-
Grounding connection1 protective-earth clamping point
-
Rail retentionSpring-latch DIN rail fixing
View all additional
Alternative Names
BAO21 369B1871G5003
OC 6000e Analog output terminal base
OC 6000e BAO21 carrier
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate BAO21 369B1871G5003 analog output terminal base
General Electric BAO21 369B1871G5003 is an eight-channel current/voltage analog-output base for compatible OC 6000e output electronics. It provides the module and field-connection interface for configured analog control circuits in industrial power and process-control equipment.
Match the BAO21 369B1871G5003 label, supply marking, connector arrangement and existing terminal assignment to the installed equipment. Compare the photographed interface with the wiring record before connecting the supplied article.
Retain the approved configuration and complete the installed equipment's documented signal and functional checks for BAO21 369B1871G5003. Use the applicable site drawings for pin assignments; connector appearance alone does not establish interchangeability.
Features:
- Marked supply voltage: 24 V DC
- Network connection hardware: 2 shielded RJ45 sockets
- Module mating interface: 3 multipole board receptacles
The BAO21 369B1871G5003 analog output terminal base requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify BAO21 369B1871G5003 analog output terminal base
Verify the complete BAO21 369B1871G5003 article identity and its installed role before replacement. Compare the terminal or relay interface and the companion hardware with the existing unit.
Record the BAO21 369B1871G5003 wiring, grounding connection and mechanical retention before removal. Isolate the affected circuits and preserve the approved control configuration and relevant signal assignments.
After fitting the verified BAO21 369B1871G5003 article, restore the documented connections and configuration. Complete the affected input, output or relay checks and retain the acceptance results with the equipment record.
Features:
- Marked supply voltage: 24 V DC
- Network connection hardware: 2 shielded RJ45 sockets
- Module mating interface: 3 multipole board receptacles
The BAO21 369B1871G5003 analog output terminal base requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the BAO21 369B1871G5003 analog output terminal base must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size17.30 × 12.50 × 4.80 cm
-
Shipping weight0.35kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginChina
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about BAO21 369B1871G5003
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What output connection role does BAO21 provide?
BAO21 369B1871G5003 is identified as an eight-channel mA/V analog-output base. It connects the compatible output electronics to the installed analog field circuits. -
Does BAO21 contain the output conversion electronics?
BAO21 369B1871G5003 is the connection base. Output conversion resolution and configured current or voltage ranges must be obtained from the companion output module documentation. -
How many removable output-terminal positions are visible?
The photographed BAO21 369B1871G5003 has 24 removable field-terminal positions. Match the original signal and return assignments when reconnecting the output circuits. -
Is the marked 24 V supply the analog output span?
The 24 V DC marking on BAO21 369B1871G5003 is the base supply marking. It is not a statement that the analog output span is 0–24 V. -
What supports the mating analog-output module mechanically?

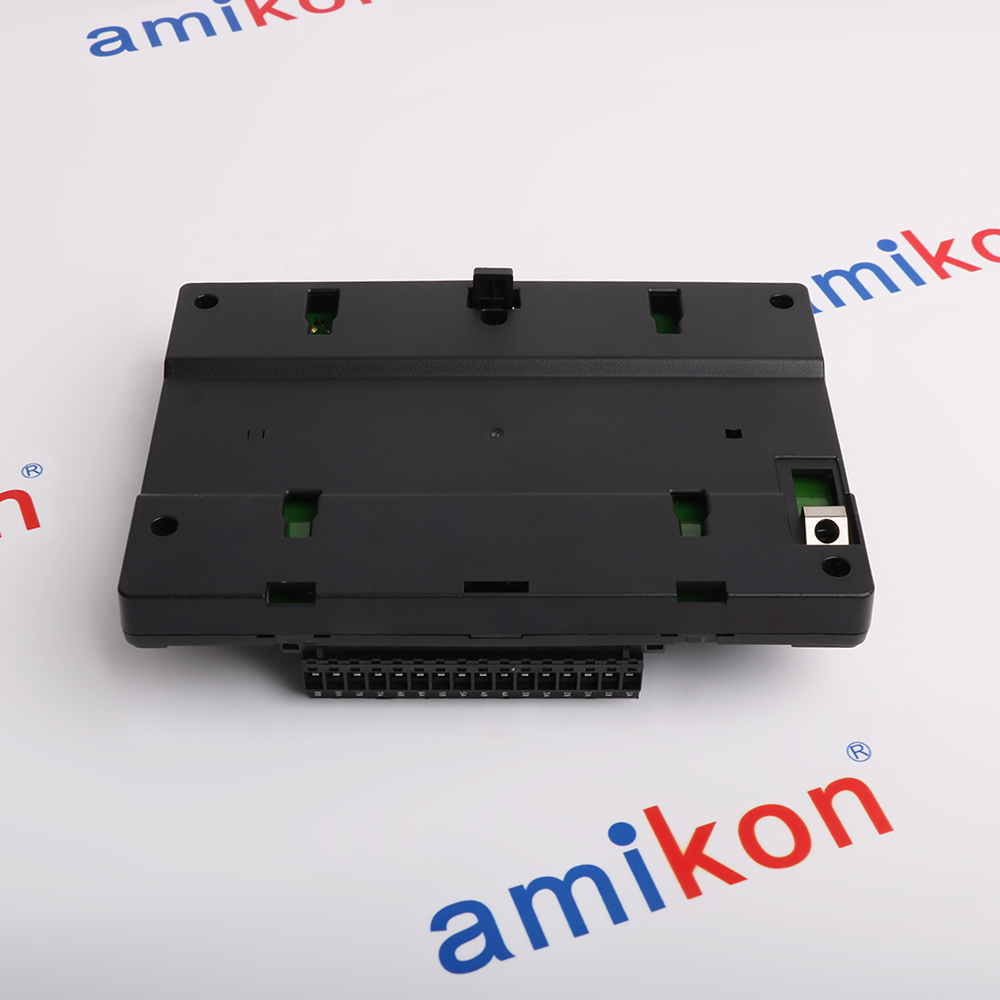

BAO21 369B1871G5003 uses three multipole module receptacles with two rotary locking cams. Its chassis provides four panel fixing holes and a rear rail retention latch. -
Can a signal load be selected from the base part number alone?
No. For BAO21 369B1871G5003, the permissible field load and output-mode setting depend on the installed analog-output module and the documented field circuit. -
What is needed to order the eight-channel output base?
Specify BAO21 369B1871G5003, the installed analog-output module, quantity and terminal-block requirements. Include the existing base and output-module labels for the assembly comparison. -
Which connections matter during BAO21 incoming inspection?
On BAO21 369B1871G5003, inspect the 24 field terminals, dual RJ45 sockets, three mating receptacles, earth point and rotary retention hardware against the supplied assembly.
