PRODUCT DESCRIPTION
BAI11 369B1868G5002 Analog input terminal base
General Electric BAI11 369B1868G5002 is an analog-input terminal base used with compatible OC 6000e current and voltage input electronics. It provides the field-wiring and module connection interface for process instrumentation in configured power-generation and industrial process-control installations.

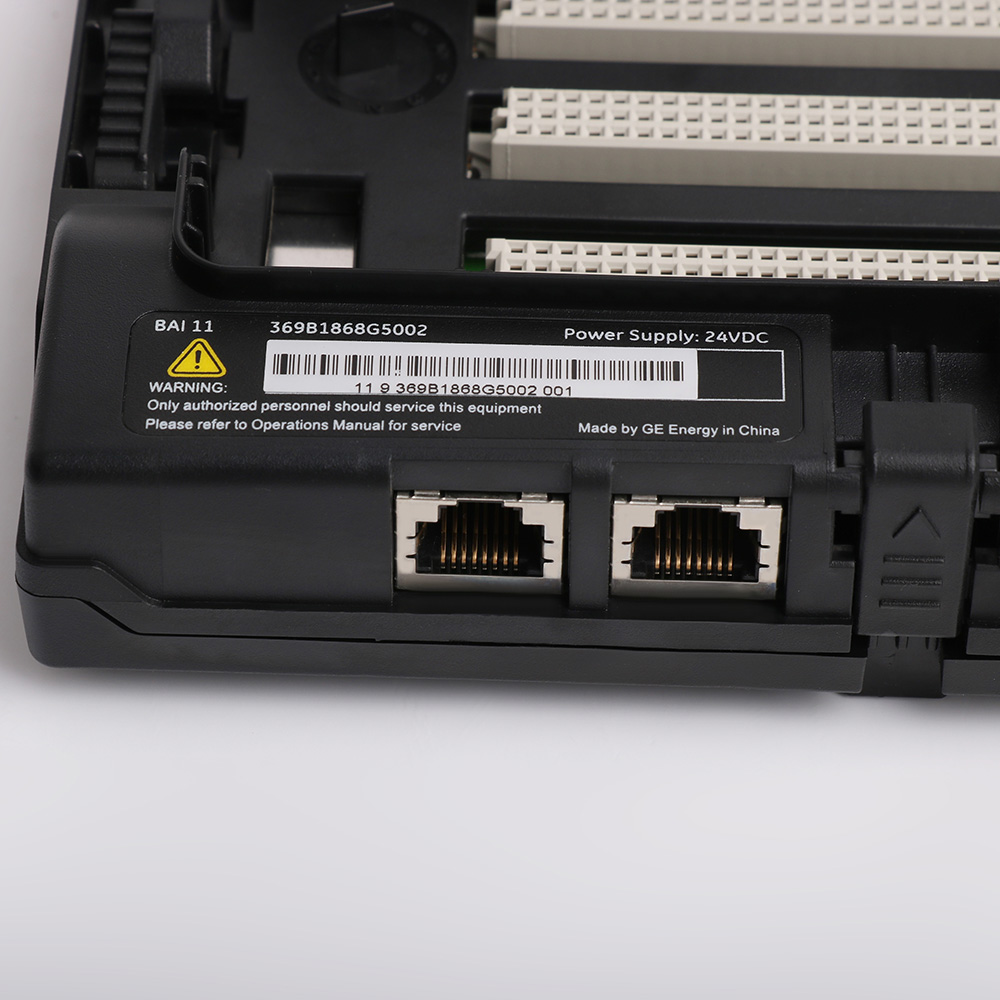

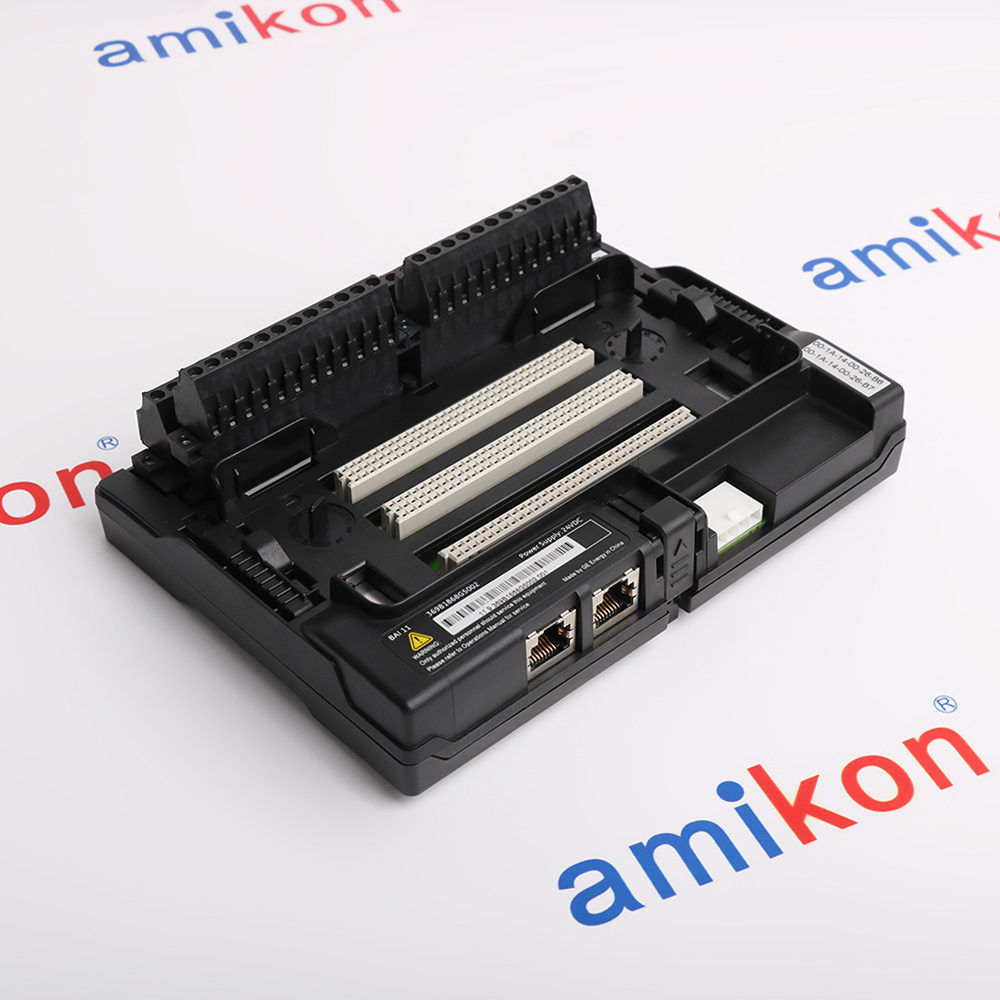

The photographed base is marked 24 V DC and contains two shielded RJ45 sockets, three multipole module receptacles and 48 removable field-terminal positions. Rotary retainers secure the mating module, while the rear housing provides panel fixing points and a rail latch. The base carries the connections; analog conversion specifications belong to the installed input electronics.
The photographed base is marked 24 V DC and contains two shielded RJ45 sockets, three multipole module receptacles and 48 removable field-terminal positions. Rotary retainers secure the mating module, while the rear housing provides panel fixing points and a rail latch. The base carries the connections; analog conversion specifications belong to the installed input electronics.
BEFORE YOU BUY
Confirm the complete analog input terminal base
ACTUAL APPLICATIONS
Application context for BAI11 369B1868G5002
BAI11 369B1868G5002 is the current/voltage input terminal base for compatible OC 6000e electronics. It connects process instrumentation in power generation, petroleum processing and chemical production. Suitability depends on the mating input module, field-signal assignment and documented wiring.
-
01 · POWER GENERATION
Electric Power Generation and Steam Production
Thermal Electric Power GenerationIndustrial Steam and Power -
02 · OIL & GAS
Petroleum Production and Natural Gas Processing
Oil Production and ProcessingNatural Gas Processing -
03 · CHEMICAL PROCESSING
Chemical Manufacturing and Petrochemical Production
Industrial Chemical ManufacturingPetrochemical Production and Refining
Technical specifications for BAI11 369B1868G5002
-
Product ModelBAI11 369B1868G5002
-
Product ParametersAnalog input terminal base
-
In stock5 units
-
ManufacturerGeneral Electric
-
Marked supply voltage24 V DC
-
Network connection hardware2 shielded RJ45 sockets
-
Module mating interface3 multipole board receptacles
-
Field termination capacity48 removable terminal positions
-

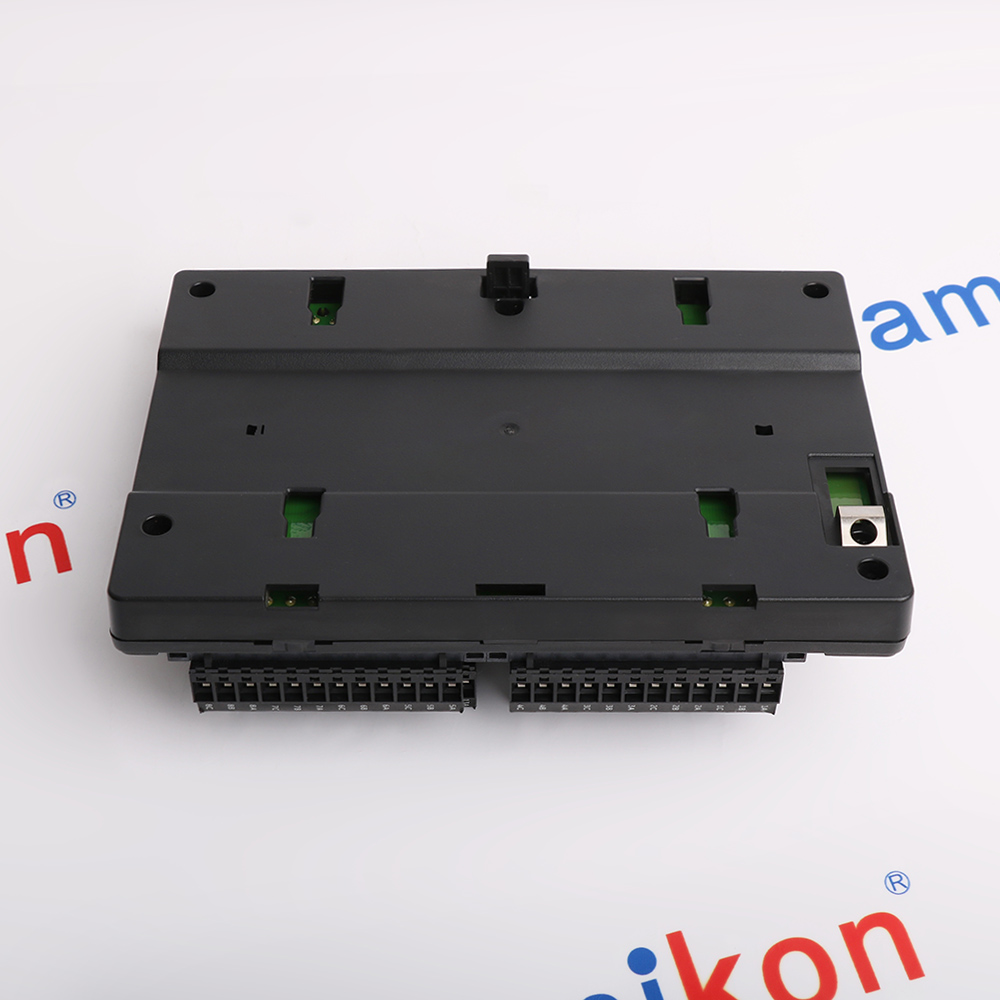

Chassis fixing points4 panel mounting holes
-
Module retention2 rotary locking cams
-
Grounding connection1 protective-earth clamping point
-
Rail retentionSpring-latch DIN rail fixing
View all additional
Alternative Names
BAI11 369B1868G5002
OC 6000e Analog input terminal base
OC 6000e BAI11 carrier
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
System integration
Replacement check
Manuals & support
SYSTEM INTEGRATION
Integrate BAI11 369B1868G5002 analog input terminal base
General Electric BAI11 369B1868G5002 is an analog-input terminal base used with compatible OC 6000e current and voltage input electronics. It provides the field-wiring and module connection interface for process instrumentation in configured power-generation and industrial process-control installations.
Match the BAI11 369B1868G5002 label, supply marking, connector arrangement and existing terminal assignment to the installed equipment. Compare the photographed interface with the wiring record before connecting the supplied article.
Retain the approved configuration and complete the installed equipment's documented signal and functional checks for BAI11 369B1868G5002. Use the applicable site drawings for pin assignments; connector appearance alone does not establish interchangeability.
Features:
- Marked supply voltage: 24 V DC
- Network connection hardware: 2 shielded RJ45 sockets
- Module mating interface: 3 multipole board receptacles
The BAI11 369B1868G5002 analog input terminal base requires appropriate configuration before system integration and commissioning.
INTERCHANGEABILITY
Verify BAI11 369B1868G5002 analog input terminal base
Verify the complete BAI11 369B1868G5002 article identity and its installed role before replacement. Compare the terminal or relay interface and the companion hardware with the existing unit.
Record the BAI11 369B1868G5002 wiring, grounding connection and mechanical retention before removal. Isolate the affected circuits and preserve the approved control configuration and relevant signal assignments.
After fitting the verified BAI11 369B1868G5002 article, restore the documented connections and configuration. Complete the affected input, output or relay checks and retain the acceptance results with the equipment record.
Features:
- Marked supply voltage: 24 V DC
- Network connection hardware: 2 shielded RJ45 sockets
- Module mating interface: 3 multipole board receptacles
The BAI11 369B1868G5002 analog input terminal base requires replacement verification against the complete installed configuration and current manufacturer documentation.
DOCUMENTATION STATUS
Browse the Manuals, Datasheets, Official Documents, Links
Important Notice: The linked files are Amikong-hosted reference documents. Match their product identity and scope to the supplied assembly, and consult the applicable manufacturer instructions before use. Accessories and additional documents are included only when expressly listed in the quotation.Features:
- Verify document identity before procurement or installation
- Match the complete order to the manufacturer document scope
- Accessories are supplied only when listed in the quotation
Documentation for the BAI11 369B1868G5002 analog input terminal base must be checked for document applicability before installation or commissioning.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
BUYER INFORMATION
Commercial terms without hidden steps
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
01
Shipping & delivery
-
DispatchEligible stock: same / next day
-
CarriersDHL, FedEx or UPS
-
Ship fromXiamen, China
-
Packed size17.30 × 12.50 × 6.30 cm
-
Shipping weight0.40kg
-
-
02
Payment & customs
-
PaymentBank transfer (T/T)
-
CurrenciesUSD · EUR · GBP · RMB
-
Credit cardsNot accepted
-
HS reference8538900000
-
OriginChina
-
-
03
Warranty & returns
-
Warranty12 months from AMIKON
-
InspectionLabel, condition and packing checks
-
ReturnsPrior RMA authorisation required
-
CompatibilityConfirm before order
-
OEM warrantyDoes not apply
-
Your written quote confirms the product identity, price, availability, lead time, warranty and shipping terms before payment.
-
Part checked
Full suffix recorded -
Condition checked
Label and appearance -
Packing checked
Antistatic protection -
Tracking supplied
Established couriers -
Sandy Lin
Dedicated account manager · 15+ years
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about BAI11 369B1868G5002
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
Does the BAI11 base perform analog-to-digital conversion?
BAI11 369B1868G5002 is the terminal and connection base. The companion MAI12 input electronics perform acquisition; a resolution or sampling-rate claim for the electronics must not be assigned to the bare base. -
Which terminal base is photographed with the MAI12 input module?
The exact paired-assembly listing identifies BAI11 369B1868G5002 with MAI12 369B1841G5003. Match the installed article and terminal assignment before selecting either part separately. -
How many field-terminal positions are present on this analog base?
The photographed BAI11 369B1868G5002 provides 48 removable field-terminal positions. Retain the installed channel and return-wire allocation when transferring the wiring. -
What supply marking appears on the BAI11 housing?
BAI11 369B1868G5002 is marked Power Supply: 24VDC. This marking does not establish a permissible voltage for every connected analog signal. -
How is the analog-input module retained on its base?
BAI11 369B1868G5002 has three multipole mating receptacles and two rotary locking cams. Inspect both the contact seating and the retainers before accepting the assembly. -
Are the two RJ45 sockets interchangeable with a field transmitter connection?
The two shielded RJ45 sockets on BAI11 369B1868G5002 belong to the module network connection hardware. Field analog wiring uses the removable terminals, not those network sockets. -
What identifies a BAI11 terminal-base order?
Quote BAI11 369B1868G5002 with the installed MAI module identification, terminal photographs and required quantity. Specify whether the order is for the base alone or a complete assembled input unit. -
Which BAI11 items should be inspected on receipt?
For BAI11 369B1868G5002, compare the 48-position terminal arrangement, RJ45 contacts, three module receptacles, earth connection and locking cams with the ordered base.
