The IS220PTCCH1A is a Thermocouple Input Module manufactured by General Electric for the Mark VI and Mark VIe Speedtronic turbine control systems. The IS220PTCCH1A provides the electrical interface between one or two I/O Ethernet networks and a thermocouple input terminal board, enabling precise temperature monitoring and control in gas, hydro, and steam industrial turbine applications.
The IS220PTCCH1A supports up to 12 thermocouple input channels per pack. When using two IS220PTCCH1A packs, the system can handle up to 24 thermocouple inputs. For Triple Modular Redundancy (TMR) configurations, three IS220PTCCH1A packs are used to provide maximum reliability and fault tolerance. The IS220PTCCH1A is compatible with standard thermocouple types E, J, K, S, and T, as well as mV inputs ranging from -8 mV to +45 mV. Both grounded and ungrounded thermocouple configurations are supported by the IS220PTCCH1A.
The IS220PTCCH1A supports up to 12 thermocouple input channels per pack. When using two IS220PTCCH1A packs, the system can handle up to 24 thermocouple inputs. For Triple Modular Redundancy (TMR) configurations, three IS220PTCCH1A packs are used to provide maximum reliability and fault tolerance. The IS220PTCCH1A is compatible with standard thermocouple types E, J, K, S, and T, as well as mV inputs ranging from -8 mV to +45 mV. Both grounded and ungrounded thermocouple configurations are supported by the IS220PTCCH1A.
Technical specifications for IS220PTCCH1A
-
Product ModelIS220PTCCH1A
-
Product ParametersThermocouple Input Module
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
In stock1 unit
-
Estimated Shipping Size6x12.8x8.3cm
-
ManufacturerGeneral Electric
-
Weight0.35 kg
-
Number of Channels12
-
Span-8 mV to +45 mV
-
A/D Converter16-bit
-
Common Mode Voltage+5 Volts
-
Normal Mode Rejection250mV
-
MicroprocessorAMD-K6 300 MHz
-
Operating temperature-30 to 65 °C
View all additional
Alternative Names
IS220PTCCHIA
IS22OPTCCH1A
IS2Z0PTCCH1A
ISZ20PTCCH1A
IS220PTCCH1A
Technical notes
The IS220PTCCH1A is designed for installation in the Mark VIe turbine I/O panel. The IS220PTCCH1A operates effectively within an ambient temperature range of -22°F to +149°F (-30°C to +65°C). The IS220PTCCH1A includes local ambient temperature sensing capability and a watchdog timer with automatic reset circuit for enhanced reliability.
SYSTEM & REPLACEMENT CHECK
Information needed before ordering
Three direct checks to secure your system integration and minimize ordering risks.
Information
Overview
Manuals
Application Notes
Product Applications
Module Insertion
Features:
- 12 thermocouple input channels per module
- Multiple thermocouple type compatibility (E, J, K, S, T)
- 16-bit A/D converter resolution
- Dual independent Ethernet network ports

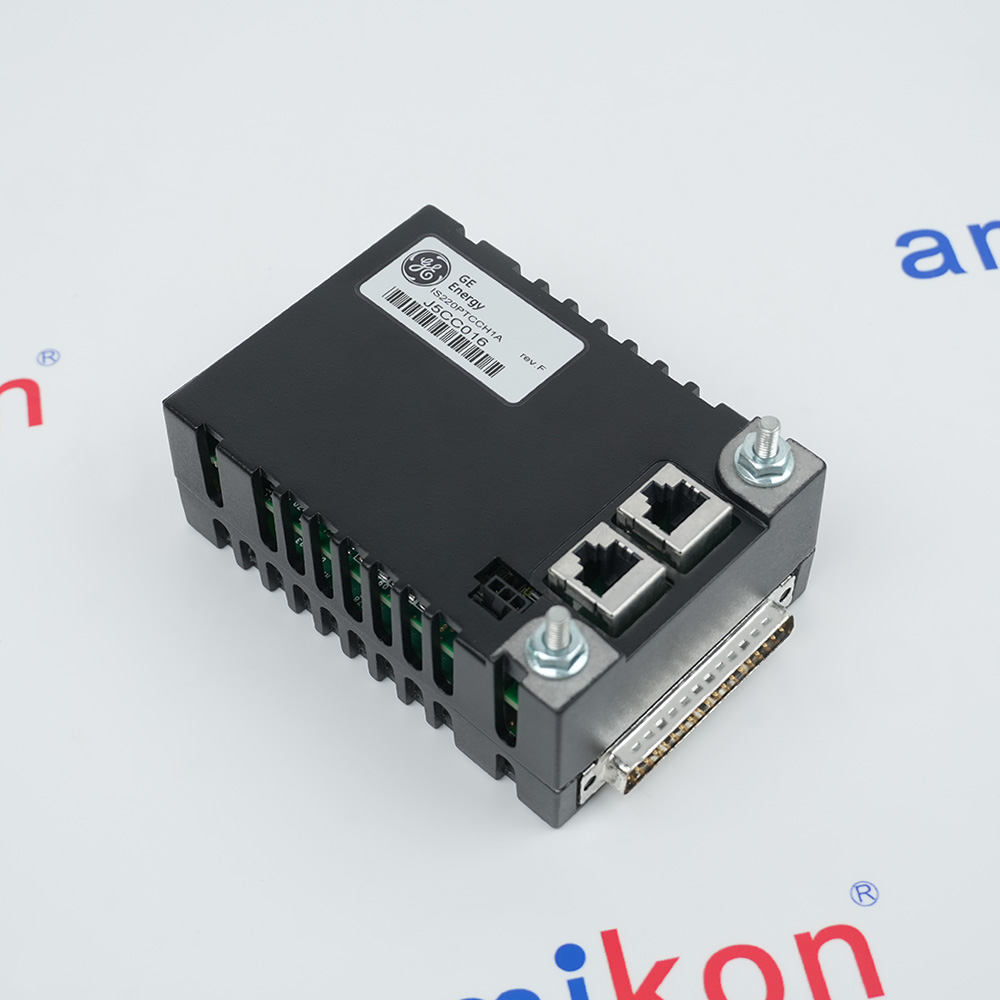

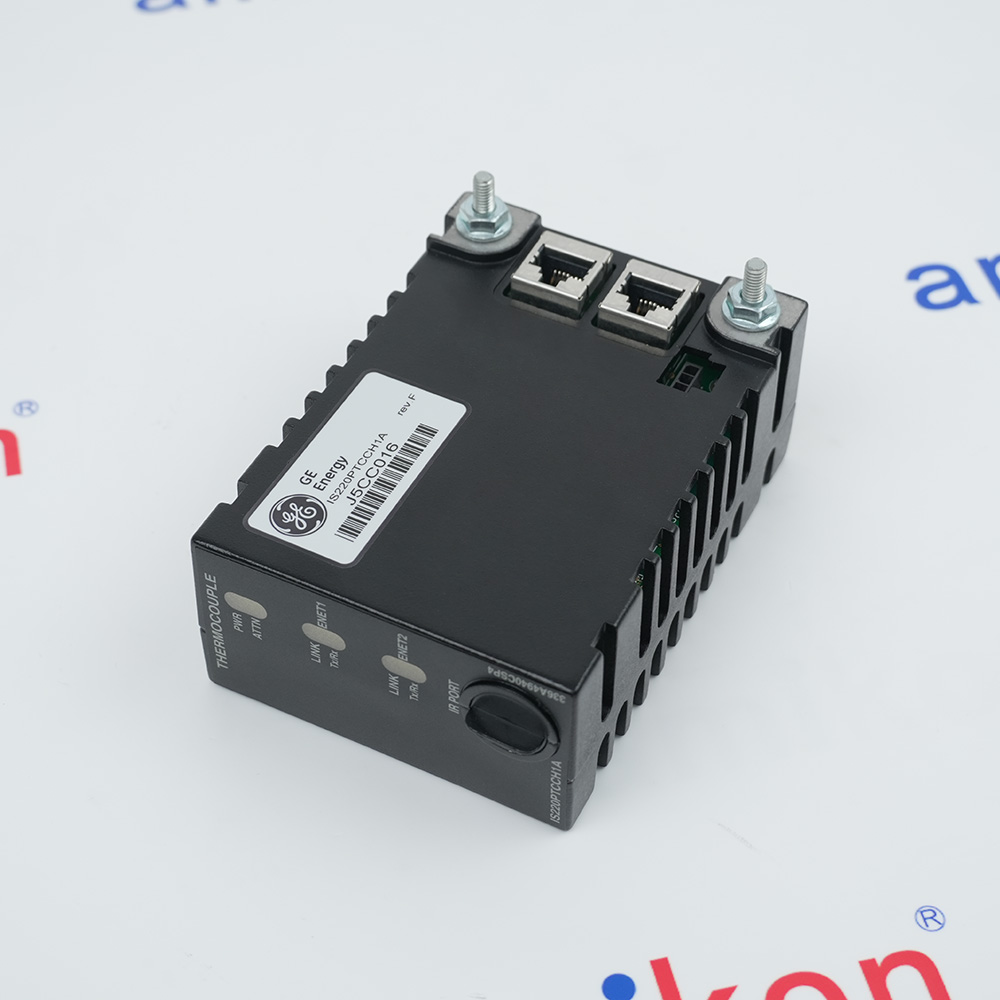

For network communication, the IS220PTCCH1A features dual independent RJ45 Ethernet ports for connection to the I/O Ethernet network. The IS220PTCCH1A also includes an infrared serial communication port for local diagnostics and status indication through multiple LED indicators. Data transmission between the IS220PTCCH1A and the controller is accomplished via the dual Ethernet connectors, with field devices connected through a DC-37 pin connector that interfaces directly with the associated terminal board.
The IS220PTCCH1A GE Thermocouple Input Module may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
GE IS220PTCCH1A Thermocouple Input Module Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The GE IS220PTCCH1A Thermocouple Input Module is a high-density temperature acquisition module used in the GE Mark VIe turbine control platform. It combines a BPPx processor board with a thermocouple acquisition board to collect, process, and transmit temperature signals from field thermocouples. The module supports 12 thermocouple input channels, accepts E, J, K, S, and T type thermocouples, and also supports -8 mV to +45 mV millivolt inputs.
The module provides integrated cold junction compensation, 16-bit signal conversion, input diagnostics, and dual Ethernet IONet communication. It is compatible with GE Mark VIe turbine control architectures including simplex, duplex, and TMR configurations. The IS220PTCCH1A is widely installed in gas turbine, steam turbine, and power generation applications for monitoring critical temperatures such as exhaust gas temperature, combustion area temperature, bearing temperature, and auxiliary system temperatures.
- Gas Turbine Control: Monitors exhaust temps, combustion stability, and bearing thermal states in GE Mark VIe
- Steam Turbine Control: Tracks chest, casing, and rotor temps to protect against thermal stress during startup/loading
- Thermal Power Plants: Collects boiler, HRSG, and superheater data for plant energy efficiency
- Balance of Plant: Oversees pumps, coolers, and fluid loops where thermal faults disrupt generation
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
Prepare the Terminal Board: Securely mount a compatible terminal board (such as the TBTC or STTC) IS220PTCCH1A, REV E - Thermocouple Input Terminal Board.
Connect I/O Pack: Directly plug the PTCCH1A I/O pack into the terminal board connectors using the DC-37 pin connection GE IS220PTCCH1A REV C GE Mark Vie IO PACK In Stock.
Secure Mechanically: Slide the threaded studs adjacent to the Ethernet ports into the mounting bracket GE IS220PTCCH1A REV C GE Mark Vie IO PACK In Stock.
Bracket Alignment: Adjust the bracket position so that no right-angle force is applied to the DC-37 connector between the pack and the terminal board GE IS220PTCCH1A REV C GE Mark Vie IO PACK In Stock.
Also searched as
Important notice
Manuals, software, firmware, cables, calibration data and accessories are included only when listed in the quotation. AMIKON is an independent supplier and is not affiliated with or authorised by the manufacturer.
This content has been produced using multiple sources. Takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
FREQUENTLY ASKED QUESTIONS
Questions buyers ask about IS220PTCCH1A
Direct answers about identity, compatibility, stock, warranty, payment and shipping.
-
What is the IS220PTCCH1A ？
The GE IS220PTCCH1A is a 12-channel thermocouple input module used in the General Electric Mark VI and VIe turbine control systems. -
Which terminal boards are compatible with the IS220PTCCH1A?
The module is compatible with the TBTC and STTC thermocouple input terminal boards. It is not compatible with the DIN-rail mounted DTTC board. -
What do the LED indicators on the faceplate signify?

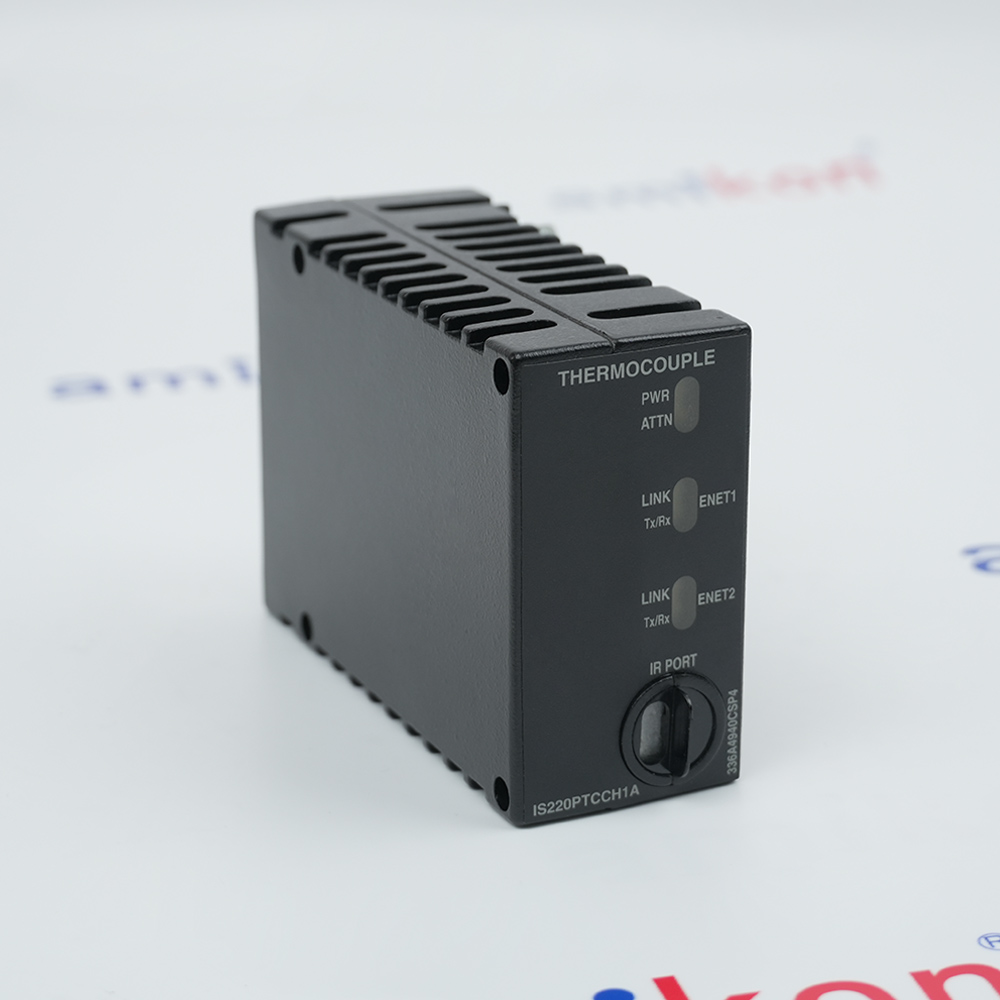

The LEDs on the front panel include status indicators for Link/Act (network connectivity), Power, Boot, Online, Flash, DC (power source status), and Diag (diagnostic status) -
Which thermocouple types are compatible?
It supports standard E, J, K, S, and T types in both grounded and ungrounded configurations.
