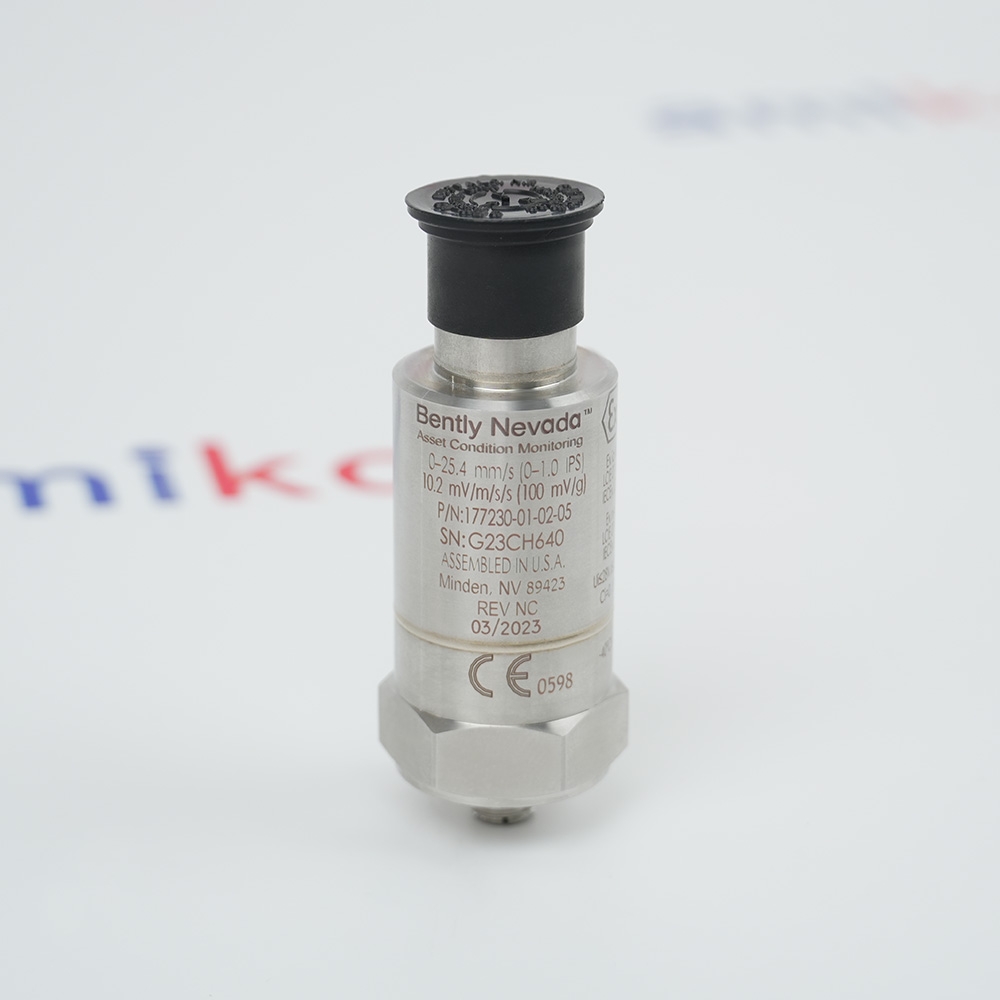

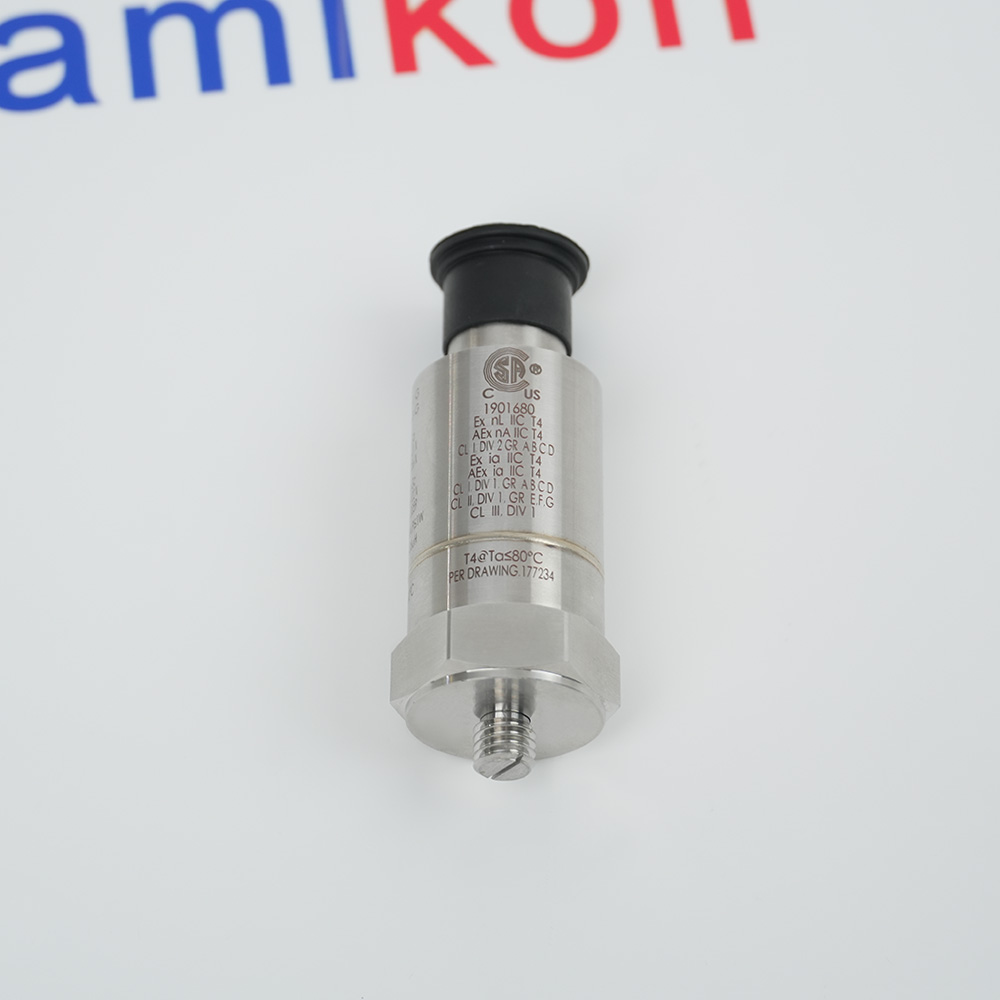

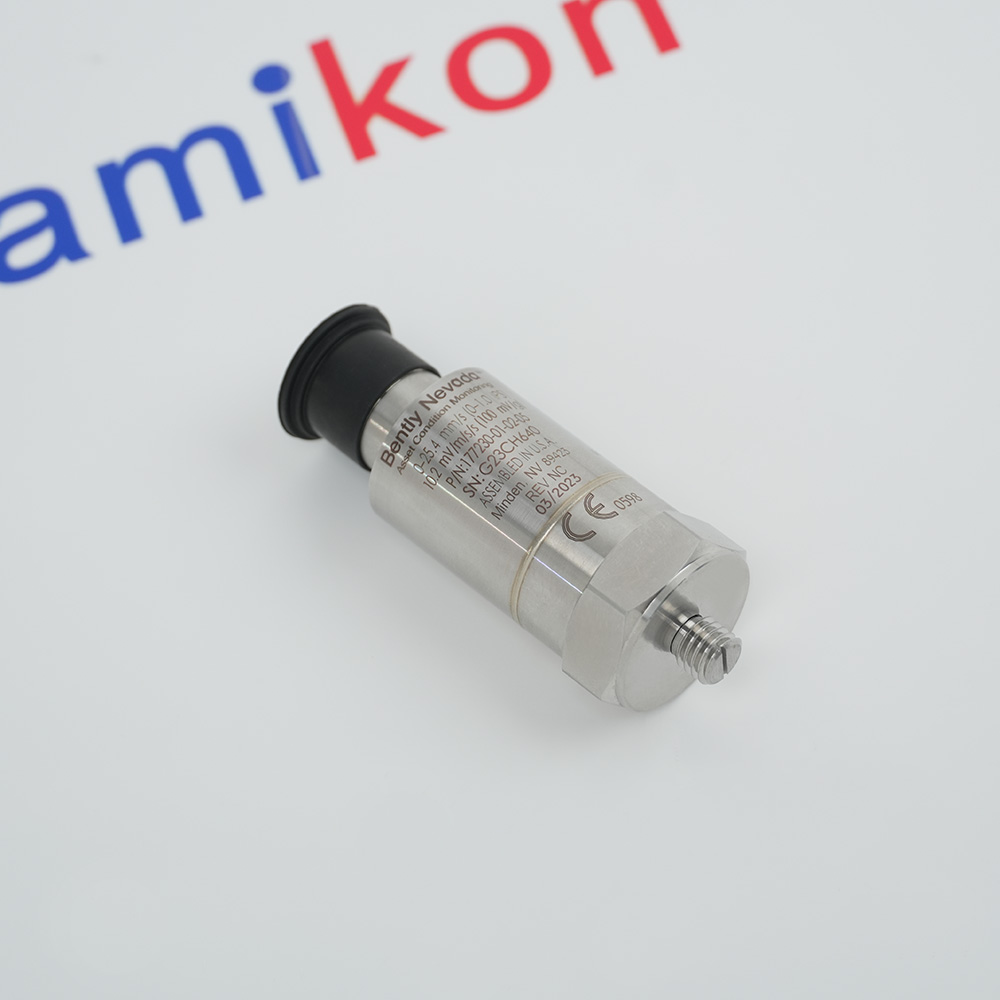

177230-01-02-05
Need Help? Contact US!
Call us: +86-18020776786
Proper, Ready.
Delivery time
Please indicate your delivery time
Product Information
Product Describe
01 0 – 25.4 mm/s (0 – 1.0 in/s)
02 3 Hz to 1 kHz (180 to 60 kcps) peak
05 Multiple Approvals
Seismic Transmitter
02 3 Hz to 1 kHz (180 to 60 kcps) peak
05 Multiple Approvals
Seismic Transmitter
Technical specifications for 177230-01-02-05
-
Product Model177230-01-02-05
-
Product ParametersSeismic Transmitter
-
Tariff Code8537101190
-
Country of originUSA
-
Place of shipmentXiamen, China
-
Estimated Shipping Size6.9x2.8x2.4cm
-
ManufacturerBently Nevada
-
Weight0.12 kg
-
Measurement Range0 – 25.4 mm/s (0 – 1.0 in/s)
-
Frequency3 Hz to 1 kHz (180 to 60 kcps) peak
-
ApprovalsMultiple Approvals (CSA/NRTL/C,ATEX/IECEx)
-
Sensitivity10.2 mV/m/s2 (100 mV/g) ± 20%
-
Full ScaleRange147 m/s2 ( 15 g) peak
-
Linearity± 1% of Full Scale
-
Factory New
These are new and current items that are procured from the manufacturer. -
New No Package
These parts are new. They have not been used, but their original packaging is no longer available. -
New In Opened Package
These parts are new. They have not been used, but their original packaging has been opened or the packaging is significantly aged. -
New In Sealed Package
Parts are new. They have not been used and still have their original package seal intact. -
New in Original Package
These parts are new. The packages were not originally sealed by their original manufacturer.
Warranty Period & Disclaimer
Amikon is not an authorized distributor unless otherwise specified, representative, or affiliate of the manufacturer of this product. All trademarks and documents are the property of their respective owners and are provided for identification and informational.
FAQs
-
What is 177230-01-02-05?+The Bently Nevada 177230-01-02-05 is a loop-powered, 316L stainless steel seismic transmitter designed to monitor roller element bearing housing vibration.
-
What type of signal does 177230-01-02-05 output?+It provides a 4–20 mA output proportional to the velocity vibration level.
-
Does 177230-01-02-05 have hazardous area certification?+Yes, the "-05" suffix indicates that it has multiple certifications, including CSA/NRTL/C and ATEX/IECEx.
-
How is the device mounted?+It is typically mounted using a 1/4-28 UNF mounting hole or M6/M8 adapters.
-
What power supply does 177230-01-02-05 require?+It uses a 24V DC power supply, typically a 4-20mA loop.
Get a quick price fo 177230-01-02-05
whatsapp
Inquiry
Our customer support team is always on call to help you with any form of consultation. You can inquire by phone or use us on the product page and "contact us" View Amikon terms and conditions
Product
MORE INFORMATION
Overview
Manuals
Technical notes
Product Applications
Comparison with Related Models
Features:
- Interfaces with PLCs and control systems (includingDCS and SCADA)
- Requires no field configuration or adjustments
- Incorporates protected interface
- Supports a variety of interface cables
The 177230-01-02-05 Bently Nevada Seismic Transmitter may still be available for purchase and support from Amikon Limited beyond End-Of-Life (EOL) by the manufacturer (OEM).
Bently Nevada 177230-01-02-05 Seismic Transmitter Manuals, Datasheets, Drivers, Link
Important Notice: Other accessories, manuals, cables, calibration data, software, etc. are not included with this equipment unless listed in the above stock item description. All prices are shown in USD.
The Bently Nevada 16710-33 is a 33-foot (10-meter) armored interconnect cable for industrial, harsh environments, specifically linking 330400 and 330425 series accelerometers to monitoring systems. It is primarily used for vibration monitoring of critical machinery like turbines and compressors.Used on high-speed or heavy machinery, including steam turbines, gas turbines, centrifugal compressors, and blowers.3-conductor, 22 AWG (0.5 mm²) shielded cable with a 3-socket plug at one end and terminal lugs at the other
- Motors: Small to medium-sized electric motors
- Pumps: Centrifugal and industrial process pumpss
- Fans and Blowers: Used in HVAC, cooling towers, and industrial ventilation
- Small Reciprocating Compressors: Where monitoring the casing for vibration is appropriate
- Centrifuges: Standard industrial centrifuges used in wastewater or chemical processing
- Small Turbines and Generators: Typically auxiliary or non-critical units in power plants
This content has been produced using multiple sources.Amikon takes no responsibility for the accuracy of this information. Always consult the original equipment manufacturer for the most up to date instructions and information.
The primary difference between the 177230-01-02-05 and 177230-00-01-05 Bently Nevada seismic transmitters lies in their measurement range and frequency response profile. While both are loop-powered 4-20 mA vibration sensors for general-purpose machinery, they are tuned for different monitoring sensitivities and signal calculation methods.
AA (Measurement Range): The 01 option doubles the full-scale range compared to the 00 option. Use the 00 model if you need high resolution for very small movements (up to 0.5 in/s), and the 01 model for standard industrial motors and pumps where vibrations might reach 1.0 in/s.
