ALL MANUFACTURERS

Digital Input Module

Points:32, commoned
Nominal input voltage:24 V DC
Operational voltage range:15–30 V DC
Absolute maximum input voltage:33 V DC
Absolute maximum reverse input voltage:–0.6 V DC
Input delay:<10 ms, On to Off or Off to On
ADC scan time:<1 ms for all 32 points

Digital Output Module

Points:16, commoned
Nominal output voltage:24 V DC
Operational voltage range:15–30 V DC
Absolute maximum output voltage:33 V DC
Absolute maximum reverse input voltage:–0.6 V DC
Leakage to load (Off-state):<1 mA
On-state voltage drop:<1 V DC @ 1.5 A
Loop-back scan time:<1 ms for all 16 points

ANALOG INPUT MODULE

Points:32, commoned
Nominal input current:4–20 mA DC
Operational current range:2–22 mA DC
Absolute maximum field voltage:33 V DC
Absolute maximum input current:50 mA DC
Input bandwidth (3dB):16 Hz
Source impedance:180 Ω
Resolution:12 bits
Absolute error:0.15% of full scale (20 mA)
Diagnostic:Force-to-value diagnostic (FVD)
Scan time:<1 ms for all 32 points

Contact And Non-Contact Thermometer

Offers a distance-to-spot ratio of 50:1
Works with most K-type thermocouples
Allows easy access to advanced features
with soft-key buttons and graphical display
Captures up to 99 points of data for
quick downloading to a PC through the USB connection
Quickly identifies problems with MIN, MAX, AVG, and DIF functions
Easily adapts to lighting conditions with a two-level backlight

IGCT controller module

Reverse Voltage:4500V+
Forward Current:250–5000A
Switching Speed:<100 μC
Trigger Voltage/Current:+15/-15V pulses
Turn-On/Off Time:300–500 ns

THYRISTOR/DIODE MODULE

R8 SINGLE MODULE SP KIT
Forward Voltage: 1200–2500V range
Average On-State Current:500–2000A
Surge Current :10–50 kA
Isolation: ≥2000 V AC
Junction Temperature:>125°C

Conversion board

Supply Voltage:24V DC
Analog Inputs: 0–10 V / 4–20 mA
Communication Ports: Terminals for RS-485
Isolation Rating: ≥1500 V AC
Power Handling: 5-10A
Operating Temperature: -25°C to +70°C

Inverter power board

DC Link Voltage Range: 380–525V/690V DC
Current Capacity:50–500 kW
Switching Components:high-power IGBT module
Gate Driver Outputs: 2–16 kHz
Isolation: 2.5 kV
Protocol Support:24V DC signals
Temperature: -10°C to +80°C
Humidity: <95% RH non-condensing

EXPANSION MODULE

EXPANSION MODULE
CONTROL BOARD MODULE
ZCU-14 PACKED CONTROL UNIT
REPLACES OBS MODEL 3AXD50000005164

SPAREPART KIT IGBT MODULE 900A

Voltage Class: 1200V
Continuous: 900A
Continuous: 900A
Switching Frequency: Optimized for ≤3–8 kHz
Conduction Losses: 1.8–2.5V
Isolation Voltage: ≥3000 V
Thermal Resistance:0.03–0.07 K/W
operating temperature: -40°C to +125°C

IGBT MODULE

DC Link:1200V
Continuous: 1400A
Pulsed Current: 2000–2800A
Frequency: ≤5 kHz typical
Max. withstand voltage of 1800V
Typical Motor Load: 500–2000 HP induction motors

IGBT MODULE

Voltage Class:1200V
Continuous Current : 650A
Maximum Current: Up to 1300A
Collector-Emitter Saturation Voltage : 2.0–3.0V
Isolation: ≥2500 V DC
Thermal Resistance <0.1°C/W
Voltage: +15V/-8V gate control
Operating Temperature: -40°C to +125°C

IGBT MODULE

Voltage Class: 1200V, 1700V
Continuous Current: 1400A
Pulsed Current : 1400A
Saturation Voltage:1.5–3.0V
Isolation Voltage: ≥ 2.5 kV
Operating Voltage: 15–25V DC
Turn-on/off voltage: +/-15V gate control

Handheld Digital Multimeter

DBV / dBm measurement
1 μV resolution in DC mV range
Current measurement 20 A
(30 seconds momentary, 10 A continuous)
Peak capture function to record transients as fast as 250 μs
Continuity / Conductance / Capacitance
Resistance and continuity
Duty cycle & pulse width measurement
Min / Max / Average with Time Stamp to record signal fluctuations
Real time and elapsed time modes
CAT III 1000 V / CAT IV 600 V safety rated

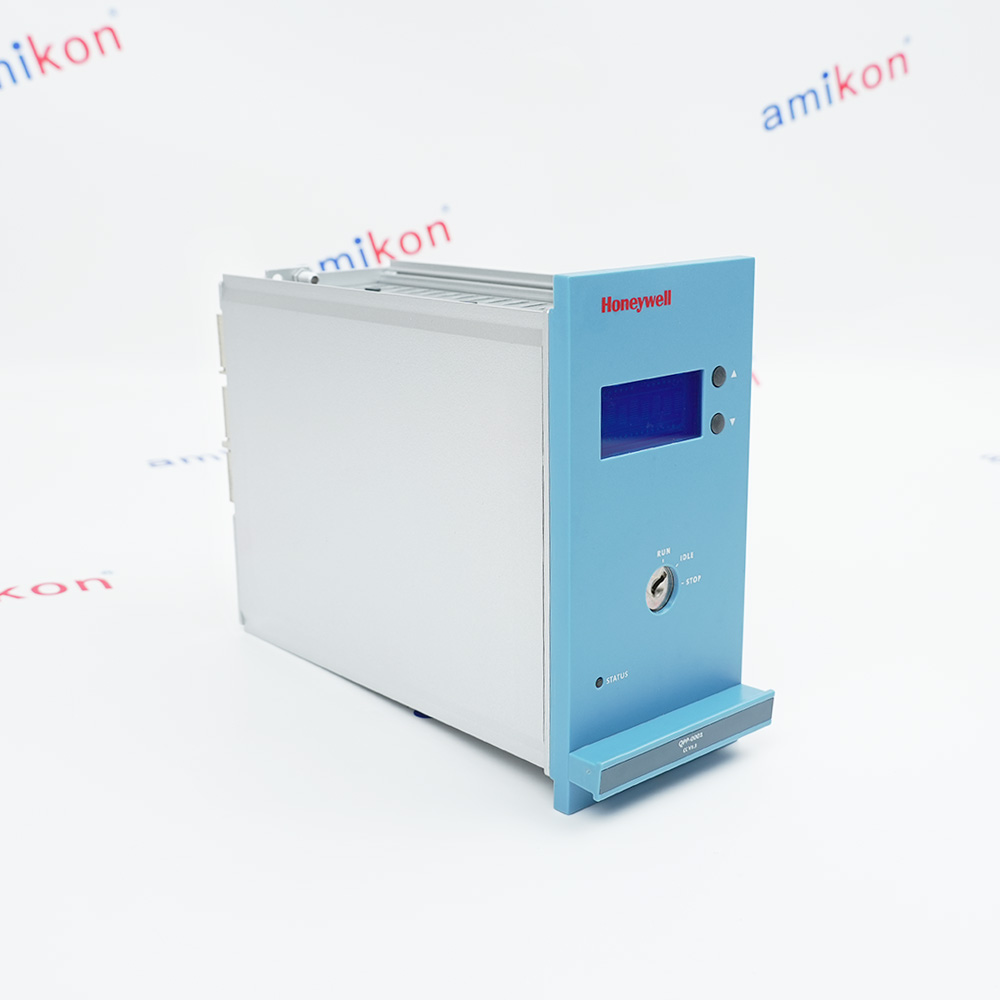

Processor Module

PROCESSOR MODULE
FIELD CONTROL UNIT
NO EXPLOSION PROTECTION
BASIC TYPE
TWO ETHERNET BUS PORTS
LED INDICATORS
S1 SERIES

Pulse Input Module

Number of inputchannels:8, isolated channels
Input frequency :0 to 10 kHz
Minimum input pulse width:40 µs
Pull-up resistance:68 kΩ (12 V DC or 24 V DC)
Filter:Filter for eliminating chattering can be set
Data update period:2 ms

ESB Bus Coupler Module

EC401 ESB Bus Coupler Module
5 Standard type with no explosion protection
E Standard type with explosion protection
0 Basic type
1 With ISA Standard G3 option
Function: ESB bus interface function
Number of connectable units: Max. 9 units (*1)
Transmission speed: 128 Mbps
Transmission distance: Max. 10 m
Current consumption: 0.5 A

ESB Bus Coupler Module

EC402 ESB Bus Coupler Module
5 Standard type with no explosion protection
E Standard type with explosion protection
0 Basic type
1 With ISA Standard G3 option

Single Acting Reverse Relay

Actuator Compatibility:spring-return actuators
Supply Pressure Range: 3–30 psi
Input Signal: 4–20 mA
Port Sizes: 1/4" NPT or G1/4 threaded ports
Temperature Range: -40°C to +85°C (-40°F to +185°F)

FieldMonitor External Transducer I/O Module

I/O MOUDULE
W/ TRANSDUCER
2-WIRE INTERFACE

I/O Pack processor board

Processor Type:Mark VI
Backplane Power: +5 VDC
Analog: ±10 V, 4–20 mA
Digital: 24 V DC
Processing Speed: 100–200 MHz
Non-Volatile Memory (Flash):16–64 MB

Safe loop-monitored digital output module

Ability to de-energizel
Ability to de-energize via secondary meansl
Cross talk between outputsl
Function of the suppression diodesl
Lead breakage in the (external) output wiringl
Short circuit of the outputs

3300 XL 8 mm Proximity Probes

330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
10 1.0 meter (3.3 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable
00 Not required

3300 XL 8 mm Proximity Probes

330101 3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
10 1.0 meter (3.3 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable
00 Not required

Velomitor CT

Sensitivity:3.94 mV/mm/s (100 mV/in/s)±5%.
FrequencyResponse:3.0 Hz to 900 Hz (180 to 54,000cpm) ±1.0 dB
TemperatureSensitivity:-8% to +5% typical over theoperating temperature range
TransverseResponse:Less than 5% of the axialsensitivity.
Output BiasVoltage:10.1 Vdc ± 1.0 Vdc, Pin Areferenced to Pin B
