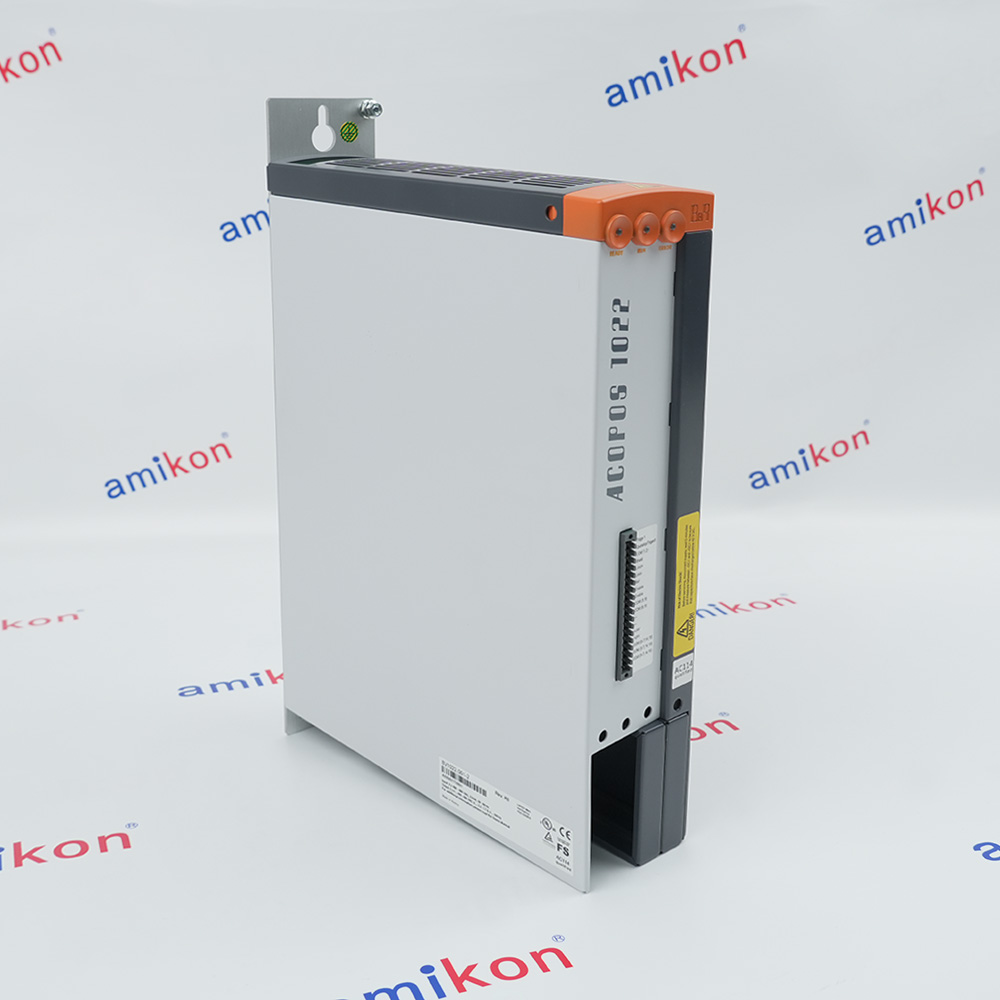

Servo Driver
SERVO DRIVE
INTEGRATED LINE FILTER
BRAKING RESISTOR
ELECTRONIC SAFE RESTART INTERLOCK
3.2 AMP
230 V
0.7 KW

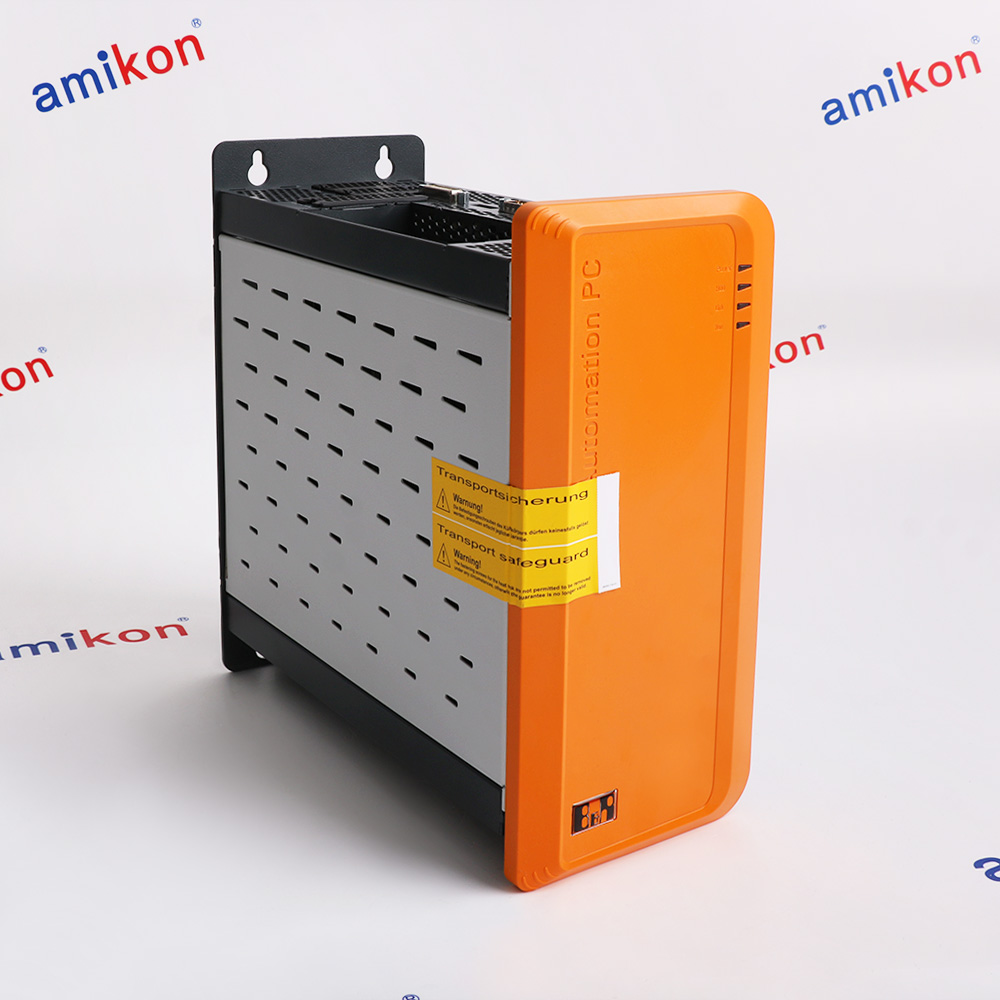

INDUSTRIAL COMPUTER
INDUSTRIAL COMPUTER

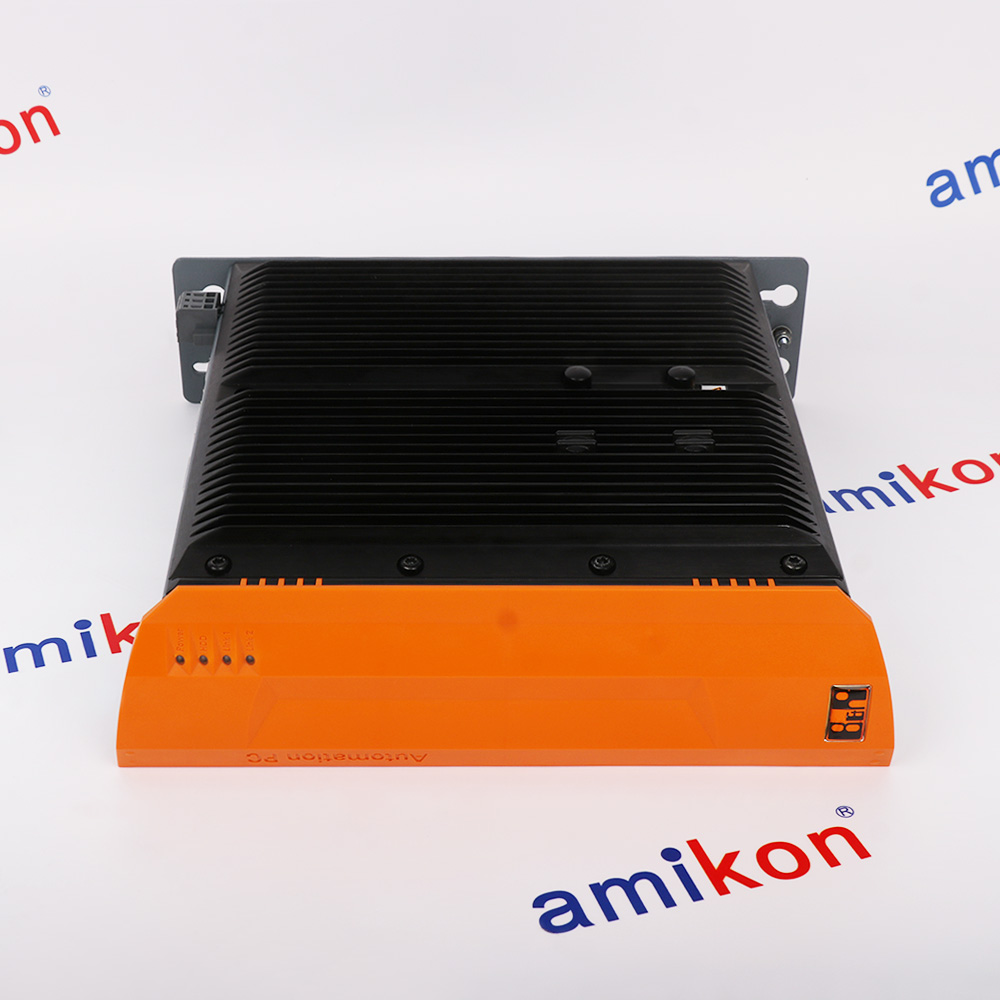

APC810 SYSTEM UNIT 1 SLOT
(PCI EXPRESS / PCI / DEPENDS ON BUS)
1 SLIDE-IN COMPACT SLOT
SMART DISPLAY LINK/DVI/MONITOR
2X RS232
5X USB 2.0
2X ETH 10/100/1000
24 VDC
Operator Panel System PP250
Model No.:4PP250.0571-K19
Type:PP250 Industrial HMI Panel
Display Type:TFT LCD with resistive touch
Protection Rating:IP65 (front panel)
Screen Size:5.7-inch
Resolution:320 × 240 pixels (QVGA)
Brightness:250 cd/m²
Color Depth:64K colors
Touch Technology:4-wire resistive
PC Control
Intel Atom E3800 processors (Bay Trail)
Up to quad-core CPU performance
Powerful graphics (Intel HD graphics)
Compact dimensions
2x Gigabit Ethernet
SDL/DVI or SDL3
1x USB 3.0, 1x USB 2.0
1x CFast slot
1x slot for interface options
Fanless operation
Control Module
Type:Renata 950 mAh
Controller:MTCX
Buffer time:10 ms
Quantity:2
Variant:RJ45, shielded
Transfer rate:10/100/1000 Mbit/s
Max. baud rate:1 Gbit/s
Variant:DVI-I
Type:SDL/DVI/Monitor
Digital input module
I/O module:16 digital inputs 24 VDC in 4 groups
Status indicators:I/O function per channel
Operation:0 to 60°C
Storage:-25 to 70°C
Nominal voltage:24 VDC
Hardware:≤12 ms
INVERTER MODULE
Nominal:750 VDC
Input voltage:25 VDC ±1.6%
Input capacitance:23.5 µF
Output voltage:24 VDC +5.8% / -0%
Continuous current per connection 1.1 A
Max. internal resistance:0.5 Ω
Enable 1 → 0, PWM off:Max. 20.5 ms
POWER PANEL
Type:FT color
Diagonal:10.4" (264 mm)
Resolution:VGA, 640 x 480 pixels
Buffer time:10 min
Variant:Lithium ion
Clock frequency:266 MHz
L1 cache:16 kB
Flash:2 MB (for firmware)
Cooling:Passive via heat sink
Mode/Node switches:2, 16 positions each
Accuracy At 25°C: Typ. 10 ppm (1 second) per day
Controller:SMC
Touch screen
Renata 950 mAh
Lithium ion
0.8 µs
Resolution 1 s
448 kB FlashPROM
1024 kB FlashPROM
300 kB SRAM
115.2 kbit/s
9-pin male DSUB connector
I/O function per channel, status

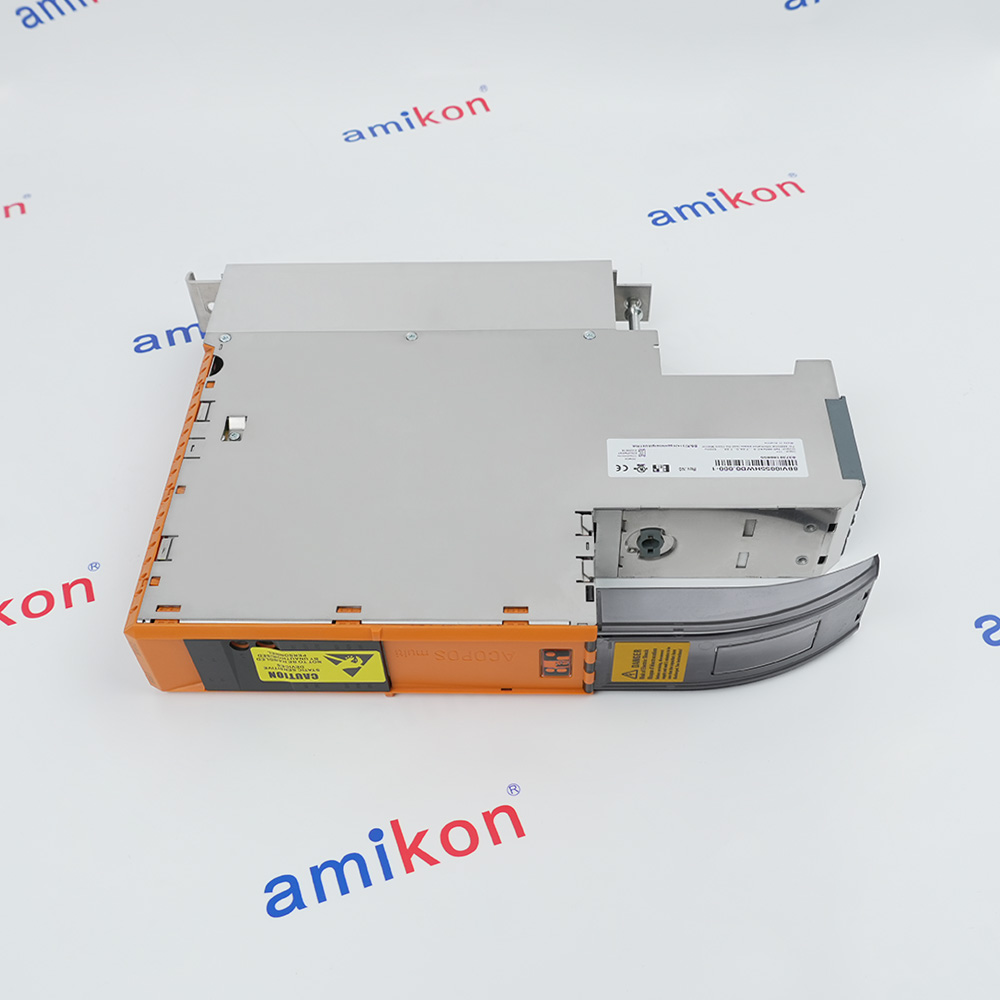

Automation Frequency Inverter
4 Drive Sizes
Integrated EMC Filter
Brake Chopper
1-Phase or 3-Phase
Power Supply Module
Input: 3x 380 to 480 VAC ±10%
Output voltage adjustable via X2X Link
Status information readable via X2X Link
Chopper output for connecting an external braking resistor
3-phase wide range input
Closed metal housing
Digital output module
8 A summation current per module
All outputs with single-channel diagnostics
for short circuit or overload
Extremely short cycle times
Outputs with short circuit protection
Integrated protection for switching inductances
