General Electric

Analog input module

Input Channels:16 single-ended
Input Signal Types:4–20 mA current loops
Resolution:16-bit resolution
Accuracy:±0.1% of full-scale range
Operating Temperature:
-40°C to +70°C (-40°F to +158°F)
Humidity:5–95% relative humidity (non-condensing)

BPPS Board Assembly

Input Voltage Range:24 VDC
Designed to support 24 VDC battery banks
Output Voltage:+5 VDC, ±15 VDC
Operating Temperature:-40°C to +70°C (-40°F to +158°F)
Humidity: Operates reliably at 5–95% relative humidity

WIND ENERGY MAIN CABINET CARD

Series: Mark VIe
Type: Wind Energy Main Cabinet Board
Input Voltage: Typically 24 VDC
Operating Temperature Range: -30°C to 65°C (-22°F to 149°F)
Storage Temperature Range: -40°C to 85°C (-40°F to 185°F)

Relay Output Terminal Board

Input Voltage: 24 VDC (nominal)
Output Voltage: 24 VDC (typically)
Output Current: 1-2A per relay
Relay Type: SPDT (Single Pole Double Throw) relays
Number of Relays: 8 (Typically, each with individual output terminals)
Relay Contact Rating:
Max Switching Voltage: 250 VAC or 30 VDC
Max Switching Current: 5A (AC or DC)
Max Switching Power: 120VA (AC) or 120W (DC)

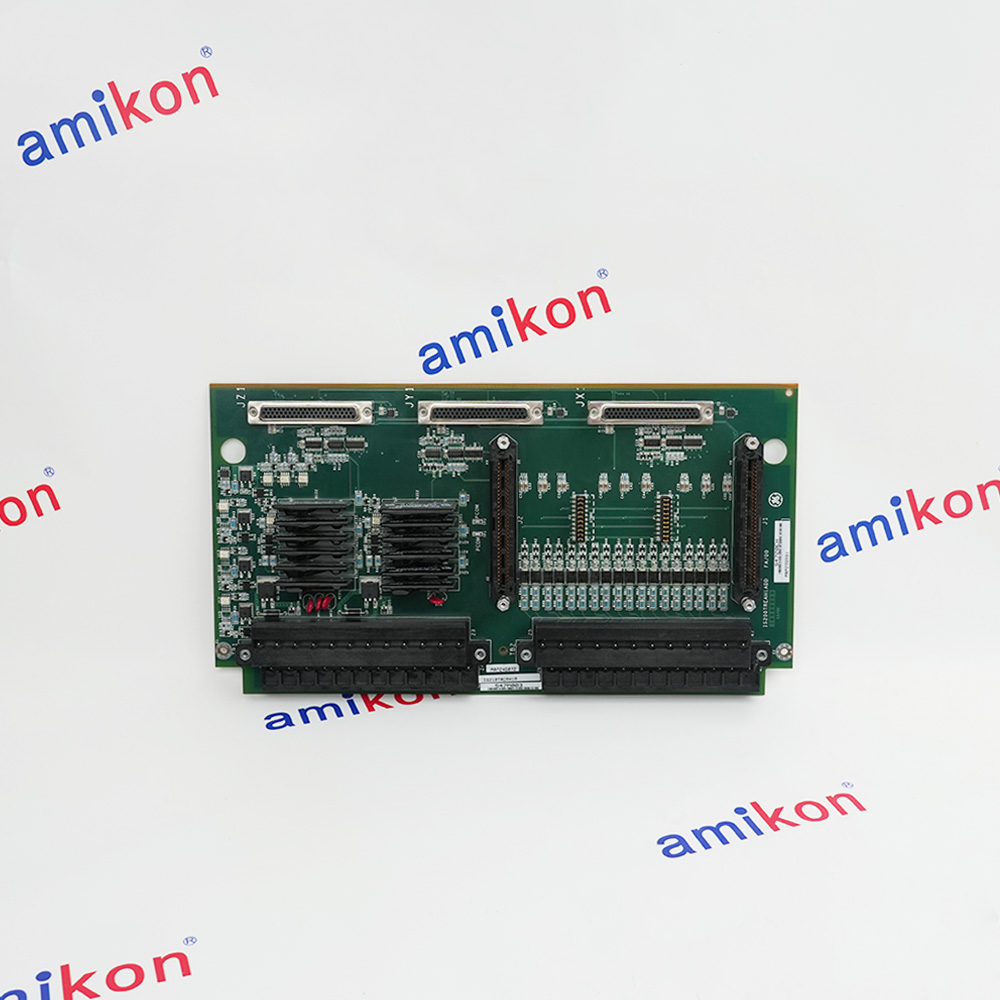

Analog Input/Output Terminal Board

Manufacturer:General Electric
Series:Mark VIeS
Part Number:IS200TBAIS1C
Functional Acronym:TBAI
Functional Description:Analog Input/Output Terminal Board
PCB Coating:S-style PCB coating

Rack Module

IC610CHS134
DISCONTINUED BY MANUFACTURER
RACK
24VDC POWER SUPPLY (10 SLOTS)

Bus controller module

Series:Genius Bus I/O
Part Number:IC697BEM731F
Operating Voltage:5.0 Volt DC
Backplane Current:1.3 Amps
Bus Cable:Belden 9182 type cable
Module Width:Single Slot
Description:Genius I/O Bus Controller
Application:IC66 PLC System
Location:IC66 PLC Rack
Connectors:3PL and 1PL Ports
LED Indicators:3 LED Indicators
Average Weight:2.0 Pounds

CENTRAL PROCESSING UNIT

IC697CPU711
DISCONTINUED BY MANUFACTURER
CENTRAL PROCESSING UNIT
64 MHZ
32-BIT FLOATING
1 MBYTE MEMORY
12K DISCRETE I/O
SERIES 90-70

Discrete input module

Series:PACSystem RX3i
Manufacturer:GE Fanuc
Part Number:IC694MDL645A
Rated Voltage:24 Volts DC (positive or negative logic)
No of Channels:Sixteen (16)
Input points:16 (1 group)
Wiring configuration:Positive / Negative Logic
Input Current:7 Milliamperes
Input signal range:0-30 VDC
Nominal Input voltage:24 VDC
Input current:7 mA per channel
Off state voltage:0 - +5 VDC
On state current:3.2 mA
Off state current:1.1 mA
On response time, typical:7 ms
On response time, maximum:7 ms
Product Lifecycle Status:Active

Analog input module

Series:PACSystem RX3i
Manufacturer:GE Intelligent Platform (GE IP); Emerson Automation (Current)
Part Number:IC694ALG221A
No of Channels:Four (4) input channels
Product Type:Input Module
Nominal Input signal:0-20 mA; 4-20 mA
Module Type:Analog
Channel update rate:2 ms
Product Description:Analog input module
Digital Resolution:12 bit
LED:1 Green "Module OK" LED
Common Mode Voltage:200 volts
Input Filter Response:325 Hz
Product Lifecycle Status:Active
Hot-Swapping:Not Supported
Accuracy:0.1 % full scale
Input filter response:325 Hz
Input impedance:250 ohms
Linearity:< 1 Least Significant Bit

Discrete input module

Series:PACSystem RX3i
Manufacturer:GE Fanuc
Part Number:IC694MDL645D
Rated Voltage:24 Volts DC (positive or negative logic)
No of Channels:Sixteen (16)
Input points:16 (1 group)
Wiring configuration:Positive / Negative Logic
Input Current:7 Milliamperes
Input signal range:0-30 VDC
Input Voltage Range:0 to 30 Volts DC
Nominal Input voltage:24 VDC
On State Voltage:11.5 - 30 VDC
Off state voltage:0 - +5 VDC
On state current:3.2 mA
Off state current:1.1 mA
On response time, typical:7 ms
On response time, maximum:7 ms
Product Lifecycle Status:Active

INPUT MODULE

IC600BF832
DISCONTINUED BY MANUFACTURER
INPUT MODULE
SERIES SIX
115 VAC
32 POINT

Discrete output module

Series:Series 90-30
Manufacturer:GE Fanuc; Emerson Automation (Current)
Part Number:IC693MDL741
Product type:Digital I/O
Compatibility:GE Fanuc 90-30 PLCs
Product Description:Discrete output module
Output points:16
No of Channels:Sixteen (16)
Peak module current draw:110 milliamps
No. of output groups:Two (2)
Module voltage input:5 Volts DC
Channels per group:Eight (8)
Rated voltage:12/ 24 Volts DC
Peak output voltage drop:0.5 Volts
Nominal output voltage:12 / 24 VDC
On response time, maximum:2 ms
Off response time, maximum:2 ms
Output Voltage Drop:0.5 volts, maximum
Off-state Leakage:1 mA maximum

VME Communications Board

Functional Abbreviation:VCMI
Indicator LEDs:Run, Fail, Status, Reset
Instruction Manual:GEH-6421
OEM:GE Energy
Series:Mark VI Control System
Part Number:IS215VCMIH2C
Product Type:VME Communication Card

DC power supply input module

Brand:GE Fanuc
Series:Versamax
Part Number:IC200PWR001
Product Type:DC Power Supply
Input Voltage:24 Volts DC
Output Voltage:5 Volts DC and 3.3 Volts DC
Input Power:11 Watts
Holdup Time:10 Milliseconds
Total Output:1.5 A maximum
3.3V Output Current:0.25 A maximum

Single Board Computer

Network: Dual Gigabit Ethernet ports.
USB: USB 2.0/3.0 ports for peripheral connectivity.
Serial: RS-232/422/485 interfaces.
Graphics: VGA, DVI, or DisplayPort for display output
Operating Temperature: -40°C to +85°C (ruggedized variants).
Certifications: MIL-STD-810 (shock/vibration), CE, RoHS.
Power Input: 5V or 12V DC

Bus Interface Unit

Series:Field Control
Manufacturer:GE Fanuc
Part Number:IC670GBI002D
Series:Field I/O control
Type:Bus interface unit
Part Number:IC670GBI002
CPU Redundancy:Supported
Supply Voltage range:18-30 VDC
Nominal supply voltage:24 VDC
Frequency:47 to 63 Hertz
Power consumption:16.8 Watts
Power Supply Output:6.5 VDC ±5%

CPU module

Series:RX3i PacSystem

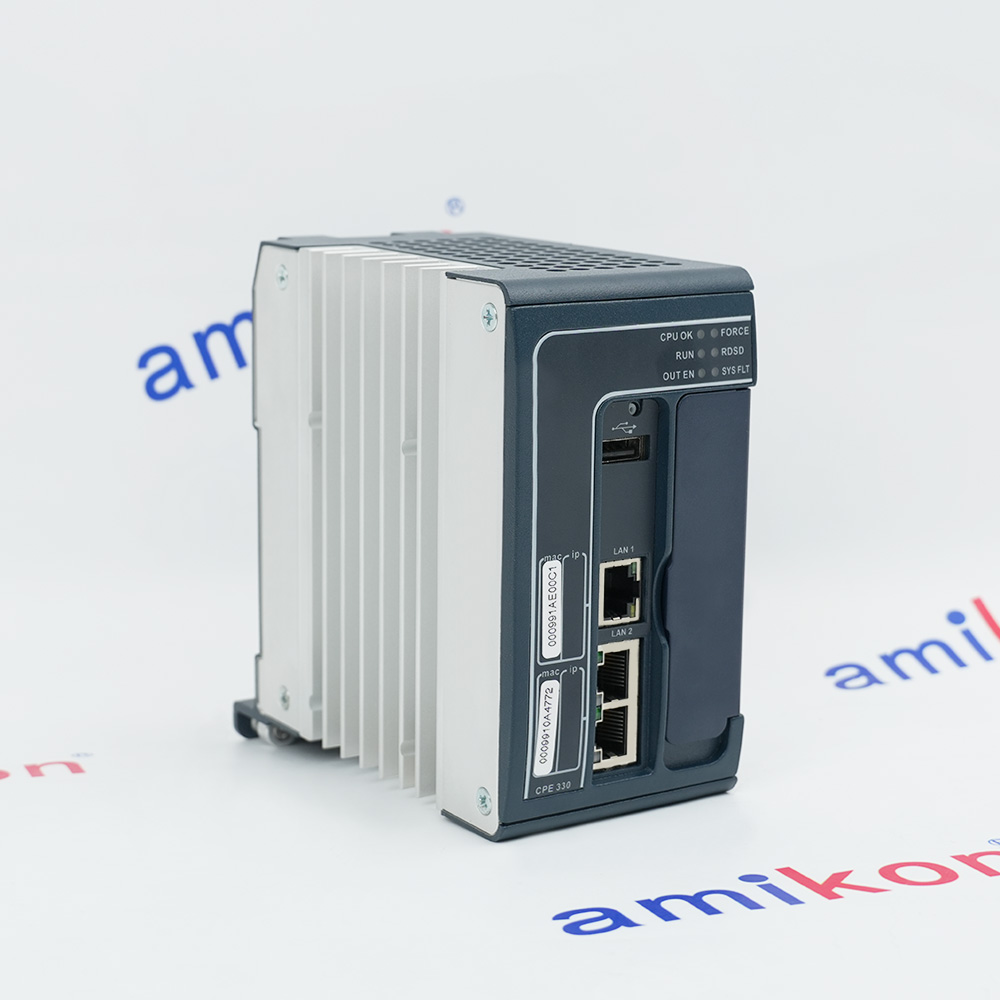

Part Number:IC695CPE330-AFAT
Product Type:CPU module
Processor Clock Speed:1.0 Ghz
RAM:64 MB
NVRAM:64MB
I/O Points:up to 32 K I/O
Controller Redundancy:Supported
Maximum Program Blocks:512
Maximum Block Size:128 kilobytes

I/O PACK

I/O PACK
SPEEDTRONIC GAS TURBINE CONTROL
MARK VI SERIES
TURBINE INPUT / OUTPUT
PRIMARY TURBINE PROTECTION
REGULATES HRSG (BOILER)

I/O Protection Module

Nominal: 24 V DC
Operating Range: 18–30 V DC
Channel-to-System: 1500 V AC/DC
ESD Protection: Up to ±8 kV
Digital Inputs: Accepts 24 V DC
Operating Temperature: -40°C to +70°C
Storage Temperature: -50°C to +85°C.
Humidity: 0–95% non-condensing.

PROFINET Controller Gateway Module

Series:Mark VIe/Mark VIeS
Product Type:PROFINET Gateway Module
Processor Type:1066 MHz EP80579 Intel
Operating Temperature:22 to 149°F
Manufacturer:General Electric

op Box A Module Board

Series: Mark VIe
Channels: Configurable for 16–32 analog/digital channels
Analog: 4–20 mA, 0–10 V, RTD
Digital: 24 VDC dry/wet contacts
Supply Voltage: 24 VDC nominal
Power Consumption: Typically ≤ 8 W
Operating Temperature: -40°C to +70°C (-40°F to +158°F)

Top Box B Module

Series: Mark VI
Supply Voltage: Typically 24 VDC
Power Consumption: Varies by load
Operating Temperature: -40°C to +70°C
Humidity: 0–95% non-condensing

Analog Input Module

Series:Versamax
Part Number:IC200ALG263
Product Description :Analog Input Module
Number of Inputs:15, single-ended
Input Voltage:-10 Volts to 10 Volts
Input Impedance:100K Ohms minimum
Resolution:+/- 15 bits
Update Rate:7.5 ms
LED Indicators:OK LED
