special remind
The warranty of industry automation components and parts that "amikon" 1-year warranty.
PSU3400 POWER SUPPLY
SITOP PSU3400
24 V/10 ASITOP PSU3400
24 V/10 A Stabilized power supplies
Input: DC 24 V(18...32 V)
Output: DC 24 V/10 A

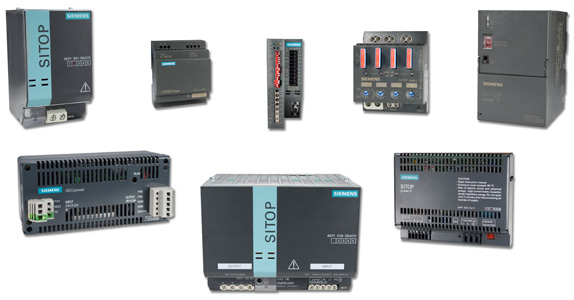

SITOP Power Supply
SITOP MODULAR
24 V/20 ASITOP modular 20 A
Stabilized power supply
input: 3 AC 400-500
Voutput: 24 V DC/20 A
Input 3-phase AC
Rated voltage value Vin rated 400 ... 500 V
Voltage range AC 320 ... 550 V
Wide-range input Yes
Overvoltage resistance 2.3 × Vin rated, 1.3 ms
Mains buffering at Vin = 400 V
Mains buffering at Iout rated, min. 6 ms; at Vin = 400 V
Power Supply
SITOP PSU100S/1AC/24VDC/20A
SITOP PSU100S 20 A
stabilized power supply input:
120/230 V AC
output: 24 V
DC/20 A

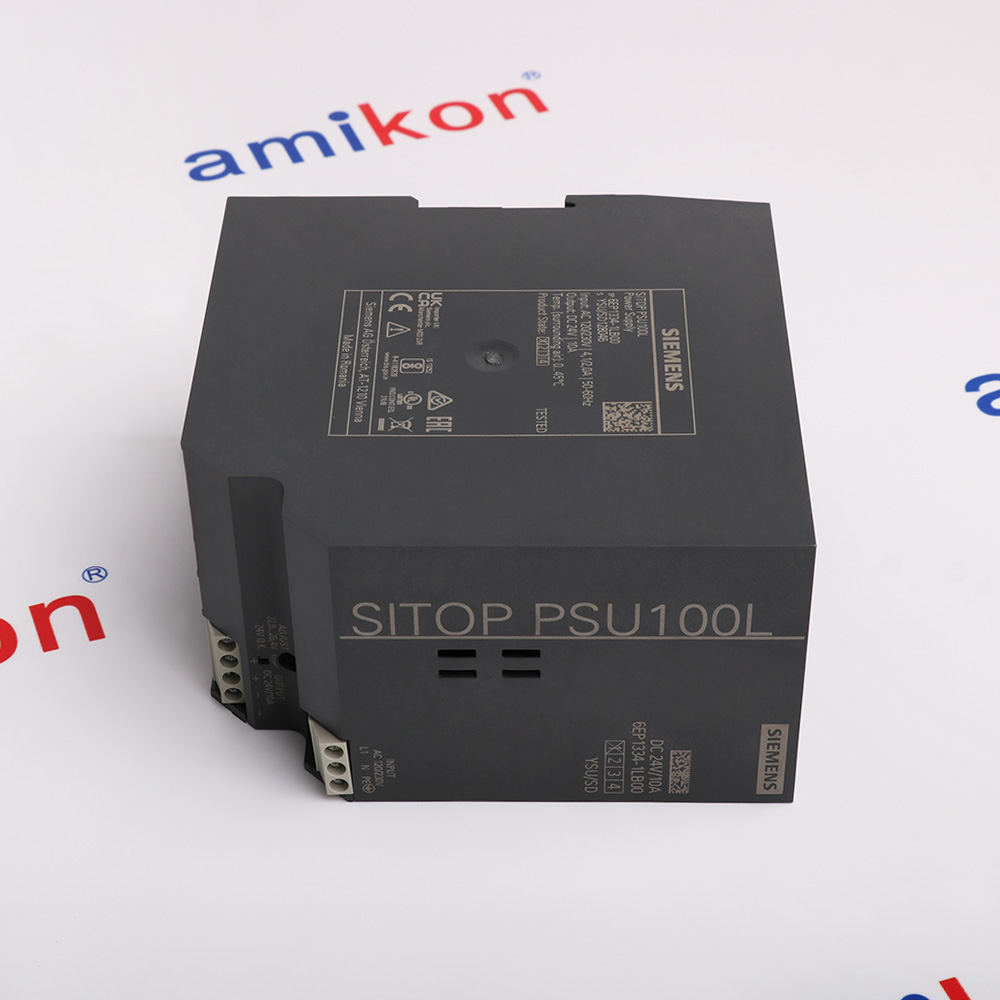

PSU100L Power Supply
SITOP PSU100L 24 V/10 A
Stabilized power supply input: 120/230 V AC,
output: DC 24 V/10 A
type of the power supply network:1-phase AC
supply voltage:120 V/230 V
input voltage:1 at AC:93 ... 132 V
input voltage 2 at AC:187 ... 264 V
line frequency:50/60 Hz
SITOP REDUNDANCY MODULE 10A
SITOP PSE202U 10A
Redundancy module
Input/output:
24 V DC suitable for
decoupling two SITOP
power supplies with
maximal per 5 A output current
SITOP Redundancy Module
SITOP PSE202U
Redundancy M
DC24V/40A
SITOP PSE202U
redundancy module
input/output: 24 V DC/40 A
suitable fordecoupling two
SITOP power supplies with
maximal per 20 A output current
