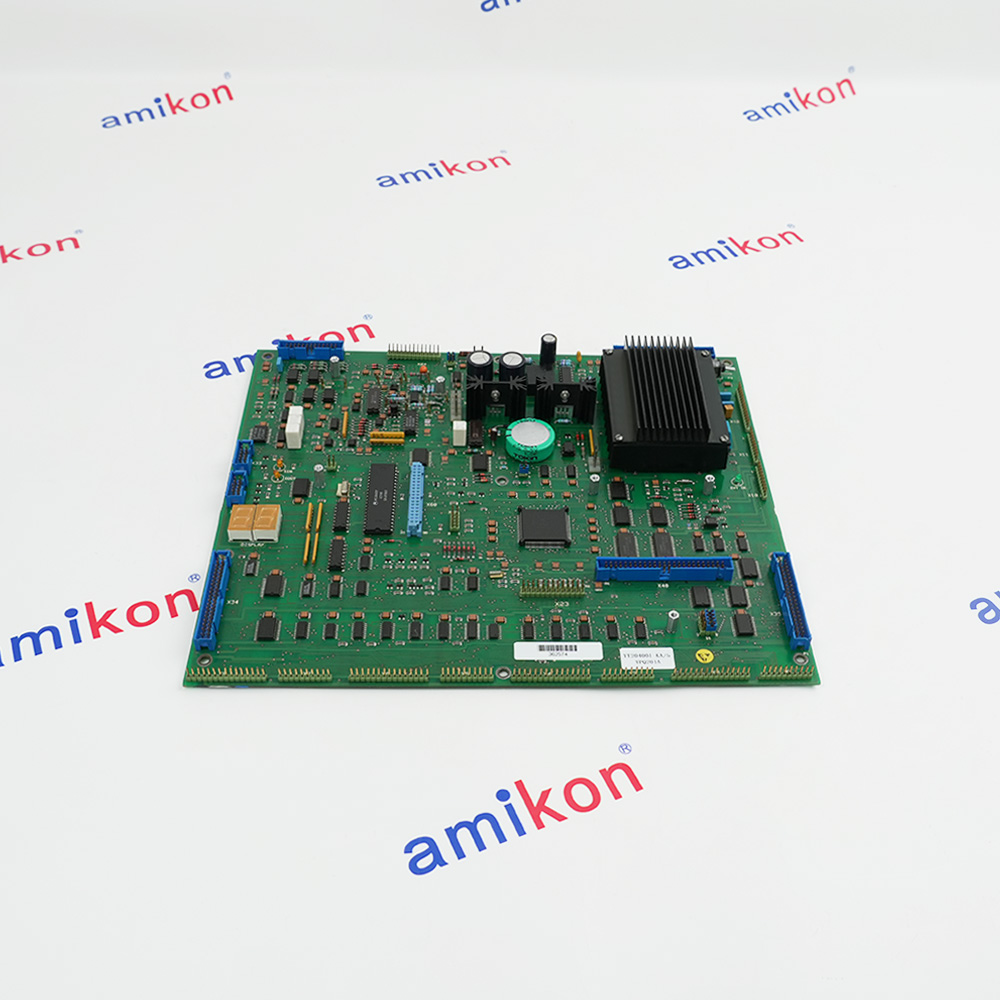

Control Board
Voltage Inputs:24 V DC
Power Consumption:5 W
Relay Outputs:8 A up to 250 V AC
Digital Inputs:24 V DC inputs
Operating Temp:-25°C to +70°C
Interfaces Module
Power Supply:24 V DC
Ethernet Port (TCP):- 10/100 Mbps RJ45
Modbus RTU (RS485)
Modbus TCP (TCP/IP) compliance
Isolation:1500 V AC
Operating Temp: -25°C to +70°C
THICK-FILM HYBRID
High Voltage Isolation: Up to 2–4 kV
Resistance Range: 10 Ω–1 MΩ
Power Rating: 0.25–2 W
Voltage Rating: 50–500 V DC/AC
Temperature Range: -55°C to +150°C
RoHS: Lead-free manufacturing.
UL 94V-0: Flame-retardant encapsulation
ANLOG TERM CABLE FLAME
Signal termination for 4–20 mA
Current: 4–20 mA
Voltage: 0–10 V DC, ±5 V DC
Temperature: RTD (Pt100/1000)
Cable Length: 10 meters (indicated by "-10" suffix)
Bend Radius: ≥8x cable diameter
Operating Temperature: -40°C to +105°C (-40°F to +221°F)
ANALOG INPT TERM CABLE
Current: 4–20 mA
Voltage: 0–10 V DC, ±10 V DC
Gauge: 18–22 AWG
Cable Length: 30 meters
Bend Radius: ≥10x cable diameter
Motor
Motor for circuit-breaker
springs charging M-MS-MAS aux
voltage 110-132Vdc
110-127Vac for HD4
VD4/R ESH
Analog input module
Function:4 AI: U, I
Number of Analog Configurable I/Os:0
Analog Inputs:4
Input Signal:U, I
Resolution:Analog Input 12 bit
Connection Type:Pluggable
Degree of Protection:Housing IP20
Ambient Air Temperature:
Operation 0 ... +60 °C
Storage -40 ... +70 °C
AC Servo Drive Amplifier Controller
Input: 200–690 V AC
Output: Matches input voltage
Power Range:0.75 kW to 560 kW
Current Rating:1,300 A
Torque accuracy: ±5% (SLVC mode)
Speed control range: 1:100 (SLVC)
AC Servo Drive Amplifier Controller
Input: 200–690 V AC
Output: Matches input voltage
Power Range:0.75 kW to 560 kW
Current Rating:1,300 A
Torque accuracy: ±5% (SLVC mode)
Speed control range: 1:100 (SLVC)
AC Servo Drive Amplifier Controller
Input: 200–690 V AC
Output: Matches input voltage
Power Range:0.75 kW to 560 kW
Current Rating:1,300 A
Torque accuracy: ±5% (SLVC mode)
Speed control range: 1:100 (SLVC)
IGBT Module
Max Collector-Emitter Voltage:1000 V
Rated Collector Current:1700 A
Max Pulsed Current :3000–3400 A
Gate-Emitter Voltage:±20 V
Switching Frequency Range:0.5 kHz – 5 kHz
IGBT Module
High speed switching
Voltage drive
Low Inductance module structure
Inverter for Motor Drive
AC and DC Servo Drive Amplifier
Uninterruptible Power Supply
Industrial machines, such as Welding machines
IGBT Module
Max Collector-Emitter Voltage:1400 V
Rated Collector Current:120 A
Max Power Dissipation:400–600 W
Gate-Emitter Voltage: ±20 V
Switching Frequency Range:1 kHz – 20 kHz
Temperature:150°C – 175°C
CONTROL UNIT
Processor:32-bit/64-bit microprocessor
Clock Speed: 500 MHz to 1 GHz
RAM: 512 MB – 2 GB
Flash Storage: 1–4 GB
Max I/O Points: Configurable up to 1,000+ points
Fieldbus: PROFIBUS DP
Standard: -25°C to +70°C (-13°F to +158°F)
Interface board
Power Supply: 24 VDC (±10%) or 110–240 VAC
1–2 x RJ45 Ethernet ports.
Serial ports (RS-232/485) for legacy devices
Fiber-optic or coaxial connectors
Operating Temperature: -20°C to +60°C
Humidity: 5–95% non-condensing
Pressductor PillowBlock Load cells
Rated Load: Up to 1000 kN
Overload Protection: 200% of rated capacity
Accuracy: ±0.1% FS (full-scale linearity).
Output Signal Analog: 4–20 mA (2-wire), ±10V DC
Output Signal Digital: Optional Profibus DP, Modbus RTU
Excitation Voltage: 10–30V DC
Frequency Response: ≤1 kHz
Pressductor PillowBlock Load cells
Compression/Tension: Up to 500 kN
Overload Protection: 150% of rated capacity
Accuracy: ±0.1% of full scale (FS) linearity error
Output Signal :Analog: 4–20 mA or ±10V DC
Rated Excitation Voltage: 10–15V DC
Bridge Resistance: 350 Ω ±1%.
Operating Temperature:
-40°C to +120°C (-40°F to +248°F)
ANALOG MODULE
Analog Inputs: 8–16 channels
Voltage Ranges: ±10V, 0–10V, 1–5V
Current Ranges: 4–20 mA, 0–20 mA
Analog Outputs: 4–8 channels
Voltage: 0–10V, ±10V
Current: 4–20 mA
Resolution:16-bit ADC/DAC
Power supply
Input Voltage AC Input: 100–240V AC (±10%), 50/60 Hz
Current: 10A
Efficiency: ≥85% (typical)
Operating Temperature: -25°C to +70°C (-13°F to +158°F).
Storage Temperature: -40°C to +85°C (-40°F to +185°F).
Certifications: CE, UL, IEC 61131-2, RoHS
Control Board
Operating Voltage: Typically 24 V DC
Input Voltage: 380-460 VAC
Output Voltage: 0-460 VAC
Output Frequency: 0-60 Hz
Output Power: 1.5 kW
Efficiency: Up to 98%
Motor Control Board
Digital Inputs:24 Vdc
Analog Inputs: 0–10 V / 4–20 mA
Operating Temperature: -10°C to +50°C
Humidity: 5–95% non-condensing
Voltage: 24 Vdc (±10%)
Consumption: ≤ 10 W
Standards: CE, UL, cUL, RoHS
PCB Board
Operating Voltage: 24 Vdc (±10%).
Data Rate: 100 Mbps
Operating Temperature: -40°C to +70°C
Humidity: 5–95% non-condensing
