Invensys

Remote Expansion Chassis

Power Supply:18 to 32 VDC
Operating Temperature: -20°C to +70°C (-4°F to +158°F)
Humidity: 5% to 95%, non-condensing
Output Channels: 16 or 32
Output Voltage: 32 VDC
Certifications: IEC 61508 SIL3

Communication Module

Input Voltage: Usually 24 VDC.
Operating Temperature: -20°C to 60°C.
Storage Temperature: -40°C to 85°C.
Humidity: 10% to 95% RH, non-condensing.
Ingress Protection (IP): Typically IP20

Termination assembly

32 channel
voltage monitor132 V AC or 150 V DC
maximumLogic Zero - 0 to 20 V AC; 0to 20 V DC
Logic One - 80 to 132 V AC;75 to 150 V DC
Input Current for Logic One;2.6 mA
maximumChannel isolation provided by
termination assembly

TERMINATION ASSEMBLY

VOLTAGE MONITOR TERMINATION ASSEMBLY
SCREW TERMINAL
EXTERNAL SWITCH
CABLE TYPE 4
FBM 241 125V
VMON, +5A
RELAY OUT
P/N - P0916AS

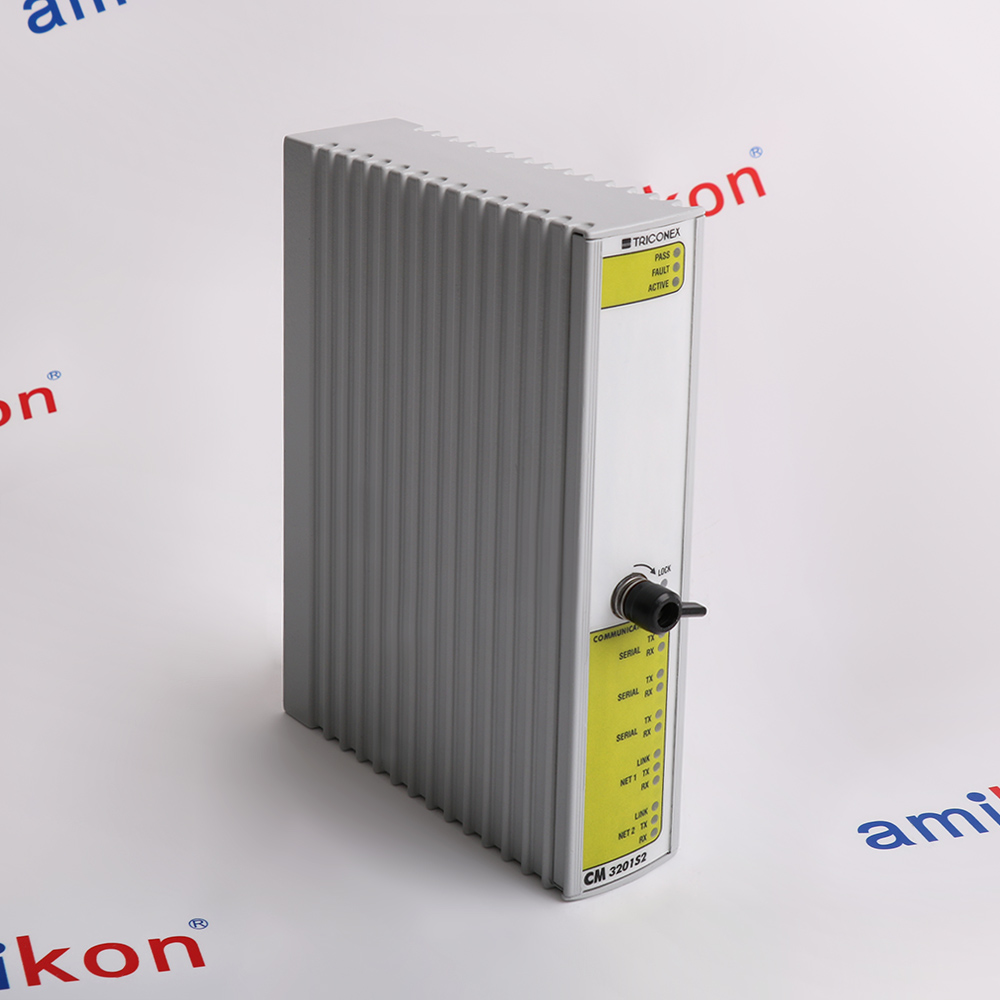

Communication Module

Tricon
TCM SERIES
2 X NET LINK PORTS
4 X 9 PIN SERIAL PORTS
1 X 9 PIN DEBUG PORT

Control Module

Nominal Voltage 24 VDC
Type Control Module
Output Signals  32, commoned
Voltage Range 16-32 VDC
Maximum Voltage 36 VDC
Voltage Drop < 2.8 VDC @ 1.7A, typical
Power Module Load < 13 watts

Bus Connector

I/A Series
Bus Connector
Distributed Control Systems

4 Channel I/O Module

Channel Isolated 4 input
4 channel isolated output
Field bus base
0-20mA
Control system (DCS)

MAIN PROCESSOR MODULE

MAIN PROCESSOR MODULE
ENHANCED EMP II
24 VDC
LED INDICATORS

TRICON MAIN CHASSIS

81008
TRICON MAIN CHASSIS VERSION-8

BASEPLATE HORIZONTAL

P0914XA
BASEPLATE HORIZONTAL
200SERIES
DINRAIL
MT FIELDBUS

CABLE ASSEMBLY 10FEET

4000098516
CABLE ASSEMBLY 10FEET

I/O cable

Part Number: 4000094-316
Type: I/O Cable
Compatibility: Compatible with TRICONEX safety systems, typically used with I/O modules and other system components for data transmission.
High-quality insulation for protection against environmental factors.
Designed to withstand high temperatures, vibration, and harsh industrial environments.
Reliable performance for continuous monitoring and control in critical processes.

Digital Output Module

Operating Voltage:380V AC
Input Frequency:50/60Hz
Processing Speed:120 MIPS
Memory Capacity:1MB RAM, 16MB Flash
Communication Interfaces:Ethernet, DeviceNet, FF

Channel Isolated 16-input 24vdc

Manufacturer: Foxboro
Model: P0914XB0C SF0627B894
Type: Channel Isolated 16-input Module
Input Type: Digital Inputs
Input Voltage: 24 VDC
Operating Temperature Range: 0°C to 60°C

Communication module

Manufacturer: Triconex
Model: 7400195-210
Type: Communication Module
Operating Temperature: 0°C to +60°C (32°F to 140°F)
Storage Temperature: -40°C to +85°C (-40°F to 185°F)
Humidity Range: 5% to 95% RH

Dido Panel Module

Dido Panel
7400143-530
Rev A/ A1
Model: 9853-6xx
Volt: 4-20 Ma
8-320 Ma
3000400-530
Rev A
Typ/type: Umk-se 11,25-1
Weight : 150 Gm

CONTACT/DC INPUT MODULE

CM400YH
CONTACT/DC INPUT MODULE
FBM07
CONTACT DC INPUT

Terminal Block Connector Assembly

P0916SR0B
TERMINAL BLOCK CONNECTOR ASSEMBLY

Temperature Module

P0916JT
COMPRESSION TERM ASSEMBLY
FBM211
EXT POWERED (I/A PLANT)

COMPRESSION TERM ASSEMBLY

P0916JT
COMPRESSION TERM ASSEMBLY
FBM211
EXT POWERED (I/A PLANT)

INPUT MODULE

P0916KP0B
INPUT MODULE
NUMBER OF COMMUNICATION INPUTS: 16
NUMBER OF TERMINATIONS: 32 - SCREW
CABLE TYPE: 4
CABLE CONNECTION: 37 PIN [M] CONNECTION

Terminal Board

P0916SA0A
DISCONTINUED BY MANUFACTURER
PLC MODULE WITH DIN MOUNT
8 SCREW TERMINALS
CABLE TYPE 4 INPUT
120 VAC
125 VDC

CABLE ASSEMBLY

P0916FH
DISCONTINUED BY MANUFACTURER
CABLE ASSEMBLY
TYPE 4
1 METER LENGTH
FBM2XX
TERMINAL CABLE
