Bently Nevada

3300 XL NSv proximity probe

Technology: Eddy Current
Diameter: Standard 8 mm (0.315 in
Sensitivity: 200 mV/mil (7.87 mV/µm) ± 5%
Power Requirement: Requires -18 V to -26 V DC

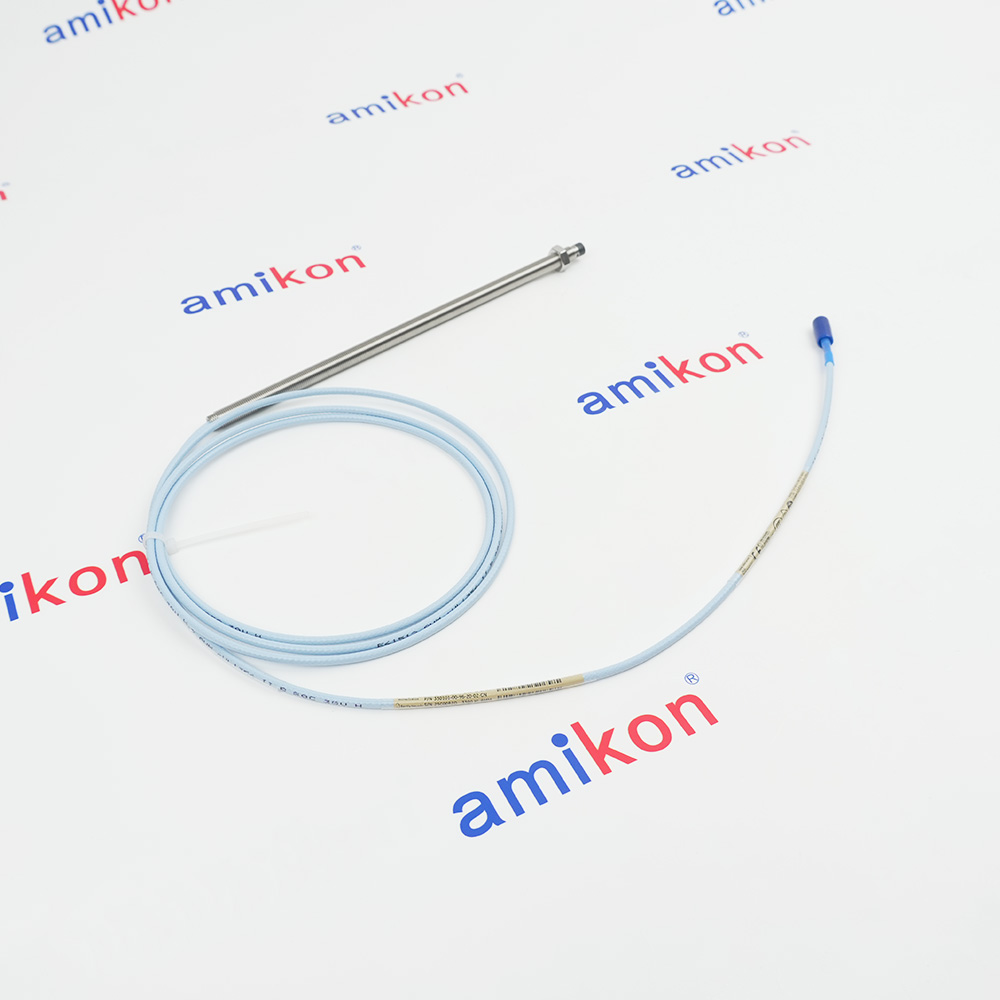

3300 NSv Proximity Probes

330904 3300 NSv Probe
M8X1 thread,without armor
Minimum unthreaded length:0 mm
Maximum length: 250 mm
05 0.5 meter (20 in)
02 Miniature coaxial ClickLoc connector
standard cable
05 Multiple Approvals

3300 NSv Proximity Probes

330903 3300 NSv Probe
M8X1 thread,without armor
Minimum unthreaded length:0 mm
Minimum length: 90 mm
05 0.5 meter (20 in)
02 Miniature coaxial ClickLoc connector
standard cable
05 Multiple Approvals

3300 XL 8 mm Proximity Probes

330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 0 mm
Minimum case length: 60 mm
10 1.0 meter (3.3 feet)
12 Miniature coaxial ClickLocconnector
FluidLoc cable
00 Not required

3300 XL 8 mm Proximity Probes

330104 3300 XL 8 mm Probe
M10 x 1 thread,with armor
Minimum unthreaded length: 0 mm
Minimum case length: 40 mm
90 9.0 meters (29.5 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

177230 Seismic Transmitter

177230 Seismic Transmitter
01 0 – 25.4 mm/s (0 – 1.0 in/s)
02 3 Hz to 1 kHz (180 to 60 kcps) peak

Interconnect Cable

Part Number: 16925-50
Description: Interconnect Cable Assembly
Conductor:Typically 22 AWG
Temperature Range:  -40°C to +105°C (-40°F to +221°F)

990 Vibration Transmitter

990 Vibration Transmitter
05 0-5 mils pp (0-125 μm pp)
70 7.0 meters (23.0 feet)
02 Bulkhead screws
00 Not required

3300 XL 50 mm Extension Cable

3300 XL 50 mm Extension Cable
0 8 0 8.0 meters (26.2 feet)
3 7 FluidLoc ext. cable w/ armor
0 0 No Approvals

3300 XL 8 mm Proximity Probes

330101  3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 5.2 in
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330101  3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 4.6 in
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

Extension Cable

Description:Shielded Extension Cable
Length:40 feet (12.2 meters)
Temperature Range:-40°C to +150°C (-40°F to +302°F)
Voltage Rating:300 V AC/DC
Bend Radius:Minimum 25 mm (1 in) during installation
Shielding Effectiveness:>90% noise rejection

3300 XL 11 mm Proximity Probes

330704  3300 XL 11 mm Probe
M14 x 1.5 thread,with armor
Minimum unthreaded length:20 mm
Minimum length:100 mm
90 9.0 meters (29.5 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

3300 XL 11 mm Proximity Probes

330703  3300 XL 11 mm Probe
M14 x 1.5 thread,without armor
Minimum unthreaded length:20 mm
Minimum length:100 mm
90 9.0 meters (29.5 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

3300 XL 11 mm Proximity Probes

330703  3300 XL 11 mm Probe
M14 x 1.5 thread,without armor
Minimum length:60 mm
90 9.0 meters (29.5 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

3300 XL 8 mm Proximity Probes

330103  3300 XL 8 mm Probe,
M10 x 1 thread,without armor
Minimum unthreaded length: 20 mm
Minimum case length: 70 mm
50 5.0 meters (16.4 feet)
02 Miniature coaxial ClickLocconnector
standard cable
00 Not required

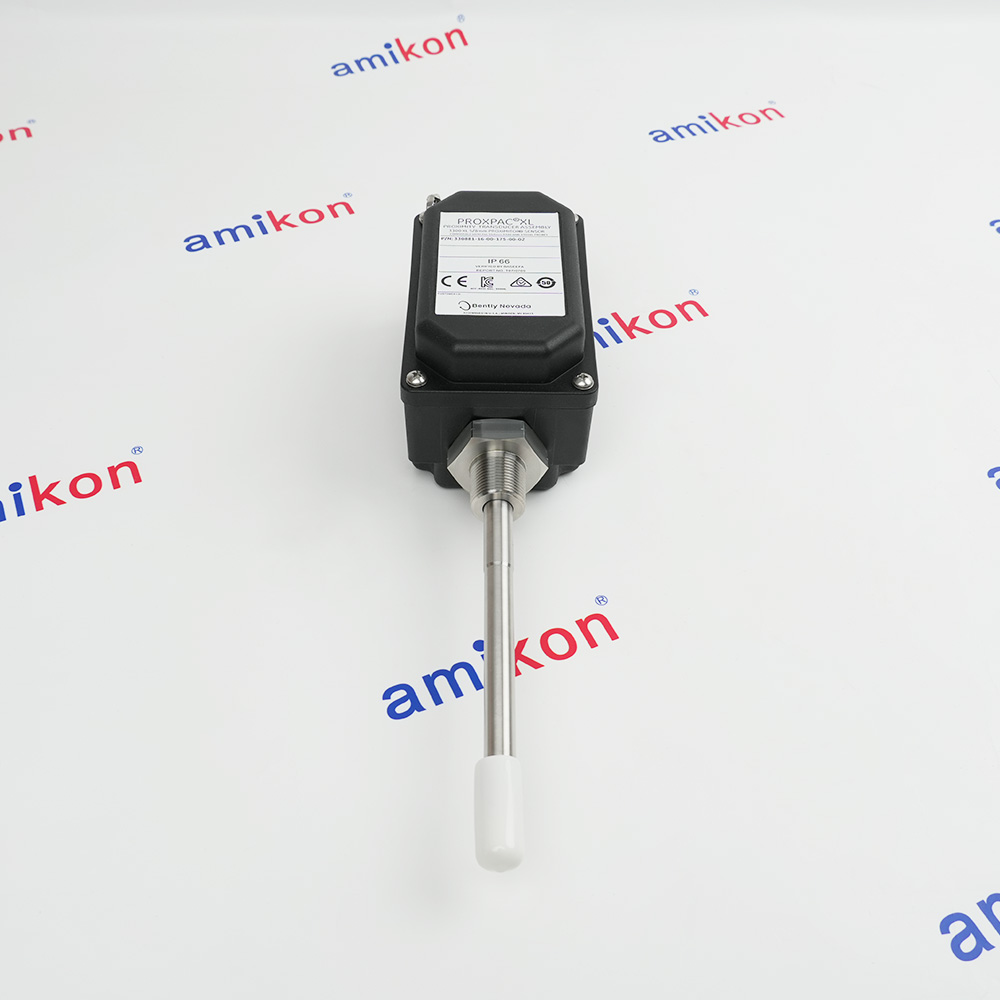

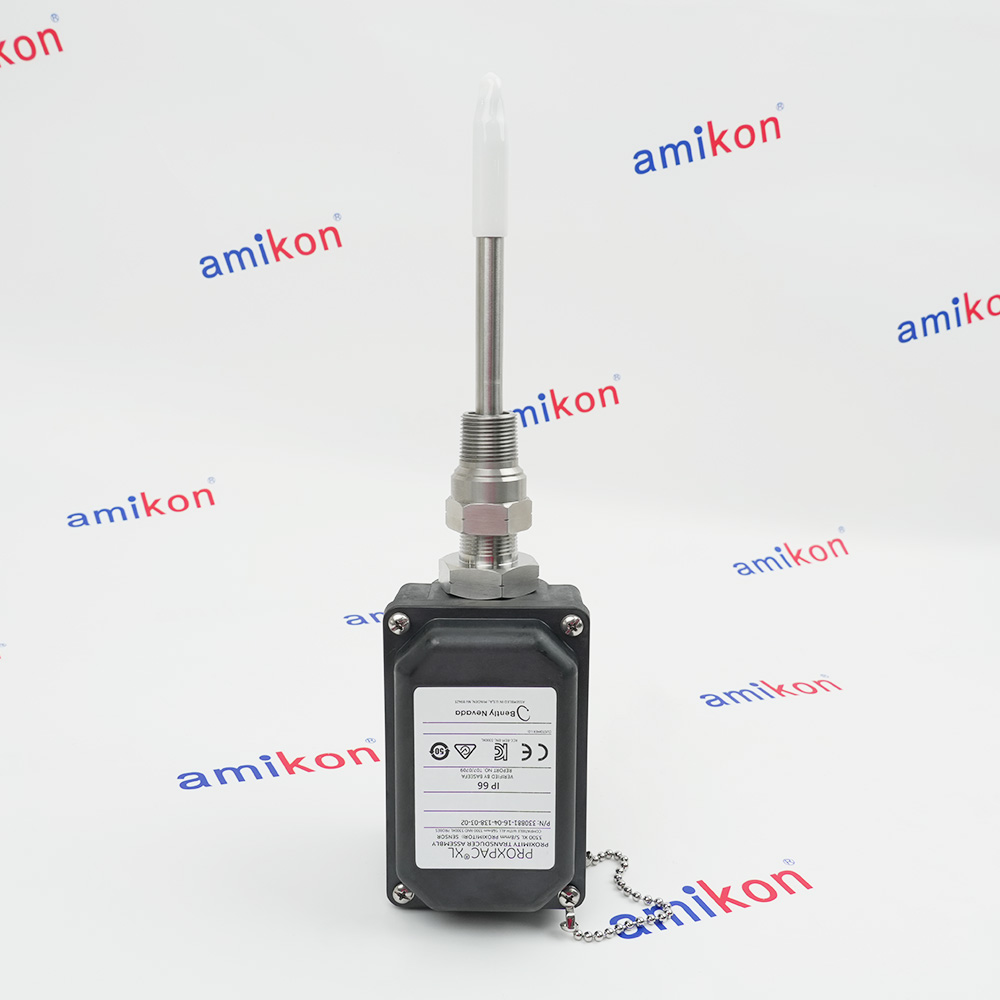

Proximity ProbeHousing Assemblies

06 3300 XL 8mm probe
05 0.5 m (20 in)
No standoff adapter = 00
7.7 in (195.58 mm) = 077
03 One 3/4-14 NPT plug
One 3/4-14 to 1/2-14 NPT reducer
One cable seal grip with grommets for
the following cable sizes:
• 1/8 to 3/16 inches
• 1/4 to 5/16 inches
• 5/16 to 3/8 inches
023/4-14 NPT

3300 XL Standard Extension Cable

3300 XL Standard Extension Cable
070 7.0 meters (22.9 feet)
01 Armored cable
05 CSA, ATEX, IECEx  Approvals

3300 NSv Proximity Probes

330910 3300 NSv Probe
M10X1 thread, witharmor
Minimum unthreaded length:00 mm.
Minimum length: 100 mm
50 5.0 meters (16.4 feet)
02 Miniature coaxial ClickLoc connector
standard cable
05 Multiple Approvals

3300 XL Standard Extension Cable

085 8.5 meters (27.9 feet)
00 Standard cable
00 Not required

3300 XL 11 mm Reverse MountProbe

330706-005-046- CC-DD-EE M10 x 1 threads
10 1.0 meter (3.3 feet)
02 Miniature ClickLoc coaxialconnector
00 Not required

991 Thrust Transmitter

06 0.6-0-0.6 mm
70 7.0 meters (23.0 feet)
02 Bulkhead screws
01 CSA Division 2

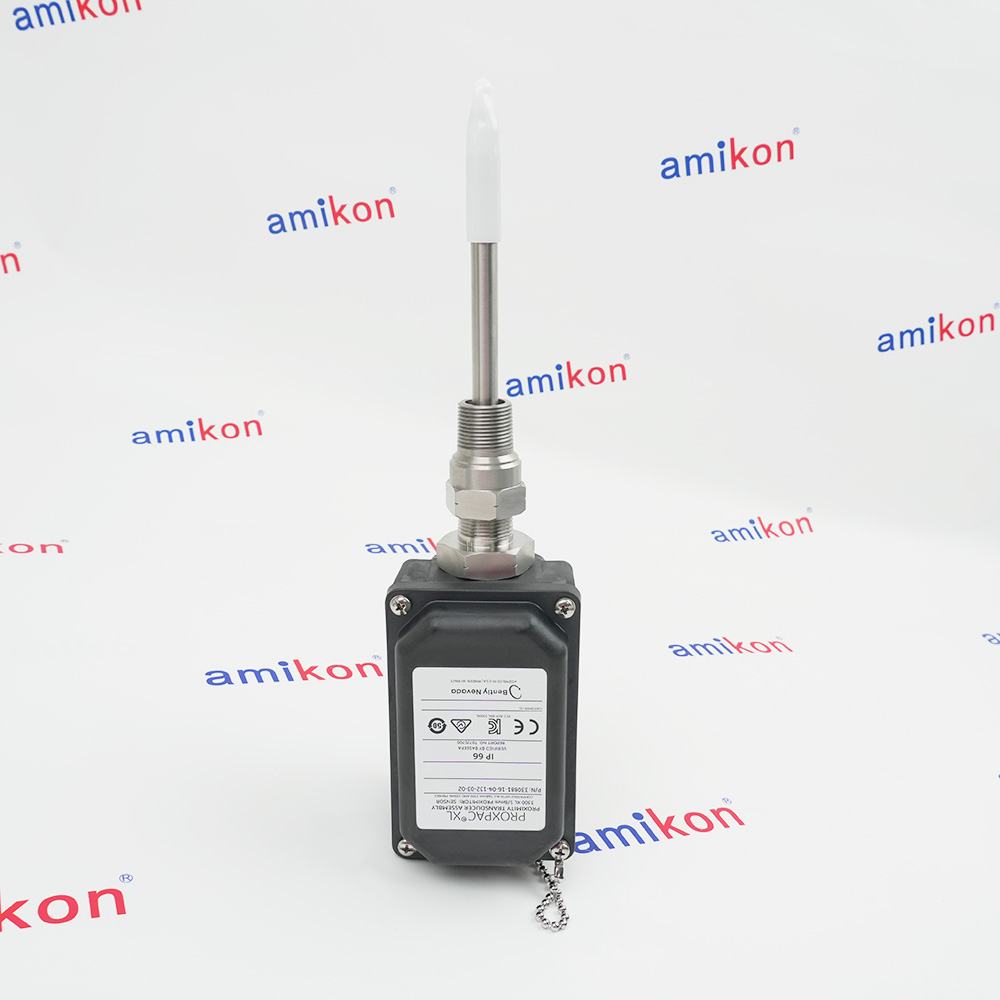

Proximity Probe HousingAssemblies

A dome cover that screws into the body of the housing
Threaded ports for conduit connections
A probe sleeve of optional lengthl 0-rings
A reverse mount proximity probe
A thread seall Optional conduit fittings
An optional standoff adapter

3300 XL 8 mm Proximity Probes

330101  3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 2.7 in
50 5.0 meters (16.4 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals

3300 XL 8 mm Proximity Probes

330101  3300 XL 8 mm Probe
3/8-24 UNFthread, without armor
Minimum unthreaded length: 0.0 in
Minimum case length: 1.5 in
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector
standard cable
05 CSA, ATEX, IECEx  Approvals
