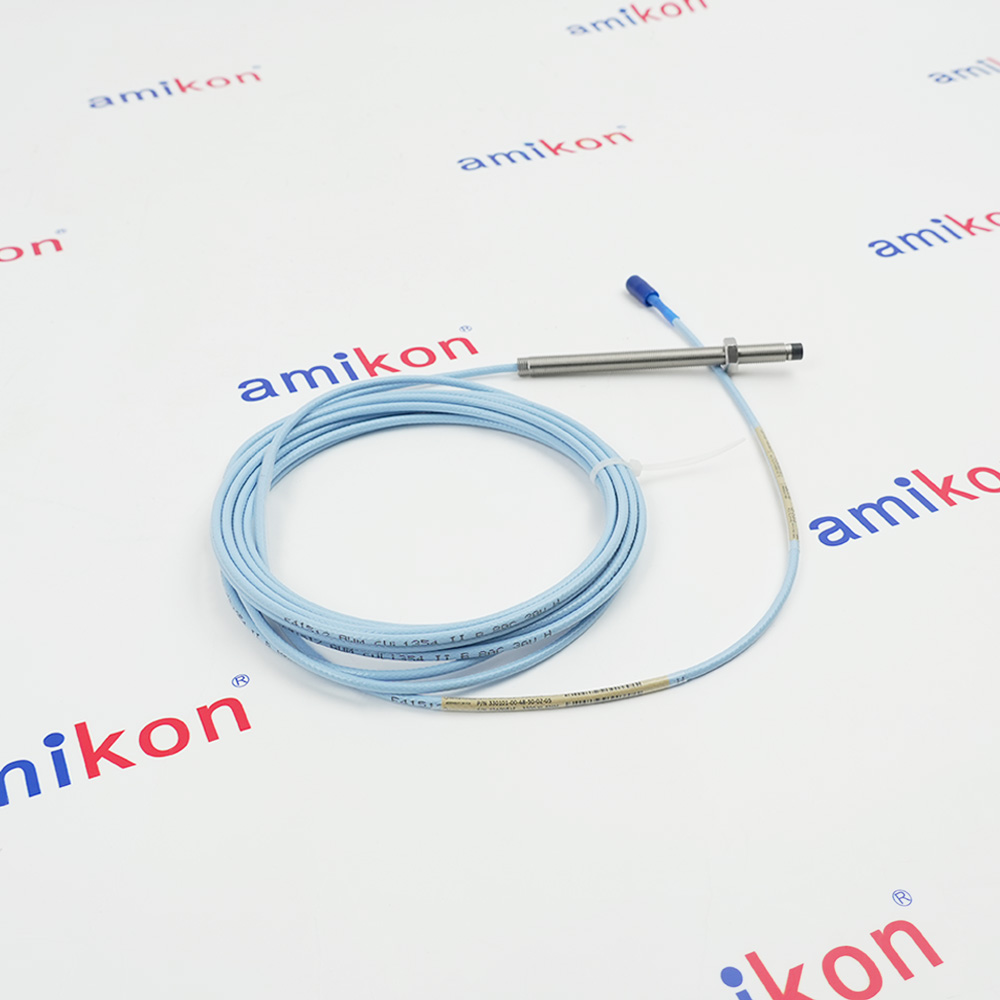

3300 XL 8 mm Probe
3300 XL 8 mm Probe, M10 x 1 thread,without armor
10 1.0 meter (3.3 feet)
02 Miniature coaxial ClickLocconnector, standard cable
05 CSA, ATEX, IECEx Approvals
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm
3300 XL 8 mm Probe
3300 XL 8 mm Probe, M10 x 1 thread,without armor
10 1.0 meter (3.3 feet)
02 Miniature ClickLoc coaxialconnector
05 CSA, ATEX, IECEx Approvals
Order in increments of 10 mm
Metric thread configurations:
Maximum case length: 250 mm
Minimum case length: 20 mm
Example: 0 6 = 60 mm
330101-00-10-05-02-05
3300 XL 8 mm Probe,
3/8-24 UNFthread
without armor
05 0.5 meter (1.6 feet)
05 CSA, ATEX, IECEx Approvals
02 Miniature coaxial ClickLocconnector, standard cable
Order in increments of 0.1 in.
Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
Vibration Transmitter
Measurement Range: +/- 50 mils (1.27 mm)
Frequency Range: DC to 10 kHz
Output Signal: 4-20 mA
Power Supply: 24 VDC nominal, 18-32 VDC
Temperature Range: -40°C to +85°C
3300 XL 8 mm Probe
3300 NSv Probe, M10X1 thread, witharmor
Order in increments of 10 mm.
Metric thread configurations:
Maximum length: 250 mm
Minimum length: 20 mm
Example: 06 = 60 mm
Example: 0 4 = 0.4 in.
10 1.0 meter (39 in)
02 Miniature coaxial ClickLoc connector,standard cable
CN Multiple Approvals
3300 XL 8 mm Probe

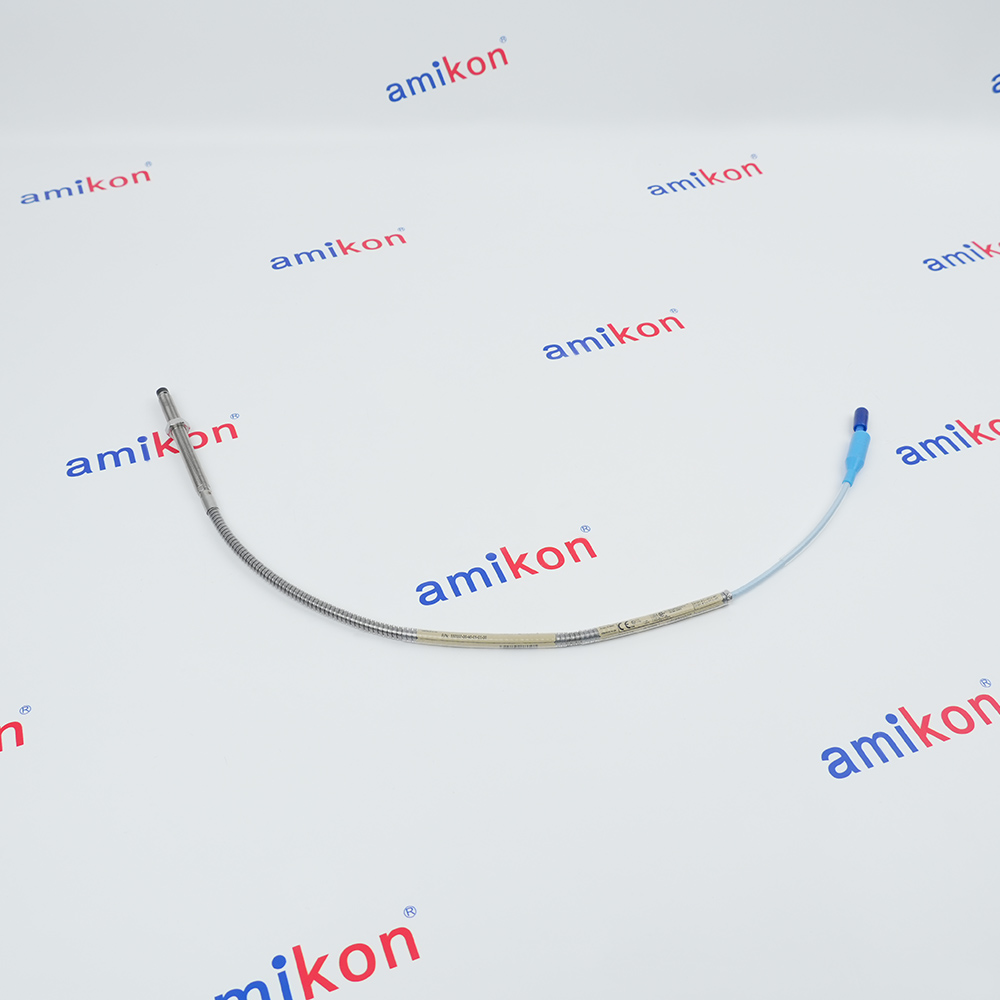

3300 XL 8 mm Probe, 3/8-24 UNFthread, with armor
Order in increments of 0.1 in.Length configurations:
Maximum unthreaded length: 8.8 in.
Minimum unthreaded length: 0.0 in.
Example: 0 4 = 0.4 in.
10 1.0 meter (3.3 feet)
11 Miniature coaxial ClickLocconnector with connectorprotector, FluidLoc cable
00 Not required
DC Power Supplies
Universal AC Power
High Voltage DC Power Supply
Low Voltage DC Power Supply
Inputvoltage 20 to 30 Vdc
Highvoltage DC 2.5 A (maximum)
Operatingtemperature-30 °C to +65 °C-22 °F to +150 °F
Storagetemperature-40 °C to +85 °C-40 °F to +185 °F
Humidity 95%, non-condensing
System Rack
01 19-inch Rack (14 module slots)
02 Rack Mount Option, Full-Size Rack
(mounts to19-inch EIA Rack)
01 CSA/NRTL/C (Class 1, Division 2)
00 None
01 CE
The 3500/05 mini-rack is not available
in theBulkhead Mount option.
Temperature Monitor
Accepts from 1 to 16 signals
Input impedance: Greater than 1 MΩ
Power consumption: 3 watts
Front panel LEDs: OK, TX/RX, Bypass
Type E, J, K, T thermocouples
100 Ω 3-wire and 4-wire platinum RTD
4-Channel Relay Module
PowerConsumption 5.8 Watts typical
EnvironmentalSealing Epoxy-sealed
Arc Suppressor 250 Vrms, installed asstandard
Contact Life 100,000 cycles @ 5 A, 24 Vdcor 240 Vac
OperatingTemperature-30°C to +65°C(-22°F to +150°F)
StorageTemperature-40°C to +85°C(-40°F to +185°F)
Humidity 95%, non-condensing
Minimum switchedcurrent 100 mA @ 12 Vdc
System Display
Local or Remote Visual Indication
of 3500 Machinery Protection System
(4) Display Mounting Types
Up to (2) Displays per 3500 Rack
Input Signal: -10 Vdc to +10 Vdc
Power Consumption: 10.5 watts
Product Type: System Display Interface I/O Module
Ethernet: 100Base-FX Fiber-Optic
Operating Temperature -30°C to +65°C (-22°F to+150°F)
Rack Interface Module
PowerConsumption 4.75 watts, typical
Standard RS232 serial communications
Data Rate 38.4 k baud.
RS232 30 metres (100 feet) maximum
RS422 1200 metres
Communications Hayes AT-compatible
Baud Rate 14.4 k baud maximum
OperatingTemperature -30°C to +65°C
Proximitor Monitor
Signal Accepts from
1 to 4 proximitytransducer signals
Powerconsumption 7.7 Watts, typical
Standard I/O10 kΩ
Gap filter -3 dB at 0.09 Hz
Smax 0.125 to 15.8 times runningspeed
Direct filterUser-programmable
Single-pole4 Hz to 4000 Hz or1 Hz to 600 Hz
VGA Display Monitor
Powerconsumption 4.6 watts max.
High-speednetworkMonitor status, data andvalues
RS232 port(I/0) Touch controller data
OK LED Indicates proper operation ofthe module
TX/RX LEDIndicates
communicationsbetween other systemmodules
VGA port(I/O)Analog red, green,
blue andsync signals to the display
Front Port 24 Vdc Power out,
VGA signalout, Touch commands in.
Proximitor Monitoris
Signal Accepts from
1 to 4 proximitytransducer signals
Powerconsumption 7.7 Watts, typical
Standard I/O10 kΩ
Impedance 550 Ω
TransducerPowerSupply-24 Vdc
Gap filter -3 dB at 0.09 Hz
Direct filter -3 dB at 1.2 Hz
Vibration Transmitter
7 0 7.0 metres (23.0 feet)
0 2 Bulkhead screws
0 1 CSA Division 2
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
Vibration Transmitter
7 0 7.0 metres (23.0 feet)
0 1 35 mm DIN rail clips
0 1 CSA Division 2
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical
Vibration Transmitter
5 0 5.0 metres (16.4 feet)
0 2 Bulkhead screws
0 1 CSA Division 2
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
Vibration Transmitter
5 0 5.0 metres (16.4 feet)
0 2 Bulkhead screws
0 0 Not required
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
Vibration Transmitter
5 0 5.0 metres (16.4 feet)
0 1 35 mm DIN rail clips
0 5 CSA Division 2, ATEX Zone 0,
ATEXZone 2 and includes ABS maritimeapprova
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
Vibration Transmitter
5 0 5.0 metres (16.4 feet)
0 1 35 mm DIN rail clips
0 1 CSA Division 2
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
Vibration Transmitter
0 1 35 mm DIN rail clips
CN CSA Division 2, ATEX Zone 0,
ATEXZone 2 and includes ABS maritimeapproval
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
Vibration Transmitter
0 4 0-4 mils pp (0-100 μm pp)
5 0 5.0 metres (16.4 feet)
0 1 35 mm DIN rail clips
0 5 CSA Division 2, ATEX Zone 0,
ATEXZone 2 and includes
ABS maritimeapproval
Power : Requires +12 to +35 Vdc
input at the transmitter terminal.
Maximum Loop Resistance :
1,000 Ω including cable at 35 Vdc.
Current Limiting : 23 mA typical.
Velomitor CT
Sensitivity 3.94 mV/mm/s (100 mV/in/s)±5%.
TemperatureSensitivity-8% to +5%
AmplitudeLinearity±2% to 63.5 mm/s pk
MountedResonantFrequency9 kHz, minimum
DynamicOutputImpedance<400 Ω typical
BroadbandNoise Floor 0.229 mm/s (0.009 in/s) pk.
OperatingTemperature-40 °C to +85 °C
StorageTemperature-40 °C to +100 °C
Shock Limit 5000 g pk, maximum.
HumidityLimit100% condensing
3300 XL 8 mm Probe
3300 XL 8 mm Probe
M10 x 1 thread
with armor
10 1.0 meter (3.3 feet)
01Miniature coaxial ClickLocconnector with connectorprotector,
standard cable
00 Not required
Order in increments of 10 mm
Length configurations:
Maximum unthreaded length: 230 mm
Minimum unthreaded length: 0 mm
Example: 0 6 = 60 mm
