Yokogawa

Power supply module

Power supply module(24 VDC input)
Standard type with no explosionprotection
Standard type with explosionprotection
Basic type
With ISA Standard G3 option

Terminal board Module

Voltage: 380–690V AC (±10%), 3-phase
Frequency: 50/60 Hz.
Nominal: 930V DC
Control Circuit Voltage: 24V DC (±15%)
Analog inputs :0–10V, 4–20mA
Temperature: -10°C to +50°C (derate 2% per °C above 40°C)
Humidity: <95% non-condensing

Terminal board Module

Voltage: 380–690V AC (±10%), 3-phase
Frequency: 50/60 Hz.
Nominal: 930V DC
Control Circuit Voltage: 24V DC (±15%)
Analog inputs :0–10V, 4–20mA
Temperature: -10°C to +50°C (derate 2% per °C above 40°C)
Humidity: <95% non-condensing

Pressure clamp terminal block

With dual-redundant
pressure clamp terminal block for digital input
Rated Voltage:24–60 V DC
Current Rating:≤4 A
Contact Resistance:≤10 mΩ
Isolation Voltage:500 V AC
Operating Temperature:-40°C to +85°C

Pressure clamp terminal block

With dual-redundant
pressure clamp terminal block for digital input
Rated Voltage:24–60 V DC
Current Rating:≤4 A
Contact Resistance:≤10 mΩ
Isolation Voltage:500 V AC
Operating Temperature:-40°C to +85°C

Pressure clamp terminal block

With dual-redundant
pressure clamp terminal block for digital input
Rated Voltage:24–60 V DC
Current Rating:≤4 A
Contact Resistance:≤10 mΩ
Isolation Voltage:500 V AC
Operating Temperature:-40°C to +85°C

Pressure clamp terminal block

With dual-redundant
pressure clamp terminal block for analog
Rated Voltage: 30 V AC
Current Rating:≤4 A
Contact Resistance:≤10 mΩ
Isolation Voltage:300 V AC
Terminal Material :Tin-plated copper alloy
Operating Temperature:-40°C to +85°C

Pressure clamp terminal block

With dual-redundant
pressure clamp terminal block for analog
Rated Voltage: 30 V AC
Current Rating:≤4 A
Contact Resistance:≤10 mΩ
Isolation Voltage:300 V AC
Terminal Material :Tin-plated copper alloy
Operating Temperature:-40°C to +85°C

Pressure clamp terminal block

With dual-redundant
pressure clamp terminal block
Rated Voltage:300 V AC/DC
Current Rating:10–20 A
Contact Resistance:≤5 mΩ
Isolation Voltage:500 V AC
Contact Material:Tin-plated copper alloy
Operating Temperature:-40°C to +85°C

Pressure clamp terminal block

With dual-redundant
pressure clamp terminal block for digital input
Rated Voltage:300 V AC/DC
Current Rating:10–20 A
Contact Resistance:≤5 mΩ
Isolation Voltage:500 V AC
Contact Material:Tin-plated copper alloy.
Operating Temperature:-40°C to +85°C

Pressure clamp terminal block

With dual-redundant
pressure clamp terminal block for digital input
Rated Voltage:300 V AC/DC
Current Rating:10–20 A
Contact Resistance:≤5 mΩ
Isolation Voltage:500 V AC
Contact Material:Tin-plated copper alloy
Operating Temperature:-40°C to +85°C

V-NET Coupler Module

Input Voltage: 24 V DC
Power Consumption: Estimated 10–15 W
Operating Temperature: -10°C to +55°C (14°F to 131°F)
Humidity: 5–95% RH (non-condensing)

Vnet/IP COMMUNICATION MODULE

Power Supply:24 V DC
Power Consumption:≤5 W
Operating Temp.:-20°C to +70°C
Humidity:10–90% RH (non-condensing)

POWER SUPPLY MODULE

PW44150
POWER SUPPLY MODULE
FOR V NET POWER
1.4AMP
100-120VAC
50/60HZ

Coupler Module

Impedance: 100 Ω ±15%
Power Supply Input: 24V DC (±10%)
Power Consumption: ≤5W
Operating Temperature: -40°C to +70°C (-40°F to +158°F)
Humidity: 5–95% non-condensing

POWER SUPPLY MODULE

PW44150
POWER SUPPLY MODULE
FOR V NET POWER
1.4AMP
100-120VAC
50/60HZ

Power Supply Module

Input Voltage:100–120 V AC
Input Frequency: 50/60 Hz
Maximum Power Consumption: 200 VA
Output Voltage: Typically 24 V DC
Operating Temperature: -10°C to +55°C (14°F to 131°F)
Storage Temperature: -25°C to +70°C (-13°F to 158°F).
Humidity: 5–95% RH (non-condensing)

COUPLER MODULE

Ethernet Ports: 2 ports
Data Transfer Rate: Up to 100 Mbps
Power Supply Voltage: 24 V DC (±10%)
Power Consumption: 8–12 W
Operating Temperature: -10°C to +55°C (14°F to 131°F)
Storage Temperature: -25°C to +70°C (-13°F to 158°F)
Humidity: 5–95% RH (non-condensing)

Vnet/IP COMMUNICATION MODULE

Power Supply:24 V DC
Power Consumption:≤5 W
Operating Temp.:-20°C to +70°C
Humidity:10–90% RH (non-condensing)

TERMINAL BLOCK

PRESSURE CLAMP TERMINAL BLOCK
STARDOM
BASIC TYPE
FOR CONNECTION USE WITH ANALOG
12 CHANNEL MODULE

TERMINAL BLOCK

PRESSURE CLAMP TERMINAL BLOCK
STARDOM
BASIC TYPE
FOR CONNECTION USE WITH ANALOG
12 CHANNEL MODULE

19 INCH RACK

Max number of mountable I/O modules:8
Number of mountable Power suply modules:2
S Standard type
0 19-inch rack-mounted
BASE MODULE
STYLE S1
STANDARD TYPE
19 INCH RACK
DIN MOUNT
(92F306027)

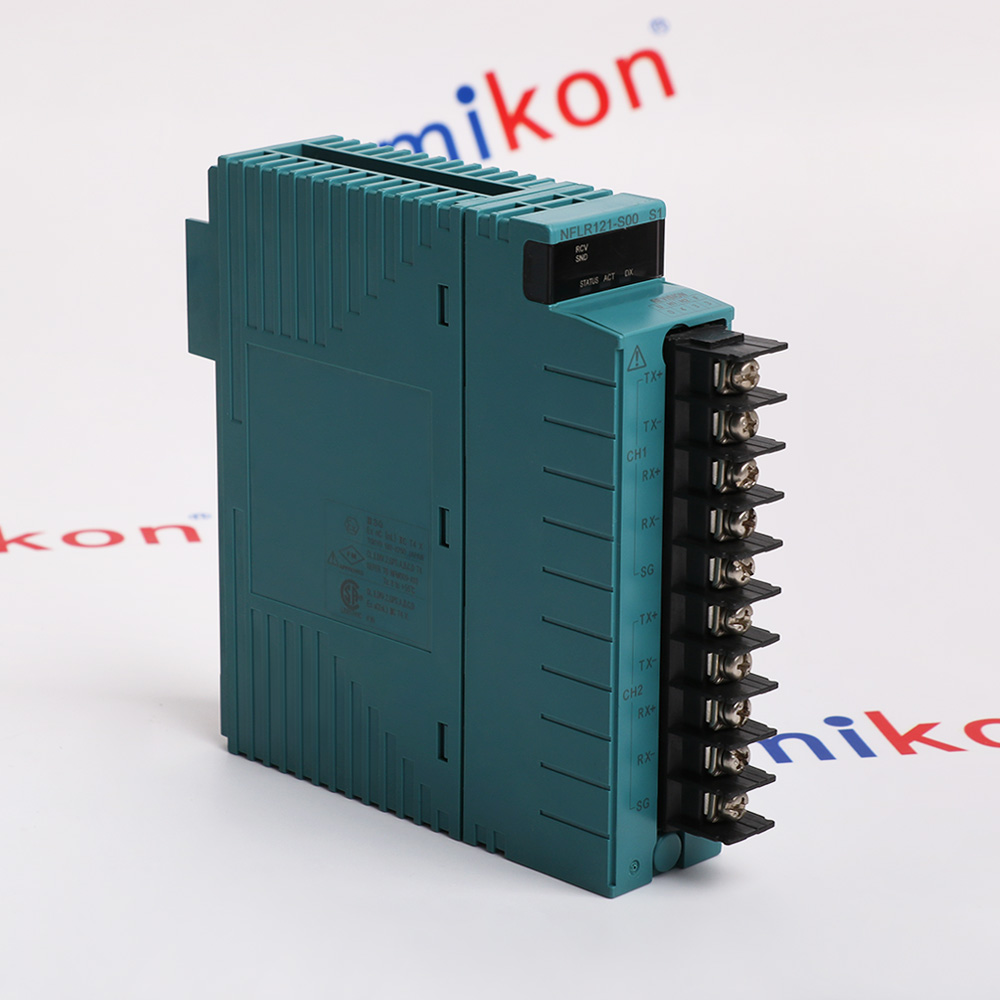

Serial Communication Module

Interface:RS-422/RS-485 (2 ports)
How connected:Multipoint
How communicates Half-duplex/Full-duplex
How synchronizes Start-stop synchronization
Transmission code ASCII/binary
Character length:7/8 bits
Stop bit :1/2 bits
Parity check None/even/odd
Transmission distance Maximum:1200 m
Current consumption:500 mA

RTD Input Module

Number of input channels:12, isolated
Allowable input voltage:±5 V
Between input and system: 1500 V AC for 1minute
Power ON :2 MΩ or more
Power OFF: 2 MΩ or more
Allowable total resistance of signalsource plus wiring:40 Ω or less
Effect of allowable signal source resistance (1000 Ω): ±20 μV
Measurement current:1 mA
Temperature drift:Max. ±30 ppm/°C
Maximum current consumption:450 mA (5 V DC)

RTD Input Module

Allowable input voltage ±5 V.
Withstanding voltage :1500 V AC for 1minute
Power ON 2 MΩ or more
Power OFF 2 MΩ or more
Accuracy ±0.03% of full scale (for 0 to 400 Ω)
Allowable total resistance of signalsource plus wiring:40 Ω or less
(wiring resistance per wire)
Temperature drift:Max. ±30 ppm/°C.
Maximum current consumption:450 mA (5 V DC)
