Centum CS-Centum VP

Power Supply Module

Input Voltage: 100-120V or 200-240V
Output Voltage: 24V
Output Current :5A
Power Output: Up to 120W
Operating Temperature: -10°C to +55°C
Storage Temperature: -20°C to +70°C

Yokogawa Power Module

Central Processor

Current Voltage Input Module

Transceiver Control Module

CPU Module

Operation 0° to 55°C
Transportation/storage  40° to 85°C (*1)
Dust 0.3 mg/m3 or less
Resistance to corrosive gases
ANSI/ISA S71.04 Class G2 (Standard)
(ANSI/ISA S71.04 Class G3, option)
Resistance to vibration

RS-422/485 Communication Module

Digital Input Module

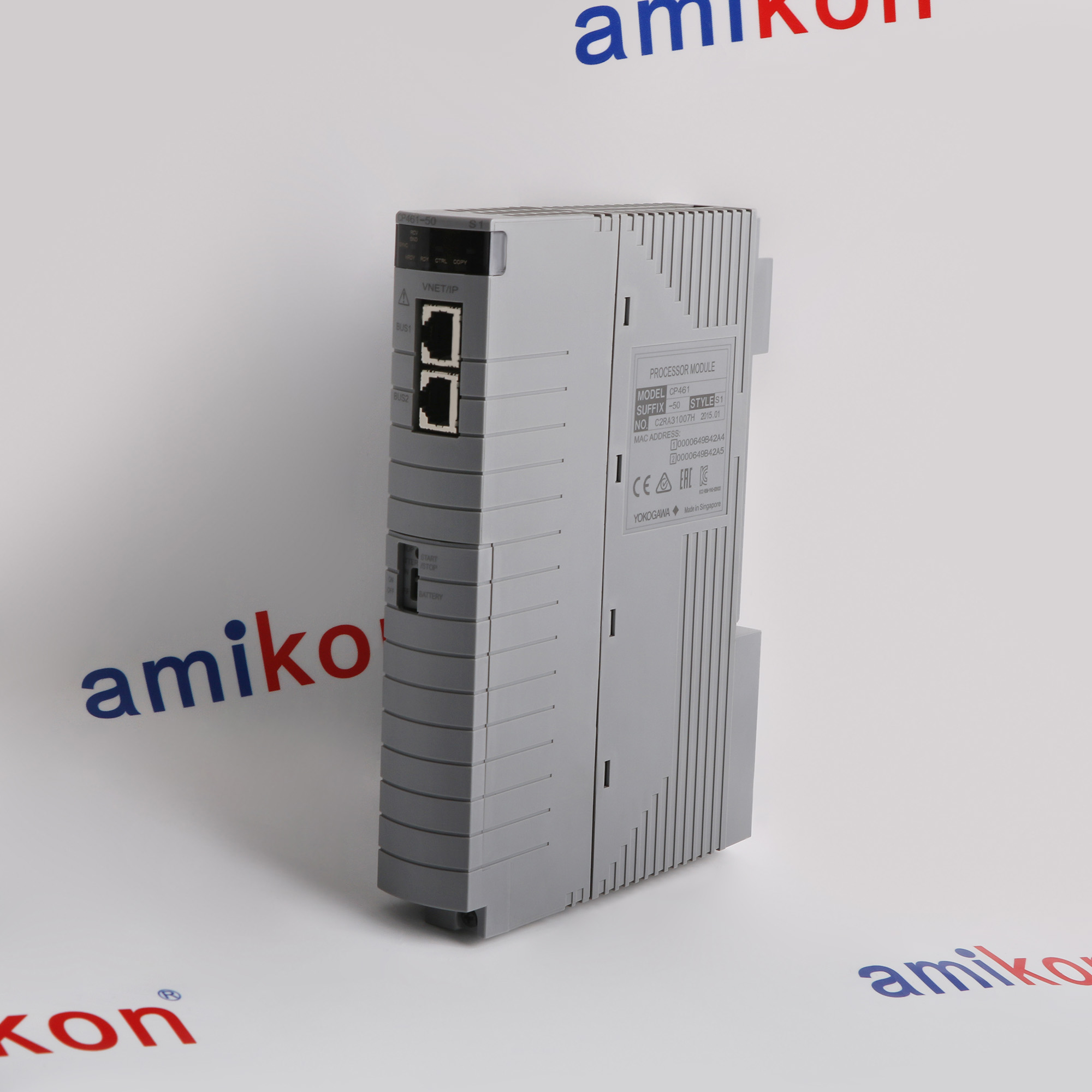

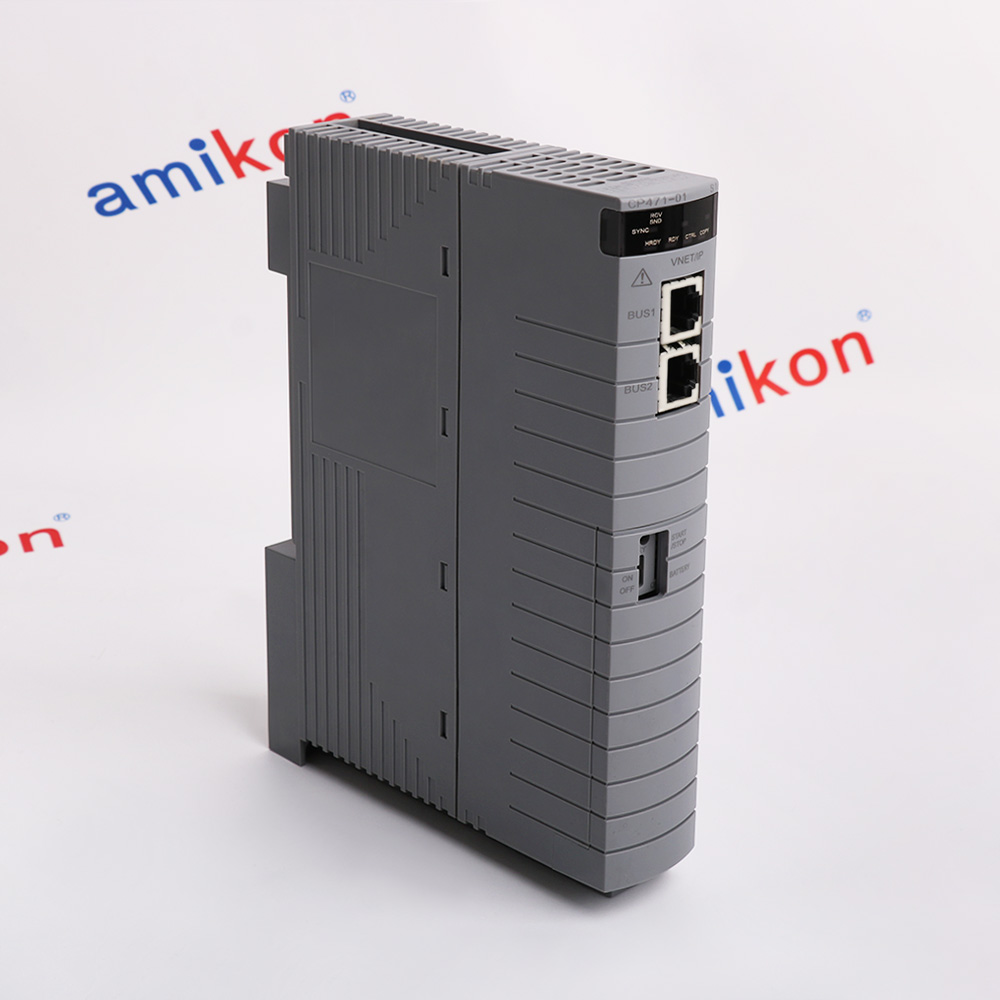

Processor Module

Processor Module

PROCESSOR MODULE
FOR AFV30S AFV30D AFV40S AFV40D
STANDARD TYPE
NO EXPLOSION PROTECTION
19 INCH RACK MOUNTABLE
REPLACES CP461-10 PROC MOD

16 Point Analog Input Module - HART

Bus Interface Module

Voltage Input Multiplexer Module

I/O Module

Opto Isolation Module

Isolator Module

10 Mbps Real-Time Control Bus

TMB Module

Bus Interface Module

Star type connection
Maximum two
5 km to 50 km
0.5 A

Bus Interface Module

Bus Coupler Module

Function: ESB bus master interface function
Number of connectable units: 9 units maximum
Transmission speed: 128 Mbps
Transmission distance: 10 m maximum
Current consumption: 0.5 A

Digital Output Module

Digital Output Module

8-channel, module isolation
24 V DC
1 V maximum
24 V DC, 3.4 A minimum
24 V DC + 20 % / -10 %
1.6 mA
0.2 A/output line (3.2 A in total output line) (*3) (*5)
120 to 685 Ω (*6
2 kV AC between output signal lines and system for 1 minute, 16-point input linescollectively connected (negative lines)

Digital Output Module

Digital Input Module

Number of inputs 16-channel, module isolation
Input current 6 mA ± 20 %
Contact rating 24 V DC +20 % / -10 %
External power supply 24 V DC +20 % / -10 %
Input response time 40 ms maximum
Withstand voltage (*1) (*2) 2 kV AC
between input signal and system for 1 minute
16-input line collectivelyconnected
