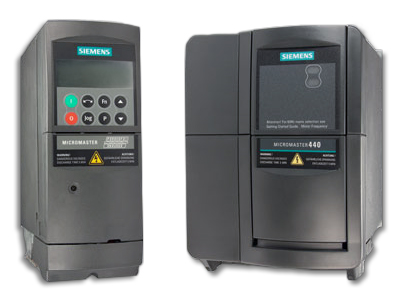

AC DRIVE
MICROMASTER 440
without filter 380-480 V
3 AC +10/-10% 47-63 Hz
constant torque 22 kW
overload 150% 60 s, 200%
3 s square-law torque 30 kW
520x 275x 245 (HxWxD)
degree of protection IP20
ambient temperature -10+50 °C
without AOP/BOP
Inverter Power Drive Module
Micromaster 440
18.5/22/37KW
Voltage: 3 AC 380–480 V ±10% (50/60 Hz)
Frequency Range: 0–650 Hz
Switching Frequency: 4 kHz
Ambient Temperature: -10°C to +50°C
Humidity: Up to 95% (non-condensing)
MICROMASTER 440 WITHOUT FILTER
MICROMASTER 440
without filter 380-480 V
3 AC +10/-10% 47-63 Hz
constant torque 15 kW
overload 150% 60 s,
200% 3 s square-law torque 18.5 kW
520x 275x 245 (HxWxD)
degree of protection IP20 ambient
temperature -10+50 °C
without AOP/BOP
MICROMASTER 440 WITHOUT FILTER
MICROMASTER 440
without filter 380-480 V
3 AC +10/-10% 47-63 Hz
constant torque 5.5 kW
overload 150% 60 s,
200% 3 s square-law torque 7.5 kW
245x 185x 195 (HxWxD)
degree of protection IP20
ambient temperature -10+50 °C
without AOP/BOP
Profibus Module
MICROMASTER 4
PROFIBUS module
For mechanical reasons,
for MM4 FX/GX the plug
6GK1500-0EA02 must be used
