ABB Bailey

SOE clock module

Input Voltage:24 V DC
Power Consumption:≤ 8 W
Time Sync Input:IRIG-B (modulated/dc level)
Signal Voltage:TTL/RS-422 compatible (0–5 V DC)
Accuracy:±1 ms
Time Resolution:1 ms
Isolation:1500 V AC

SOE Master Module

SPSEM11
SOE Master Module
Sequence of Events Recording
Accurate to millisecond level
Typically supports Ethernet, MODBUS, or other industrial protocols
Operating temperature range: -20°C to +60°C

Power Entry Panel Dual Chassis

PHARPSPEP21013
Power Entry Panel
Dual Chassis Design
Typically supports AC or DC input, depending on the application
Appropriate current based on load requirements

Termination Cable

Model: NKHS03-15
Type: Termination Cable
Cable Length: 15 meters
Interface Type: Compatible with ABB system modules

Analog Input Terminal Board

Model: NTRO12-A
Type: Analog Input Terminal Unit
Signal Type: High-Level Analog Signals
Number of Channels: 12
Product Type: Module_Termination_Unit

Analog Input Terminal Board

Model: NTAI05-A
Type: C
Number of Channels: 16 Channels
Signal Type: High-Level Analog Signals
Product Type: Module Termination Unit

Fiber Optic Remote I/O Termination Unit

Isolation Voltage:1.5 kV AC
Power Supply:24 V DC (±15%), 5 W typical
Redundancy:Dual fiber ports
Fiber Interface:2x ST/PC connectors
Data Rate:10 Mbps
Max. Distance:2 km

Turbine Auto Sync Module

Input Voltages:100–120V AC
Voltage Diff: ±0.5%
Slip Freq: ±0.05 Hz
Operating Voltage:24/48/125V DC
Response Time:<20 ms

Turbine Protection Module

Operating Voltage:24/48/125V DC (±20%)
Response Time:<20 ms
Speed Range:0–9999 RPM
Redundancy:2-out-of-3 (2oo3) voting logic
Overspeed Thresholds:2x Adjustable
Input Signals:3x Magnetic Pickups (MPU) / Proximity Sensors
Trip Outputs:3x Relay Contacts (NO/NC, 5A @ 250V AC)

Analog Control Station

Operating Voltage:24V DC (±10%), 3W typical
Accuracy:±0.5% of full scale
Resolution:0.1% (for bargraph display)
Update Rate:100 ms
Isolation: 1.5 kV AC
MODE Switch: Toggle MAN/AUTO/CAS

Analog Output Slave Module

BRC400 Bridge Controller

AIN-120 Analog Input Block

AOT 150 Analog Output Module

S+ Control Processor

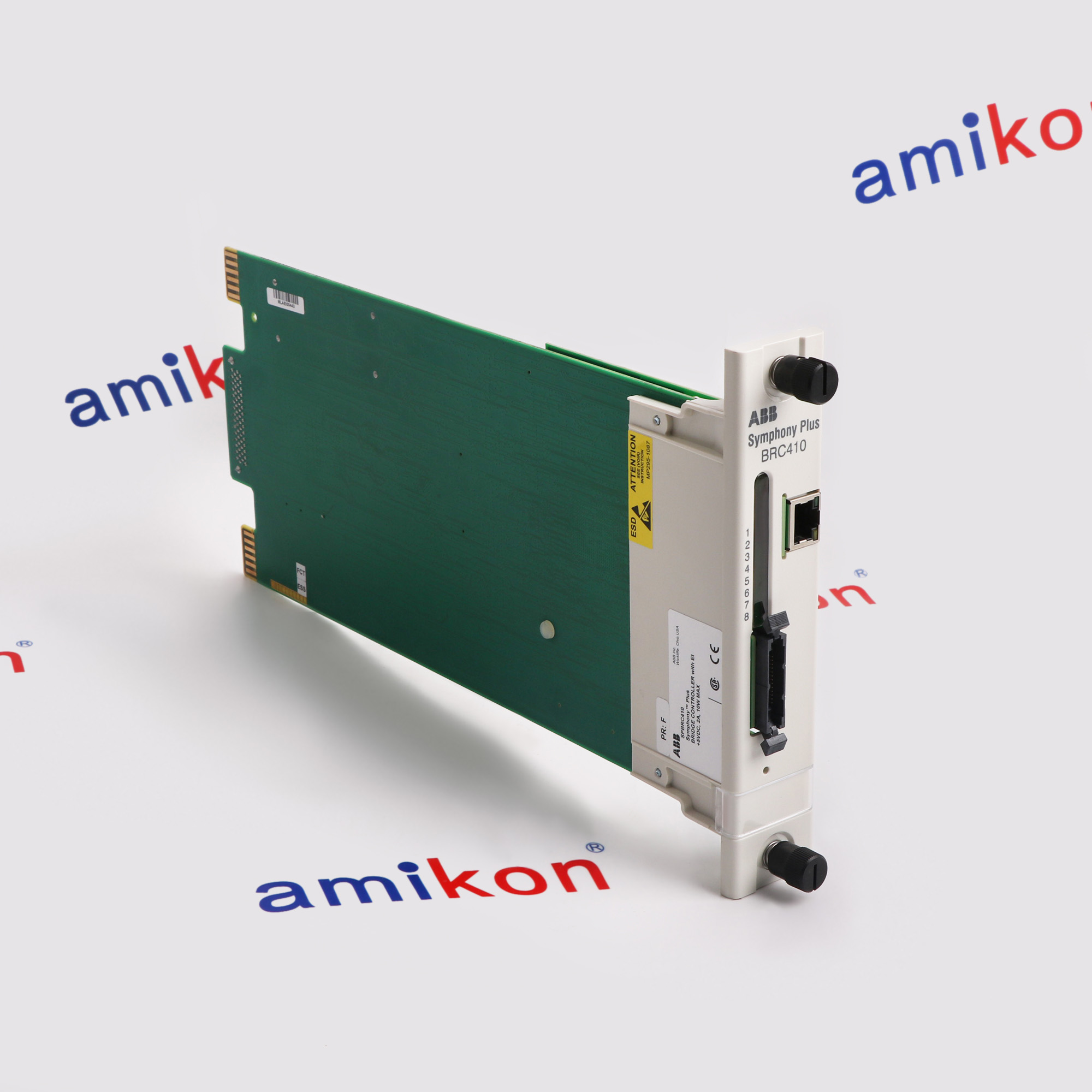

SPBRC410
Controller with Modbus TCP Interface
BRIDGE CONTROLLER
HARMONY RACK / SYMPHONY PLUS
W/ MODBUS TCP INTERFACE
INFI90 / BRC410 / SPBRC41000000

Digital Output Module

Analog Input Base - Harmony Block I/O

Digital I/O Module - Harmony Block I/O

DIO-400 Digital I/O Module -
Harmony Block I/O
(PHBDIO40010000)
Sixteen (16) isolated Digital Inputs;
24 VDC, 48 VDC, 125 VDC, 120 VAC,
and 240 VAC and eight (8)
Isolated Digital Outputs;
24 VDC at250mA and 48 VDC at 125 mA.

1948024G1
CPU MODULE

1948021A1
DISCONTINUED BY MANUFACTURER
ASEA BROWN BOVERI
1948021-A1
SERIAL I/O INTERFACE MODULE

1948022A1
LOCAL CPU MEMORY MODULE
