Vibro-Meter

Galvanic separation unit

Input voltage range : 18 to 30 VDC
No load on sensor side : ≤80 mA
20 mA load on sensor side : ≤120 mA
Output voltage dynamic range: 2 to 20 VDC
Output impedance : 20 Ω, protected against short-circuits
Power supply voltage rejection ratio
10 Hz to 400 Hz : ≥60 dB
 400 Hz to 100 kHz : ≥30 dB
Output signal offset drift with temperature: ≤2 mV/°C

signal conditioner

Input Range: Typically ±10 V peak.
Input Range: Typically -2 V to -18 V DC
Acceleration/Velocity: DC to 10 kHz
Displacement (Eddy Current): 0 to 10 kHz
Dynamic Range: Typically > 80 dB
Voltage: Typically +15V DC

proximity sensor

From the vibro-meter® product line
Conforms to API 670 recommendations
1, 5 and 10 m systems
Temperature-compensated design

Proximity measurement system

From the vibro-meter® product line
Ex certified versions for use in hazardous areas
TQ401 conforms to API 670 recommendations
5 and 10 m systems
Temperature-compensated design
Frequency response:DC to 20 kHz (−3 dB)
Measurement range:2 mm
Temperature range:−40 to +180 °C

Proximity measurementsystem

From the vibro-meter® product line
Ex certified versions for use in hazardous areas
TQ401 conforms to API 670 recommendations
5 and 10 m systems
Temperature-compensated design
Frequency response:DC to 20 kHz (−3 dB)
Measurement range:2 mm
Temperature range:−40 to +180 °C

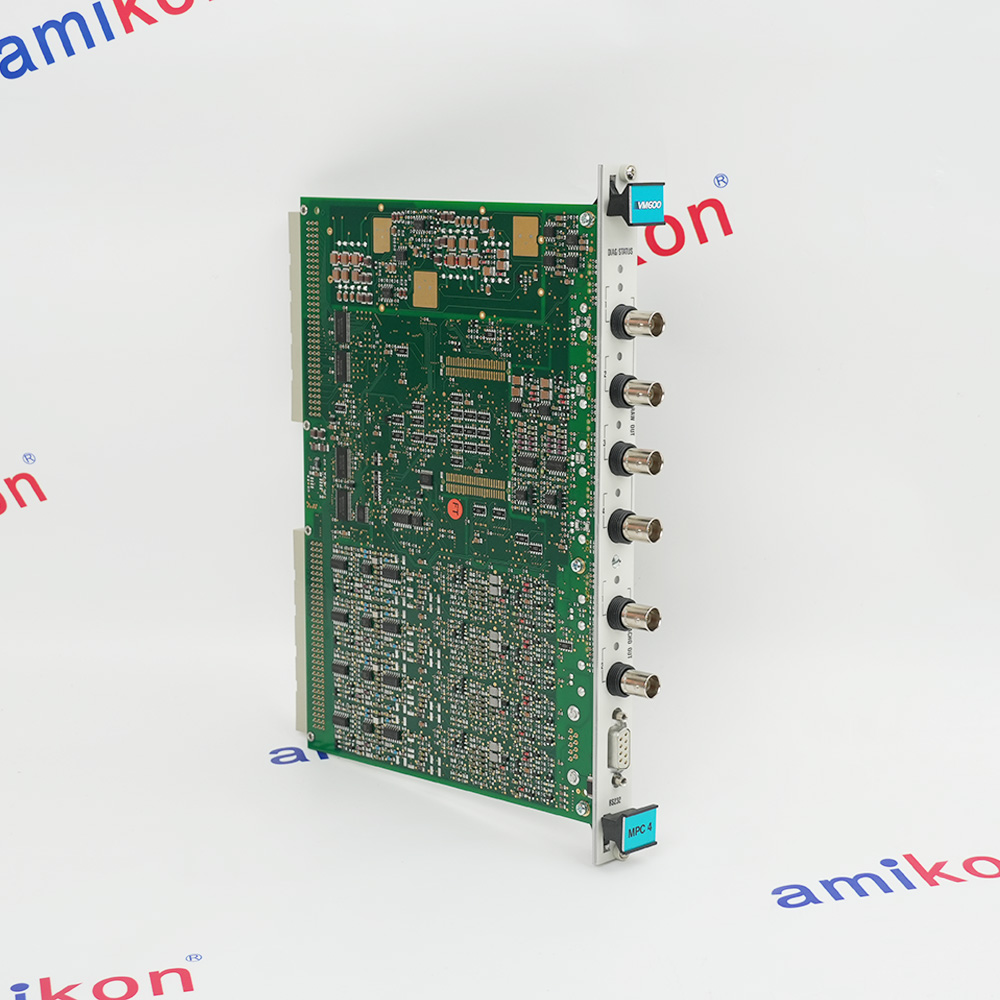

MPC4 machinery protection card

Number of inputs : 4 per MPC4 card
DC range : 0 to +20 V or 0 to −20 V
AC range : ±10 V max.
Common mode voltage range : −50 to +50 VC
MRR : >60 dB at 50 Hz
Crosstalk : −72 dB
Input impedance : 200 kΩ
DC signals : 0 to 25 mA
AC signals : ±8 mA max

Signal conditioner

Voltage at min. GAP:−1.6 V
Voltage at max. GAP:−17.6 V
Dynamic range:16 V
Output impedance:500 Ω
Short-circuit current:45 mA
Voltage:−20 to −32 V*
Current:−13 mA ±1 mA (−25 mA max.)

AMP MODULE

Configurable high-pass and low-pass filters
Frequency range: 0.5 Hz to 20 kHz
Optional integrator to produce a velocity output
Optional 2-wire current or 3-wire voltagetransmission
Certified for use in potentially explosiveatmospheres
A range of installation options are available

AMP MODULE

Configurable high-pass and low-pass filters
Frequency range: 0.5 Hz to 20 kHz
Optional integrator to produce a velocity output
Optional 2-wire current or 3-wire voltagetransmission
Certified for use in potentially explosiveatmospheres
A range of installation options are available

Proximity Sensor

2 or 4 mm measurement range
−40 to 180 °C operating temperature
0.5, 1.0, 1.5, 2.0 or 5.0 m integral coaxial cable
Versions certified for use in potentially explosive atmospheres
Conforms to API 670 5th edition
8 mV/µm or 2.5 µA/µm (2 mm range)
4 mV/µm or 1.25 µA/µm (4 mm range)
−40 to 180 °C, Ø8.2 mm tip, reverse-mount

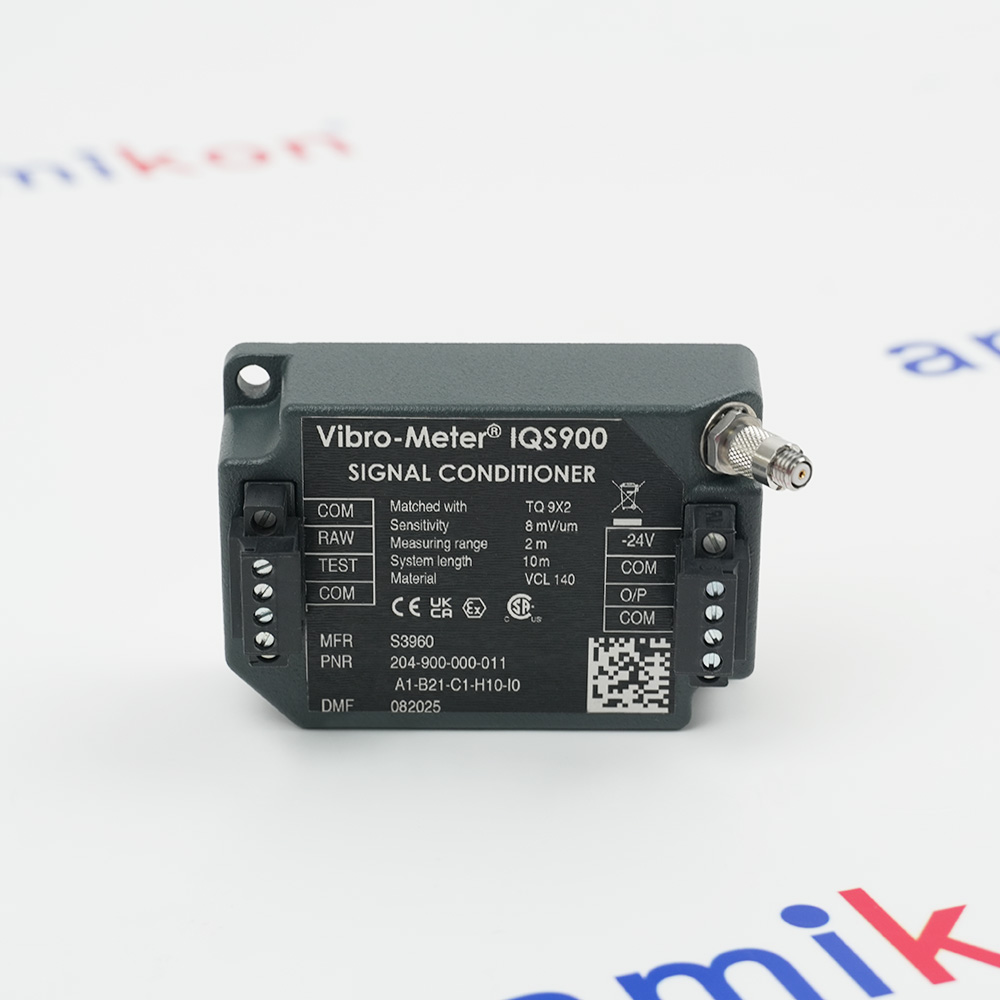

Signal Conditioner

Voltage at min. GAP : −1.6 V
Voltage at max. GAP : −17.6 V
Dynamic range : 16 V
Output impedance : 500 Ω
Short-circuit current : 45 mA
Output capacitance : 1 nF
Output inductance : 100 µH
Operating : −35 to +85°C
Storage : −40 to +85°C

Communication Board

VM600 series
Humidity: 5% to 95% non-condensing
Vibration: 0.15 g²/Hz (5 to 500 Hz)
Shock: 15 g (11 ms half-sine)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

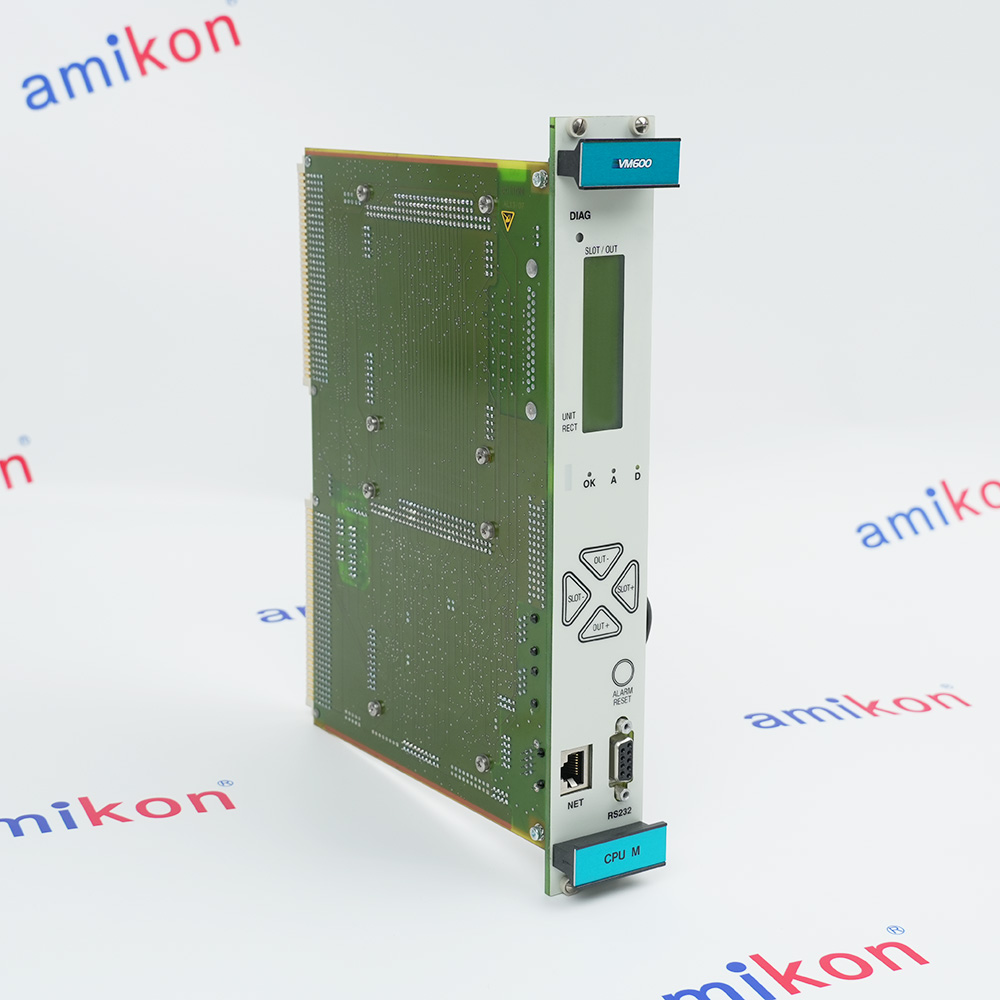

CPUM modular CPU card

VM600 series
Humidity: 5% to 95% non-condensing
Vibration: 0.15 g²/Hz (5 to 500 Hz)
Shock: 15 g (11 ms half-sine)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)

Meggit Electronic Components Transducer

GSI 24
GALVANIC SEPARATION
Measuring Range: 0.1 to 1000 Hz
Sensitivity  1 mV/g to 100 mV/g
Operating Voltage 24V DC
Operating Temperature -40°C to +85°C
Signal Type: 4-20 mA or 0-10V

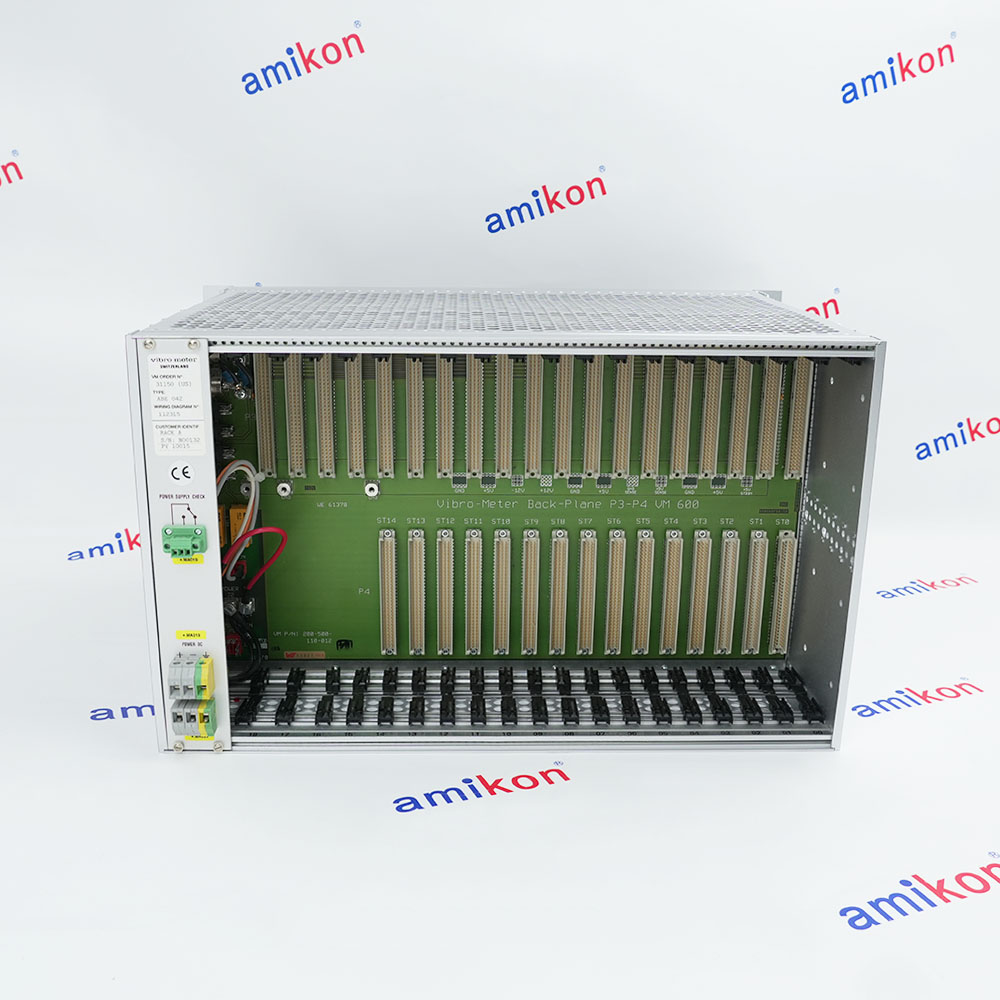

system rack

Operating Temperature Range: -25°C to +65°C
Storage Temperature Range: -40°C to +85°C
Humidity: 0-95%
Input Voltage: 48V DC
Module Capacity: The rack can accommodate up to 15 slot modules
Rack Dimensions: 19 inch rack width, in compliance with industry standards

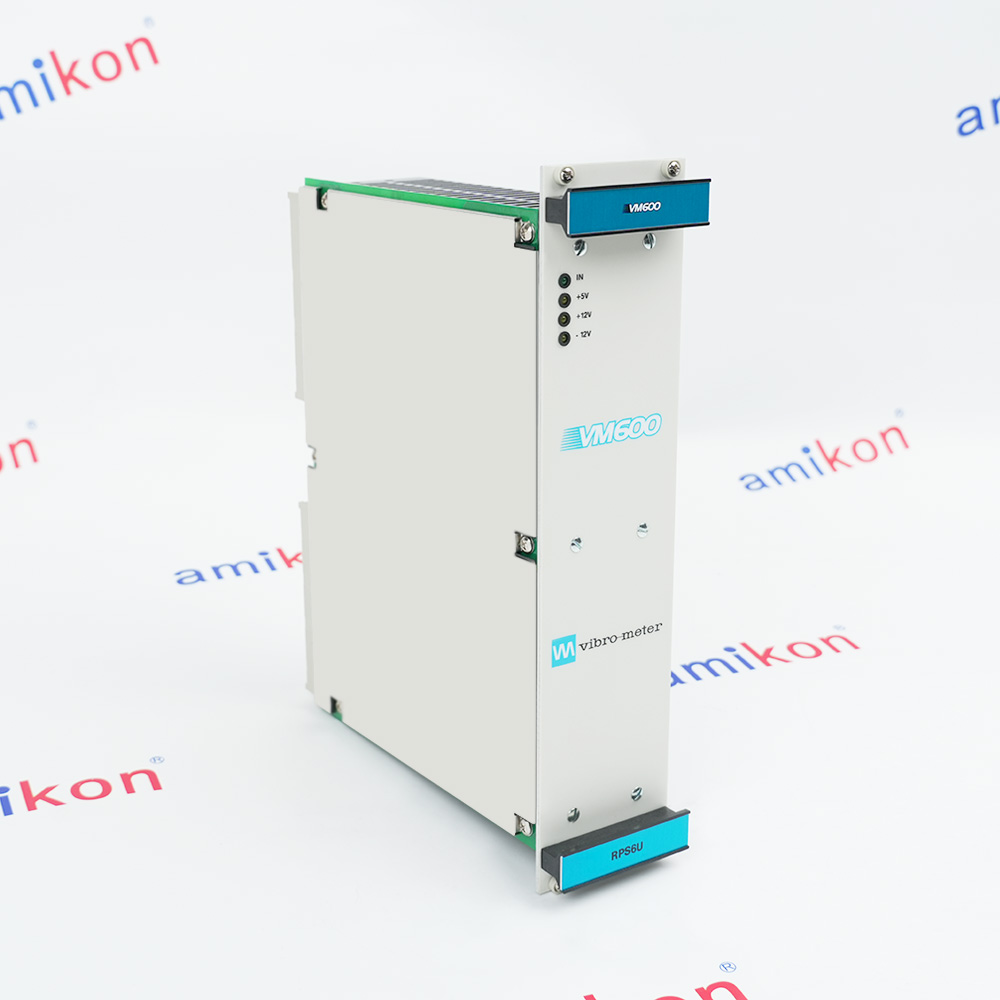

Power Supply Module

From the Vibro-Meter ® product line
Power supply unit for VM600 system rack (6U)
High performance
Wide input voltage range
Over-voltage protection
Continuous short-circuit proof
Minimal derating within the operating temperature range
6U height
Compact design
Fully VME compatible
Conforms to EC standards for EMC

Machine Protection Card

Measurement range: 0.001 gpm to 2.0 gpm
Resolution: 0.0001 gpm
Frequency range: 2 Hz to 10 kHz
Sensor type: piezoelectric sensor
Display mode: Color LCD display screen
Interface: RS232, USB

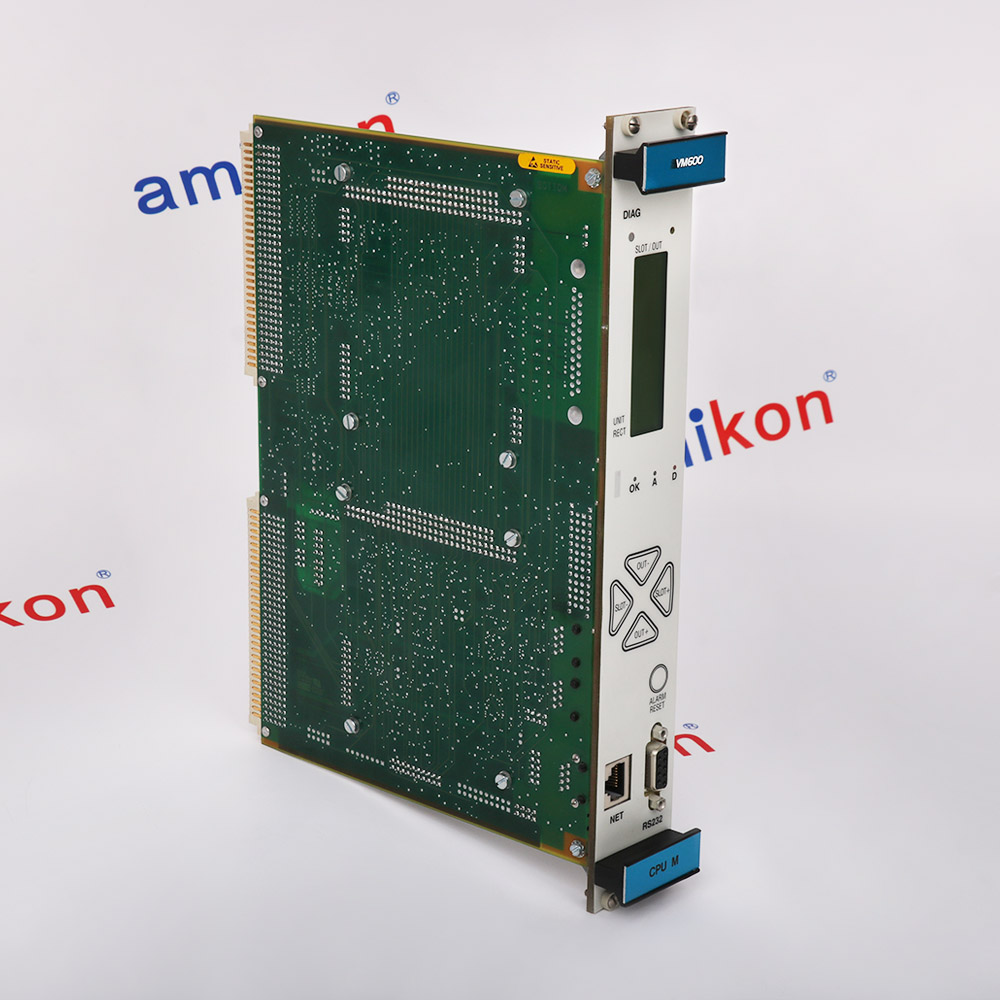

CPU Card

Brand: Meggitt Vibro-Meter
Product Series: VM600
Model: CPU M 200-595-074-122 / 200-595-100-014
Product Type:CPU Control Card
Operating Temperature Range: -20°C 到 +70°C
Operating Humidity: 0-95%

IOCN modular CPU card

VM600 series
Humidity: 5% to 95% non-condensing
Vibration: 0.15 g²/Hz (5 to 500 Hz)
Shock: 15 g (11 ms half-sine)
Operating Temperature Range: -20°C to +60°C (-4°F to +140°F)
Storage Temperature Range: -40°C to +85°C (-40°F to +185°F)
