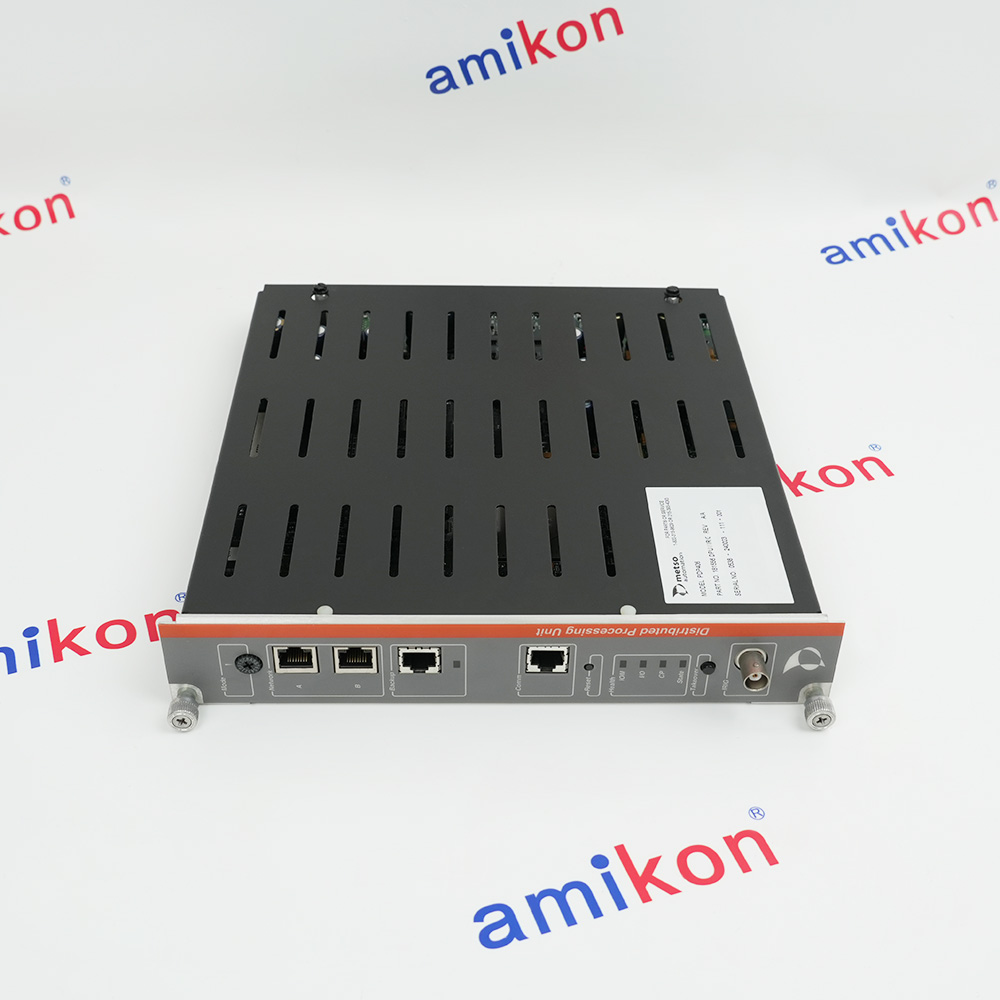

DISTRIBUTED PROCESSING UNIT
PDP406
DISTRIBUTED PROCESSING UNIT
REV A/A
CPU PROCESSOR
Processor Module
Power Supply:24 V DC (±15%)
CPU:32-bit RISC processor
Clock Speed:80–100 MHz
I/O Capacity:Supports up to 64 I/O modules
Optional Protocols:Modbus RTU/TCP, PROFIBUS DP
DPU Distributed Processing Unit
Input Voltage: 20–30 VDC
Power Consumption: 18W
Isolation:1500 VAC
RAM: 1 GB DDR3
Flash Storage: 4 GB eMMC
Ethernet 2x 10/100/1000 Mbps
Isolated Analog Input Module
Input Channels: 8 or 16 channels
Channel-to-channel: 1500 V AC
Field-to-system: 2500 V AC
Current: 4–20 mA, 0–20 mA
Current: 4–20 mA, 0–20 mA
Power Supply: 24 V DC ±10%
Accuracy: ±0.05%
Distributed Processing Unit
Input Voltage:24V DC
Power Consumption:10W
Clock Speed: 1 GHz to 2 GHz
Operating Temperature:-20°C to +60°C
Storage Temperature: -40°C to +85°C
Digital Input Module
Voltage: 24V DC
Current Consumption: 50 mA
Power Requirement: Typically 2-3 W
Operating Temperature:Range: -20°C to +60°C
Storage Temperature: -40°C to +85°C
Operating: 5% to 95% non-condensing
BIU 84 Module
A413143
DISCONTINUED BY MANUFACTURER
PC BOARD
BINARY INPUT MODULE ASSEMBLY
(BIU-84)
