Alfa Laval

Input/Output Interface Module

Analog Inputs:8 channels (4-20mA/0-10V)
Digital Inputs:16 channels (24VDC)
Digital Outputs:8 channels (Relay, 5A @ 230VAC)
Communication:RS-485 Modbus RTU
Isolation Voltage:1500V AC
Operating Temp:-20°C to +60°C
Humidity Range:5-95% non-condensing
Power Consumption:3.5W (24VDC)

Control Panel

Display:5.7" Color TFT LCD (320 × 240 pixels)
Processor:32-bit RISC microcontroller
Power Supply:24V DC
Power Consumption:≤50W
I/O Capabilities:16–24 Digital Inputs

Circuit Board

Digital Channels: Configurable for 24 V DC
Analog Inputs: Supports 4–20 mA or 0–10 V
Input Voltage: 24 V DC (±10%)
Onboard Regulation: 5 V/3.3 V
Operating Temperature: 0°C to +55°C (32°F to 131°F)
Humidity: 5–95% non-condensing.

PCB Board

Digital I/O Channels: 24 V DC
Input Voltage: 24 V DC (±10%)
Analog Inputs: Support 4–20 mA or 0–10 V
Operating Temperature: 0°C to +55°C (32°F to 131°F).
Storage Temperature: -20°C to +70°C (-4°F to 158°F).
Humidity: 5–95% non-condensing.

VCU-160 MODULE

Manufacturer: Alfa Laval
Model Number: 3183052091
Product Name: VCU-160 Module
Application: HVAC systems
Input Voltage: Typically 24V DC or 230V AC
Operating Temperature Range: -20°C to +55°C
Protection Rating: Typically IP20

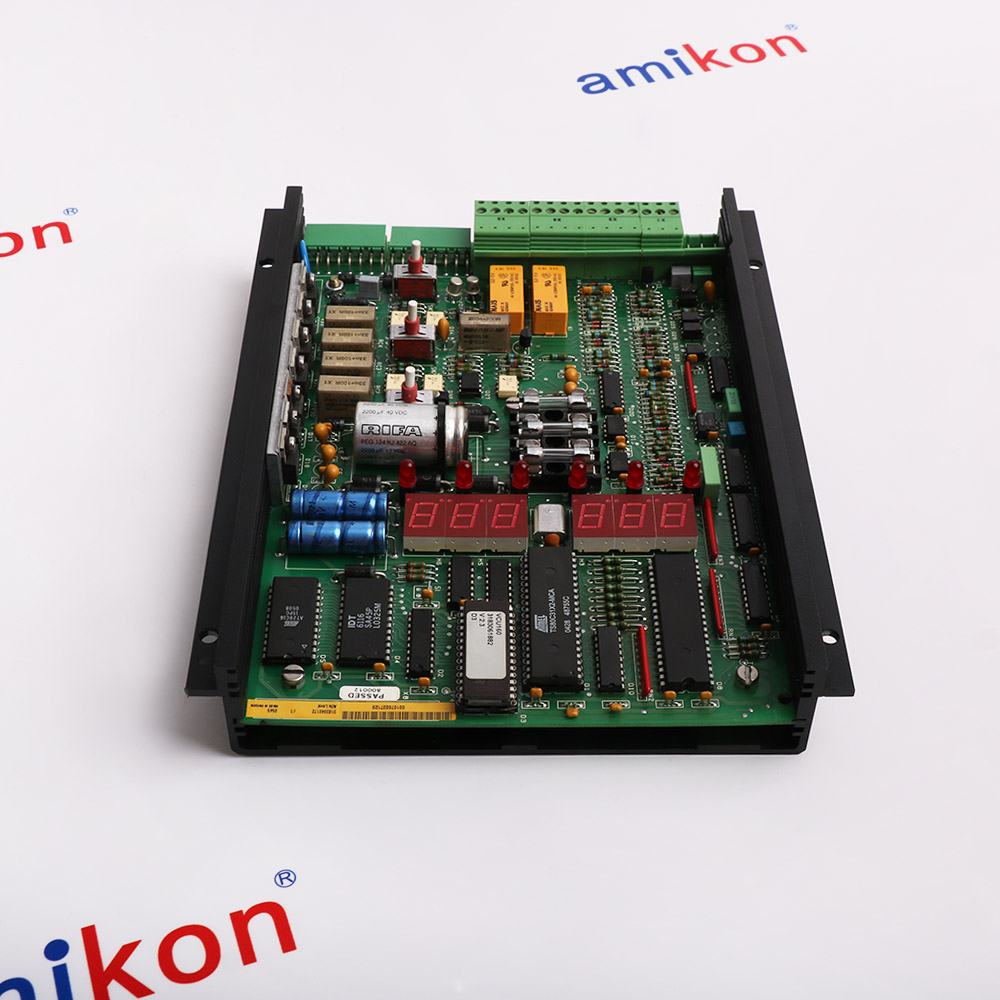

Heatpac Control Module

Manufacturer: Alfa Laval
Model Number: 3183034171
Product Name: Heatpac Control Module
Application: HVAC systems
Input Voltage: Typically 24V DC or 230V AC
Operating Temperature Range: -20°C to +55°C

Control Module

SattControl
EPC-400 Series
Programmable control system
Supports analog 4-20 mA
multiple I/O channels
20°C to +60°C
DIN rail

EPC50 OP Board

EPC50 OP Board

Input Voltage: +24V DC
Operating Temperature: -10°C to +55°C.
Storage Temperature: -20°C to +70°C.
Humidity: Up to 90% RH (non-condensing)
Analog Inputs:4-20 mA

combimass Module

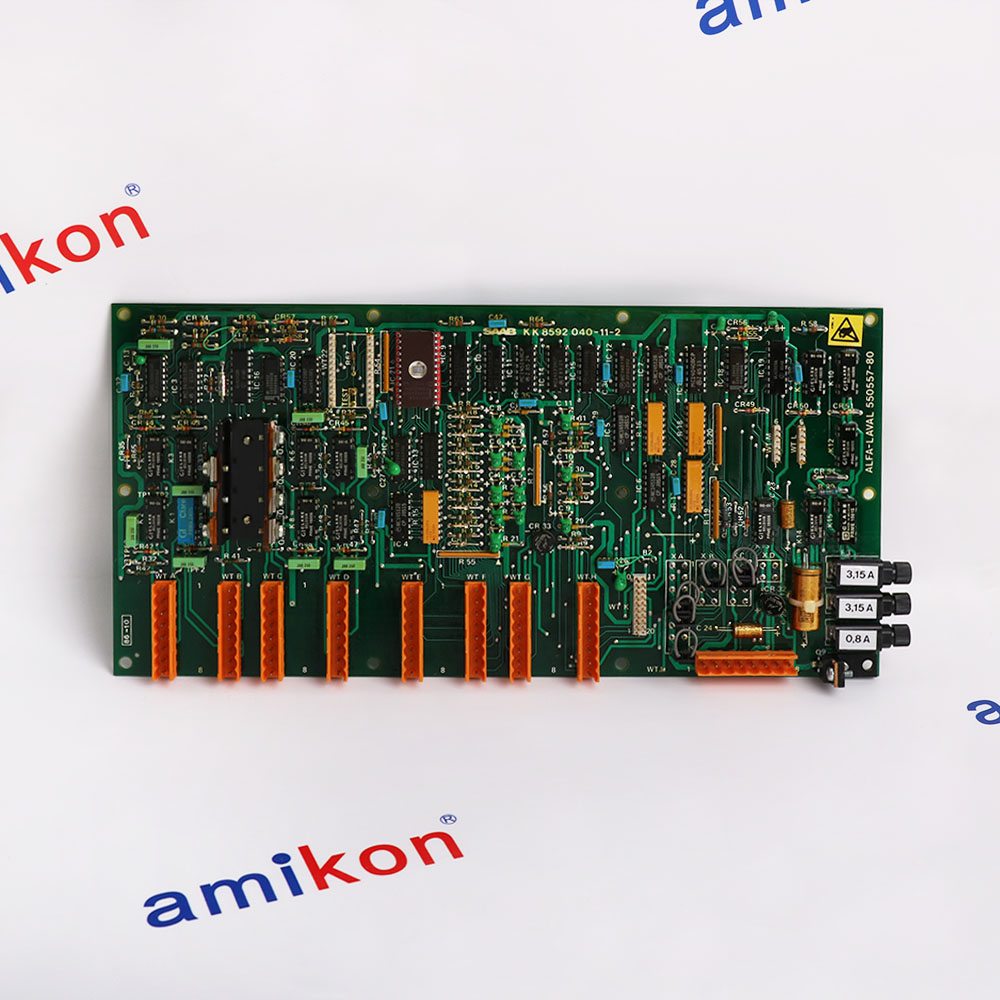

Purifier Printed Circuit Board

Main PCB: 550557-80
Sub-Module/Assembly: MK8592140-012
Microcontroller: ARM Cortex-M series
Input Voltage: 24 V DC (±10%)
Operating Current: ≤2.5 A (typical load)
Communication Protocol: CAN bus or RS-485
8x Digital Inputs (24 V DC)
4x Relay Outputs (5 A, 250 V AC)
2x Analog Inputs (4–20 mA / 0–10 V)
