Woodward

Speed Control Proact Module

WOODWARD 8400-016
Speed Control Proact Module
ACE2000 Electronic Control Engine
Response time: Less than 100 milliseconds

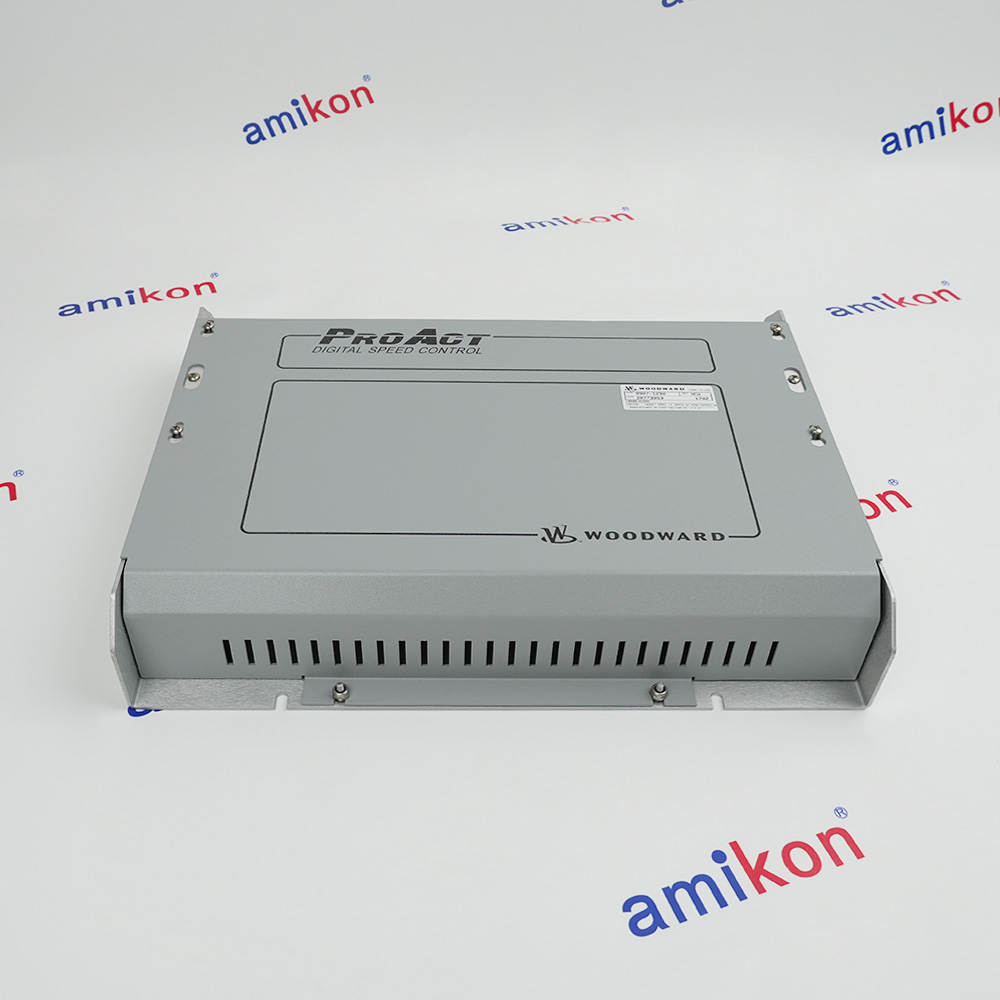

DIGITAL SPEED CONTROL

DIGITAL SPEED CONTROL

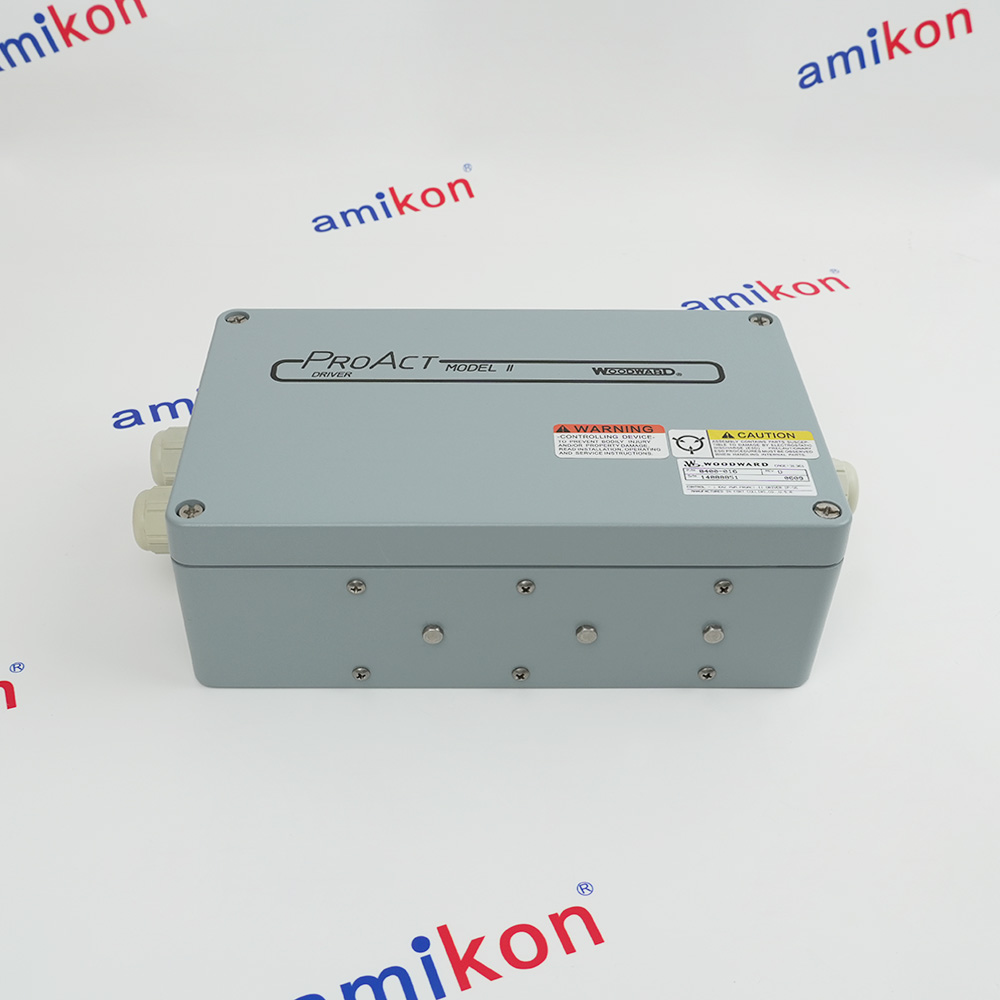

PROACT MODEL II SPEED
W/ HIGH OUTPUT SENSOR CIRCUIT

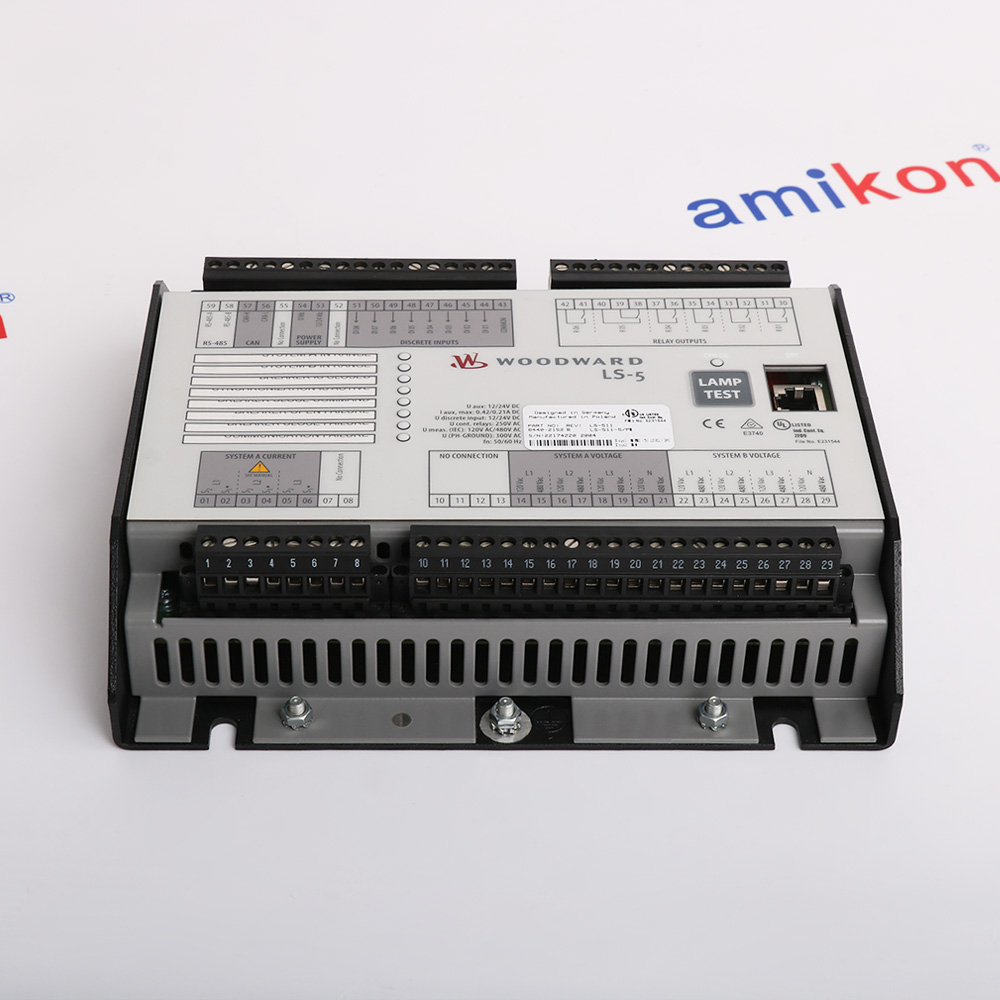

Circuit Breaker Relay Module

 LS-5 Series relays
Power supply:12/24 Vdc
Rated (Vrated):69/120 Vac
Max. value (Vmax):86/150 Vac
Input range:12/24 Vdc (8 to 40 Vdc)
Intrinsic consumption:max.~ 5 W.

Digital Governor Turbine Control

Input Voltage:+24 Vdc at 1 A
Keypad/Display:30 Key Multi-function Keypad
Operating Temperature:–20 to +60 °C
Outputs:2 Actuator Outputs, 8 Relay Outputs
6 Programmable Current Outputs
Slot Type:Supports RS-232, RS-422, and RS-485 hardware
Software Version:OpView™ and 505View
Storage Temperature:–40 to +85 °C

3200 P2 genset control model

Part Number:EasyGen 3200-1
Discrete Input Range:12/24 Vdc
Power Consumption：< .15 W
Power Supply：12/24 Vdc
Operation Temperature:-30 to 80 °C
Storage Temperature:-20 to 70 °C
Humidity:95%, non-condensing
 P/n : 8440-2051

Genset Controller

EASYGEN 3200-5P2
Voltage Monitoring: 50–600 V AC
Current Monitoring: 1–5 A
Frequency Range: 40–70 Hz
Digital Inputs: 16
Digital Outputs: 8
Analog I/O: 4–20 mA/0–10 V DC
Operating Temperature: -40°C to +85°C
Storage Temperature: -50°C to +105°C

CPC-II Current-To-Pressure Converter

PRESSURE REGULATING VALVE CONTROL
ELECTROHYDRAULIC
10 BAR
ZONE 2
SIMPLEX
SINGLE ACTING STEAM TURBINE VALVE SERVO CONTROL
(CPC-II)

Marine CPC Valve

PLC MODULE
Marine CPC Valve
INTERFACE CONTROL
MODBUS
W/ LED INDICATION
SINGLE PORT

Analog current loops at 4-20 mA

Input/Output: 4–20 mA
Resolution: 12–16 bits
Typical Accuracy: ±0.1% of full scale at 25°C.
Temperature Drift: ±0.02% per °C
Voltage: 24 VDC nominal
Power Consumption: ≤5 W
Channel-to-Channel Isolation: ≤1500 VDC
Operating Temperature: -40°C to +85°C (-40°F to +185°F).
Humidity: 0–95% non-condensing.
Vibration Resistance: 5–2000 Hz, 5 g RMS

Analog I/O Module

MICRONET SIMPLEX LV DISCRETE FTM
INPUT VOLTAGE RATING: 27.4 AMP 18-32 VDC
OUTPUT VOLTAGE RATING: 16 AMP 24VDC
POWER SUPPLY INPUT: (18 TO 32) V (DC)
SIGNAL TO ACTUATOR: 0 TO 200 MA
NETWORK ISOLATION: 0–60 HZ: 1000 VRMS

Digital Synchronizer Load Control Module

DSLC MASTER
SYNCHRONIZER AND LOAD CONTROL
MICROPROCESSOR
3PHASE
DIGITAL
IMPORT/EXPORT

SYNCHRONIZING UNIT

Input Voltage:110/220 VAC or 24 VDC
Frequency Range:50 Hz or 60 Hz
Frequency: ±10%
Operating Temperature:-10°C to +60°C (14°F to 140°F)
Storage Temperature:-40°C to +85°C (-40°F to +185°F)
Humidity:5–95% RH

Pm Motor Control

MOTOR CONTROL
220 V AC
PERMANENT MAGNET
SCREW CLAMP TERMINALS

ENGINE MANAGEMENT SYSTEM

ENGINE MANAGEMENT SYSTEM
Pentium® 133 MHz PC
32 MB of RAM
DOS 6.22, Windows® 95
DIGITAL
100 HZ MAX. FREQUENCY
5 V OUTPUT
RS-232 COMMUNICATION PORT

Dual Reader Module

GENERATOR CONTROLLER
ANALOG INPUT: 0-5 VDC OR 4-20 MA DC
DISCRETE INPUTS (16):
5 MA EACH WHEN CLOSED TO SWITCH COMMON
(TERMINAL 65)
MAXIMUM 80 MA TOTAL
POTENTIAL TRANSFORMER INPUT: 150 VAC MAX

Analog I/O Module

Number of Channels: Typically 8 to 16 input channels
Voltage: ±10 V, 0–10 V, or 4–20 mA signals.
Resolution: 12-bit or higher
Accuracy: ±0.1% of full scale or better
Voltage: 0–10 V or ±10 V
Current: 4–20 mA, configurable
Resolution: 12-bit or higher
Power Supply: +24 VDC

Digital Control Module

Type: Digital Control Module
Voltage Input:
Typically operates on 24V DC
Operating Temperature Range:  -40°C to +70°C
Storage Temperature Range: -40°C to +85°C

Micronet Ethernet Module

Series: MicroNet Digital Controllers
Flash Memory: 64 MB
Input Voltage: 110 VAC/125 VDC
Features: 10/100 Base T Ethernet
Maximum Stub Length: 300 mm
Dimensions: 9.50 x 10.50 x 1.00
Model: 10BaseT Ethernet Connector
Potential Voltage Range: 80-150

STEAM TURBINE

TG Turbine Governor - TG-13 Screw Speed Setting, 12 ft-lb Output, 2400-4400 RPM, CW Features:
• Low cost
• Speed droop control
• Weatherproof
• Self-contained sump
• NEMA "A"
• 16 N?m (12 ft-lb) output

Digital Remote Real-Time Network (RTN) Module
