    Overview of Bently Nevada 3500/93 System Display

    2024-09-19 14:44:01
     The Bently Nevada 3500/93 System Display is an advanced interface designed to provide local or remote visual indication of the operational status and protection data from the 3500 Machinery Protection System. This display shows critical information such as system event lists, alarm event lists, and real-time data from channels, monitors, relay modules, Keyphasor modules, and Tachometer modules. Configurable through 3500 Rack Configuration Software, the 3500/93 Display supports up to two displays per rack and offers four mounting options, making it adaptable for various installation needs. It complies with API 670 standards, ensuring reliability for machinery protection applications.

    Features:
    Local or Remote Visual Indication of 3500 Machinery Protection System
    (4) Display Mounting Types
    Up to (2) Displays per 3500 Rack
    The Bently Nevada 3500/93 Series System Display is designed to meet the requirements of American Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including: system event list, alarm event lists and all channel, monitor, relay module, Keyphasor module or Tachometer Module data.

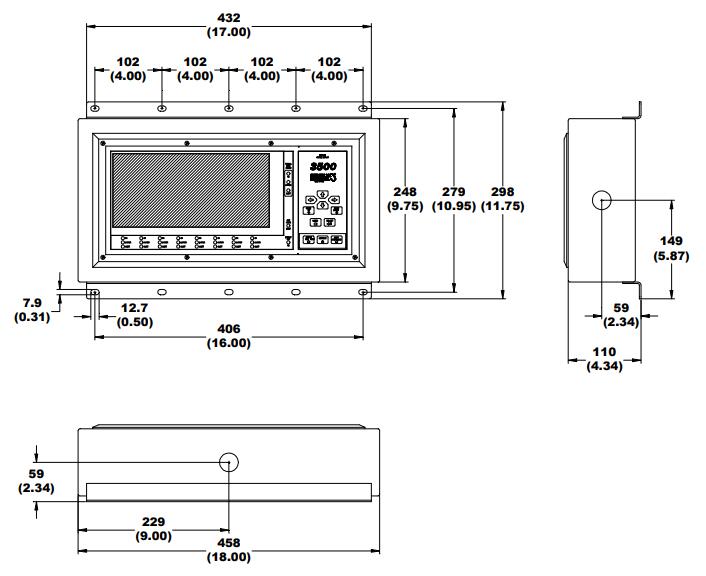

    The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in any of four ways: face mounting, 19-inch EIA rack mounting, panel mounting, and independent mounting.
